Mounting the brackets
Place the bracket on the plates, against the plastic
washers.

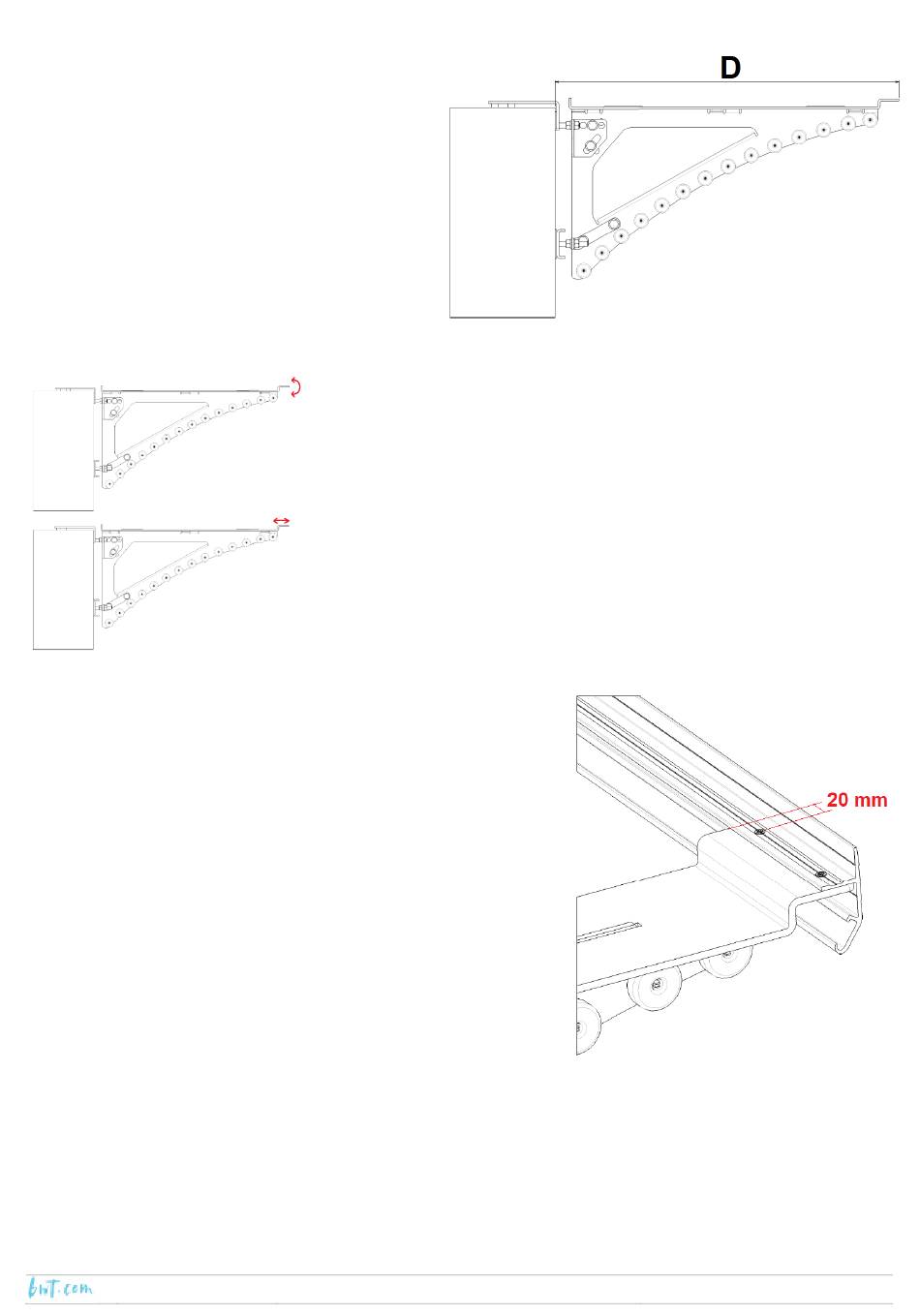

Align the ends of the brackets. So that at least
20 mm of the duckboarding rests on the wall, the
distance D between the wall and the end of the
bracket furthest from the wall should be:
660 mm for 680 duckboarding
‐
810 mm for 830 duckboarding
‐
930 mm for 950 duckboarding
‐
The weight is borne by the brackets and the wall.
To do this, adjust the top and bottom settings:
Put something down (cardboard) between the brackets and the
cover apron to catch shavings.
Mount the profiles on the brackets, mark the holes to be drilled (2
holes per bracket) 20 mm from the edge. A 3mm drill bit is supplied
to drill the finishing profile and the brackets.
Remove the profile and pierce it (Ø4mm – drill bit not supplied), then
replace it on the brackets.
Attach the profiles to the brackets using 3.5x13 screws (supplied).
PROTECTION & SAFETY
Check that the brackets are level, adjust if necessary using the linkages.
Check that all the brackets are parallel, adjust if necessary.
Once adjustments are complete, block the assemblies in position.
2.2.

High water level finishing profile
