Right-hand
Right-hand
side
side

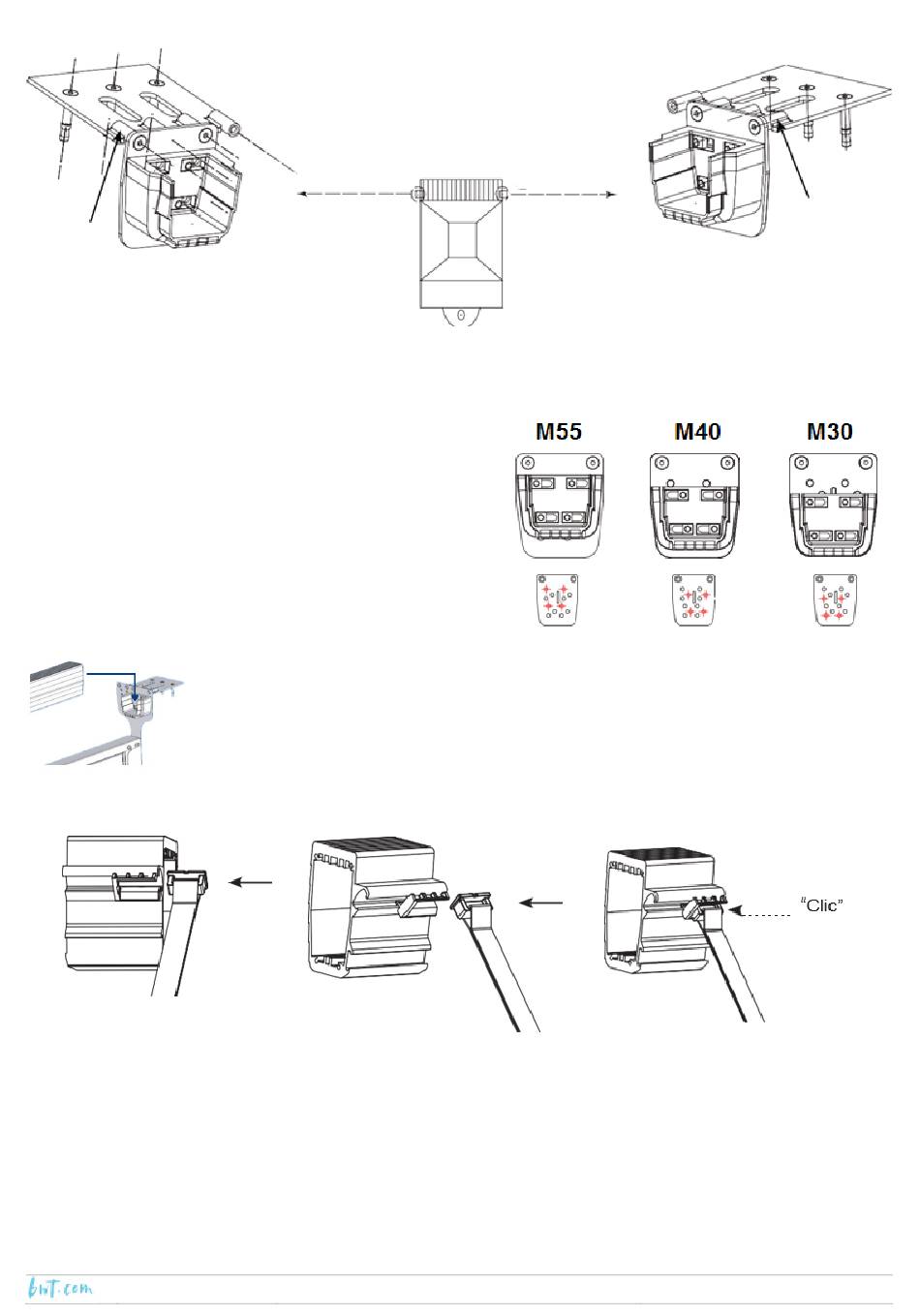

During assembly, use the tapped barrels to advance the beam support plate on each side as far as possible
towards the pool and not towards the duckboarding.
Use the holes that correspond to the height of the coping to
adjust the height of the beam mounting units so that the top
of the beam lies as close as possible to the top of the coping.
Position the beam on the beam support units.
Put the counterweights in position on the beam, clipping the straps to the read of the beam.
PROTECTION & SAFETY
37
2020/06 - Indice de révision : A - Code : 34560
