2.7.

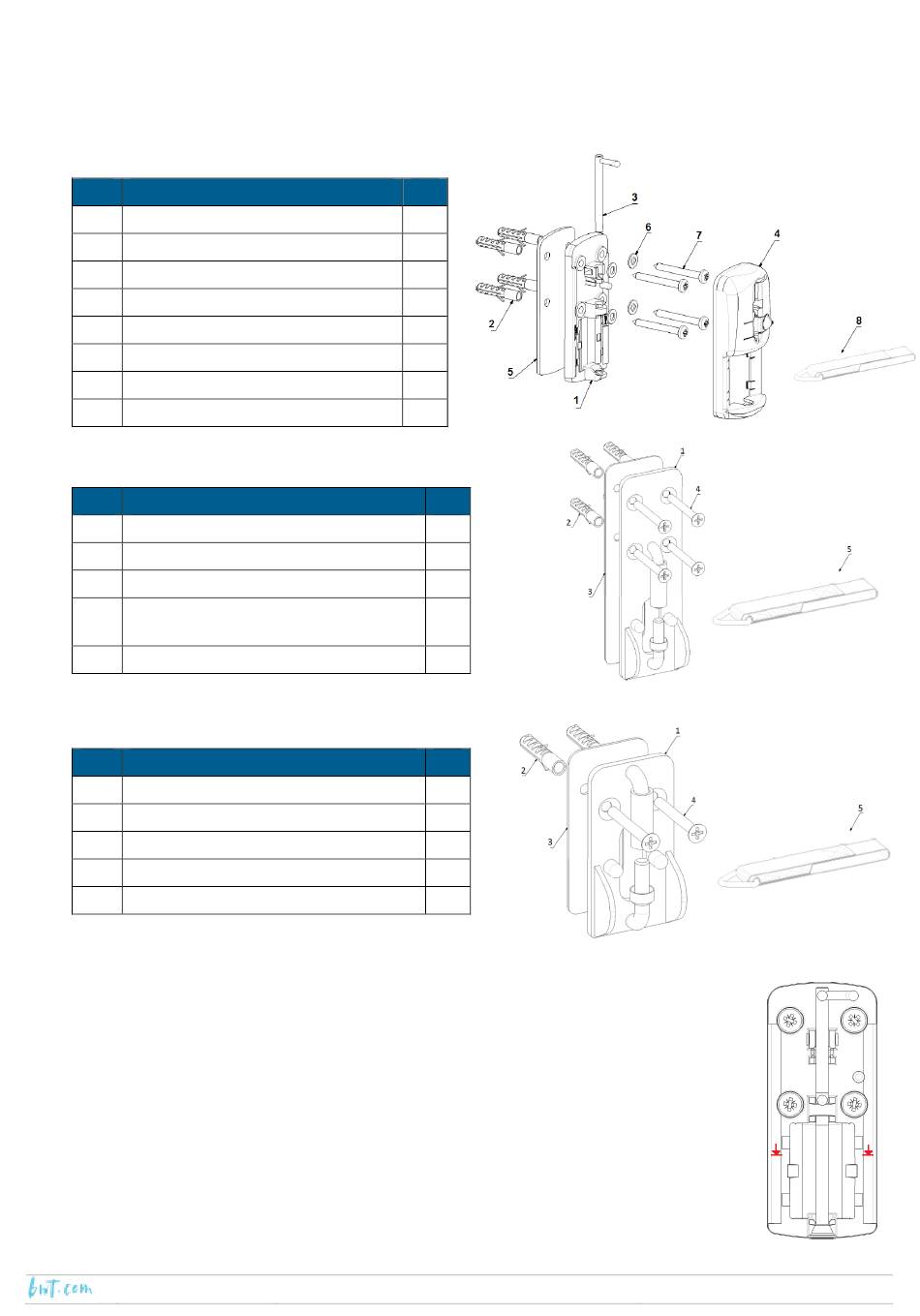

Cover apron safety fasteners

2.7.1.
Version with trim
Ref
1 Fastener frame
2 Nylon S8 bushing
3 SS slide bar
4 Trim
5 Frame gasket
6 Washer Z8
Z cross recess pan head screw ST 5.5x50
7
8 Fastener strap
Stainless steel version
Ref
1 Fastener frame
2 Nylon S8 bushing
3 Frame gasket
4 Pozidrive countersunk screw ST
5.5x50
5 Fastener strap
High water line version
Ref
1 Fastener frame
2 Nylon S8 bushing
3 Frame gasket
Pozidrive countersunk screw ST 5.5x50
4
5 Fastener strap
Installing the fasteners
The fastener straps are already attached to the first two slats of the cover apron.
Attach the fastener frame (1) to the wall opposite the axle exactly opposite the fastener straps
using the pozidrive countersunk screws ST 5.5 x 50. Position the fastener frame such that
the arrow markings coincide with the water level. In the case of liner or reinforced membrane
pools, do not forget to insert the fastener gasket between the fastener frame and the
membrane.
PROTECTION & SAFETY

Wall mounted safety fastener

Description
Description
Description
Qty
1
4
1
1
1
4
4
1
Qty
1
4
1
4
1
Qty
1
2
1
2
1
30 2020/06 - Indice de révision : A - Code : 34560
