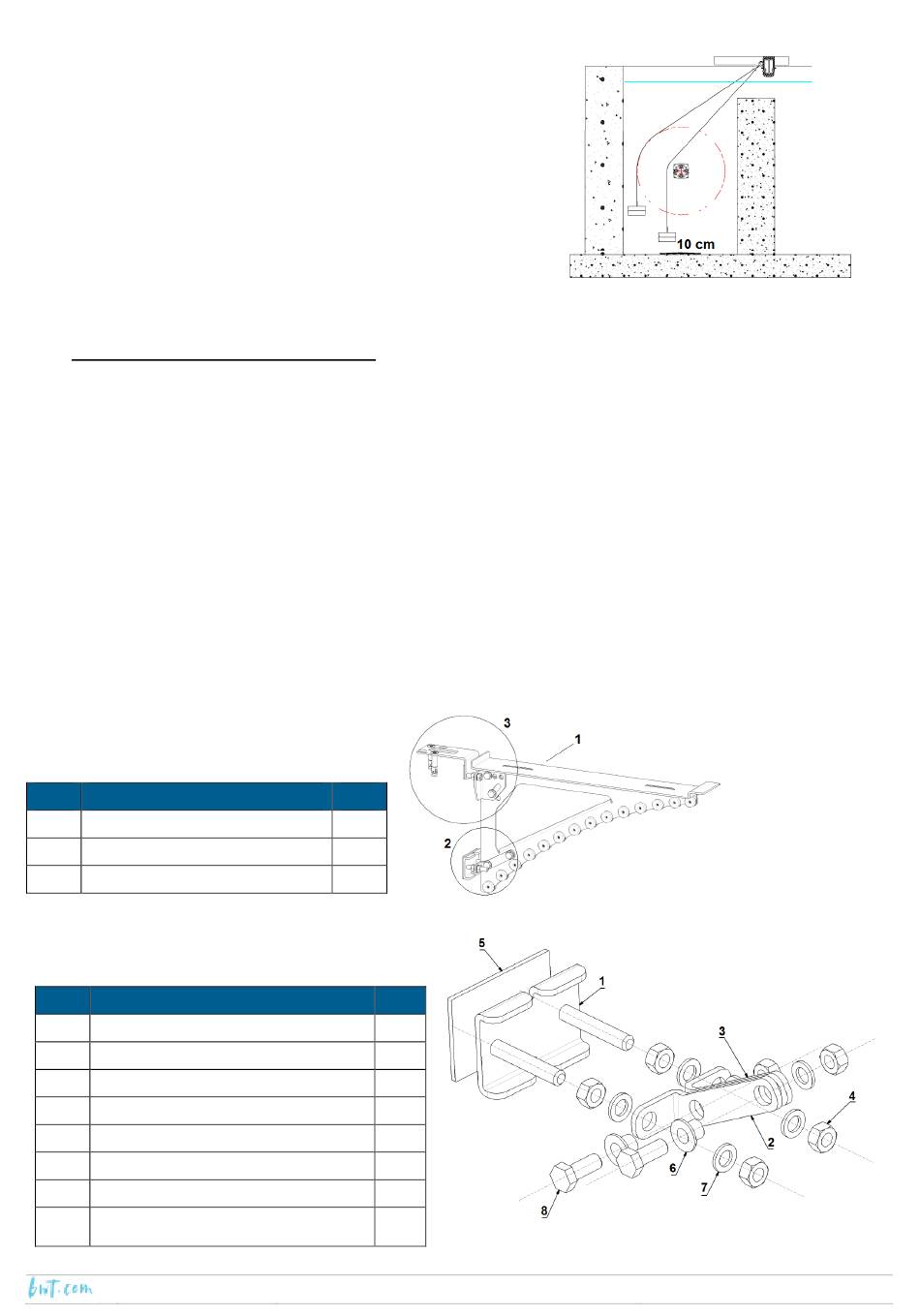

Roll the cover apron out over the water and adjust the
counterweights so that they sit 10 cm above the pool floor.
Validate this position by rolling the cover up: the counterweight
should not touch the cover apron.
2.

High water level bracket

Product description
The high water level bracket allows the water line to be raised (50 mm from the top of the pool wall). This system
is designed for high water level Stardeck, Stardeck AX-IN, Revodeck and Coverdeck AX-IN automatic cover
configurations.
The profile is a finishing trim, it is not designed to bear any kind of weight.
Similarly, do not use the profile as a hand-rail while using the pool.
2.1.

Bracket installation instructions

The pool is filled with water, the cover is rolled up, the coping on the opening side are not laid, in the case of a
pool fitted with a separating pit wall, the copings along the lengths over a distance of approximately 1.50 m from
the cover are not laid.
The aesthetic appearance of the duckboarding pontoon is directly determined by the care taken when installing
the brackets.
Ref Description
1 Bracket
2 Wall support
3 Sealing plate
Wall support assembled in the factory
Ref Description
1 Adjustable SS wall support
2 Lower right-hand linkage
3 Lower left-hand linkage
4 Nut H M12 brass
5 Gasket, 100x70x4
6 Bearing, M12 x15 PA6
7 Washer M12 SS A4
8 Screw H M12x30 SS A4
PROTECTION & SAFETY
Qty
1
1
1
Qty
1
1
1
6
1
2
6
2
38 2020/06 - Indice de révision : A - Code : 34560
