Sub-Coping Mounted Safety Fastener - BWT COVERDECK AX-IN Installation And Maintenance Instructions Manual

2.7.2.
Sub-coping mounted safety fasteners are compatible with thin walled and polystyrene block prefab pools.

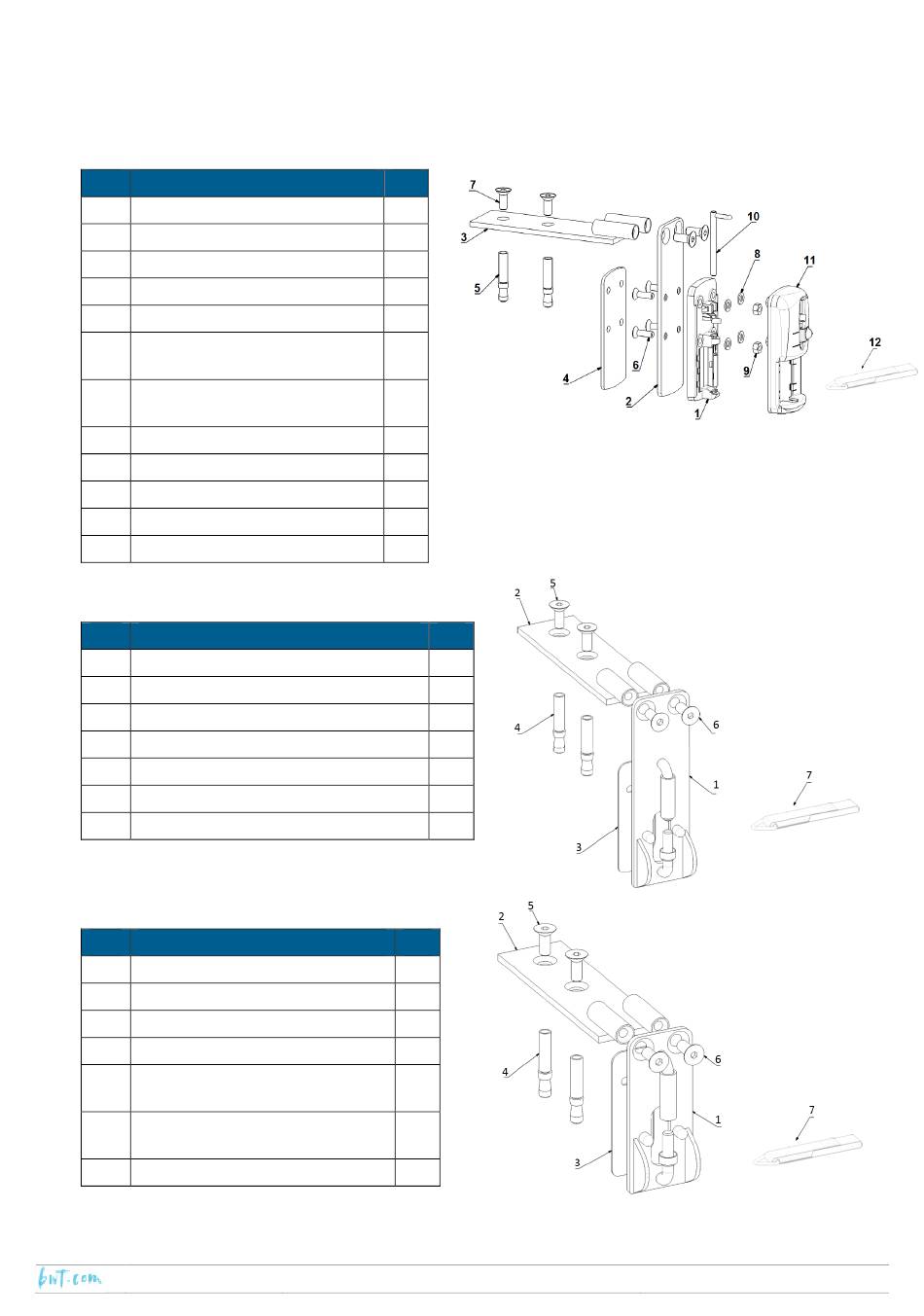

Version with trim
Ref
1 Fastener frame
2 SS plate
3 SS support bracket
4 Fastener gasket
5 Upat M8x50 bushing
6 Countersunk hex socket
screw M6x20 A4 SS
7 Countersunk hex socket
screw 8x20 A4 SS
8 Z 6 A4 SS washer
9 H 6 A4 SS nut
10 Stainless steel slide bar
11 Trim
12 Fastener strap
Stainless steel version
Ref
1 Stainless steel clasp
2 Stainless steel support bracket
3 Frame gasket
4 Upat M8x50 bushing
Countersunk hex socket screw 8x20 A4 SS
5
Countersunk hex socket screw 8x20 A4 SS
6
7 Fastener strap
High water level version
Ref
1 Stainless steel clasp
2 Stainless steel support bracket
3 Frame gasket
4 Upat M8x50 bushing
5 Countersunk hex socket screw
8x20 A4 SS
6 Countersunk hex socket screw
8x20 A4 SS
7 Fastener strap
PROTECTION & SAFETY

Sub-coping mounted safety fastener

Description
Description
Description
Qty
1
1
1
1
2
4
2
4
4
1
1
1
Qty
1
1
1
2
2
2
1
Qty
1
1
1
2
2
2
1
