Recommendations concerning the installation of hasps
2.8.7.
Fixed stainless steel hasp
Drill two Ø 8 mm holes and insert bushing into them. Use the support bracket as a drilling template.
If the pool is fitted with a liner or reinforced membrane, insert the fixed hasp gasket between the plate and the
membrane. Use the pozidrive countersunk screws ST 5.5x50 SS A4 supplied for the installation.

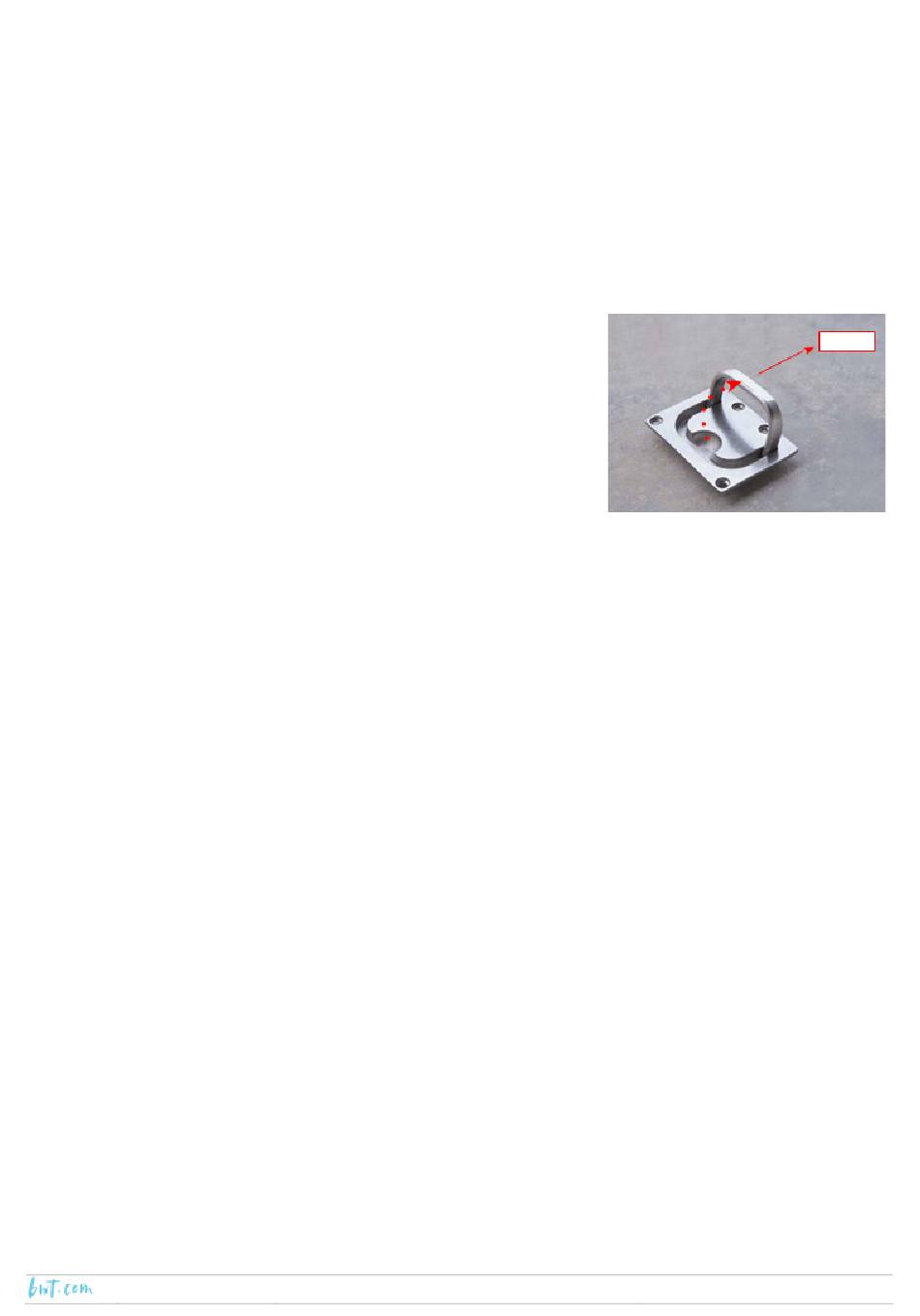

Retractable handle of the collapsible hasp
Orient the retractable handle such that it rises towards the pool (see photo).
Recessed installation: Carve out a recess for the collapsible hasp,
POOL
80 x 60 mm, depth 10 mm.
The hasp may be partially recessed by creating a recess 65 x 45mm,
depth 7 mm.
Drill four holes, Ø 6 mm, using the hasp as a template and insert
bushings.
Use the pozidrive countersunk screws, 3.9x38 SS A4 supplied to fasten
the hasp in position.
Once the length of the strap has been adjusted
The excess length may be cut off. Leave an extra 15 to 20 cm protruding out from the cam buckle. After cutting
the strap, singe the end of the strap slightly to stop it from unravelling.
