Adjustable Strap At The End Of The Pool; Strap Configurations - BWT COVERDECK AX-IN Installation And Maintenance Instructions Manual

Installation of the fasteners
Shape the underside of the coping (A) to accommodate the safety fastener.
Drill through the fastener support bracket (3) Ø 10 mmm - depth 8 mm).
Fix the sub-coping support plate in position using two UPAT M8x50 bushings
and two Countersunk hex socket screws M8x20.
Version with trim: The fastener frame (1) is then mounted on the plate using
four Countersunk hex socket screws M6x20 (6) with Z6 washers (8) and H M6
nuts (9).
2.8.

Adjustable strap at the end of the pool

French regulations require the installation of closing straps.
Do not forget to release the straps before rolling the cover up, failure to do so could cause
significant damage.
2.8.1.
Overflow pool with buffer tank
Overflow pool without buffer tank
To protect the leaktightness of the waterproofing finish, use straps with a fixed, stainless steel hasp. Install an
adjustable strap opposite each of the cover apron's safety straps.
PROTECTION & SAFETY
CAUTION

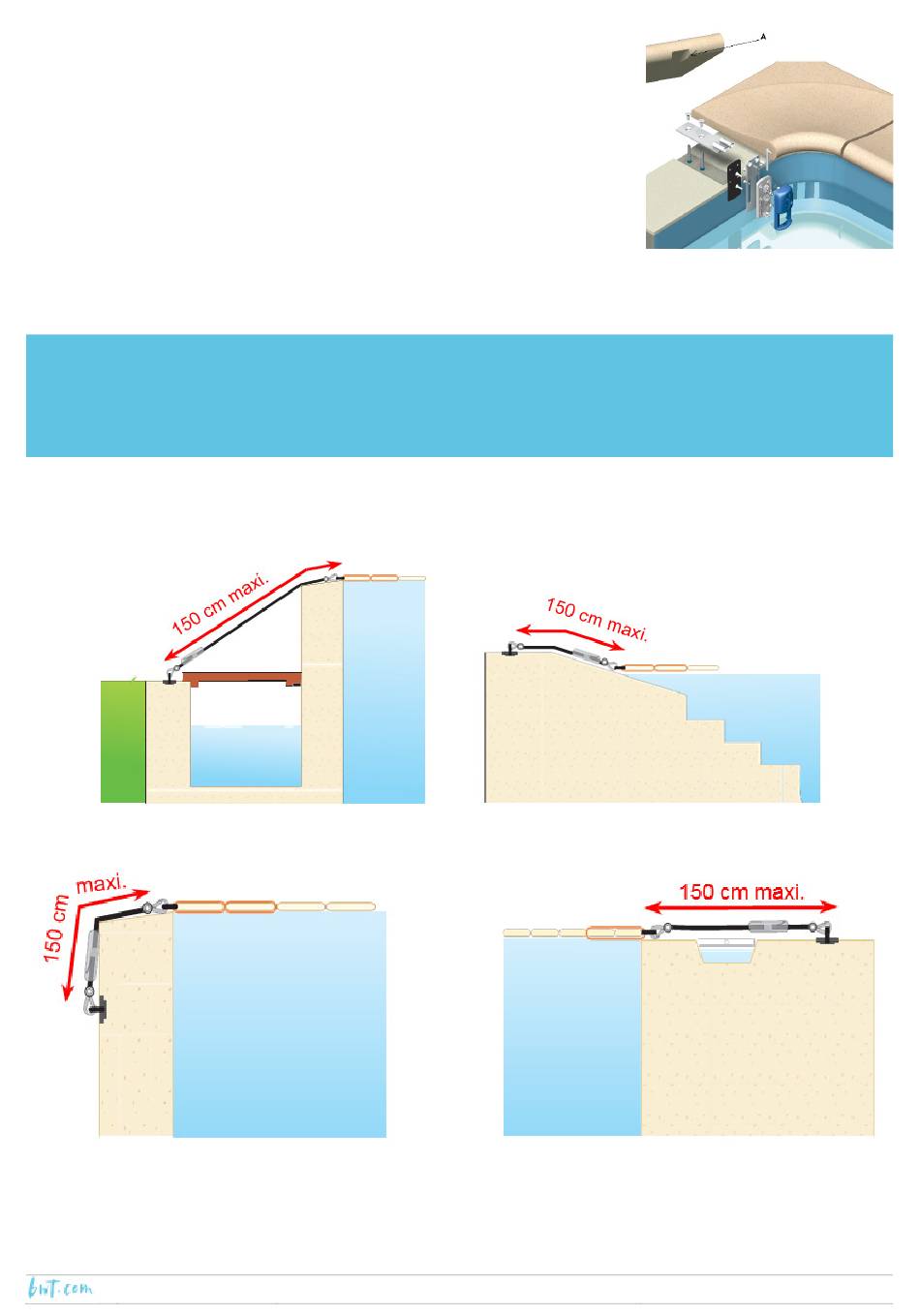

Strap configurations

Pool with beach entry deck
Overflow pool with drain
