4.

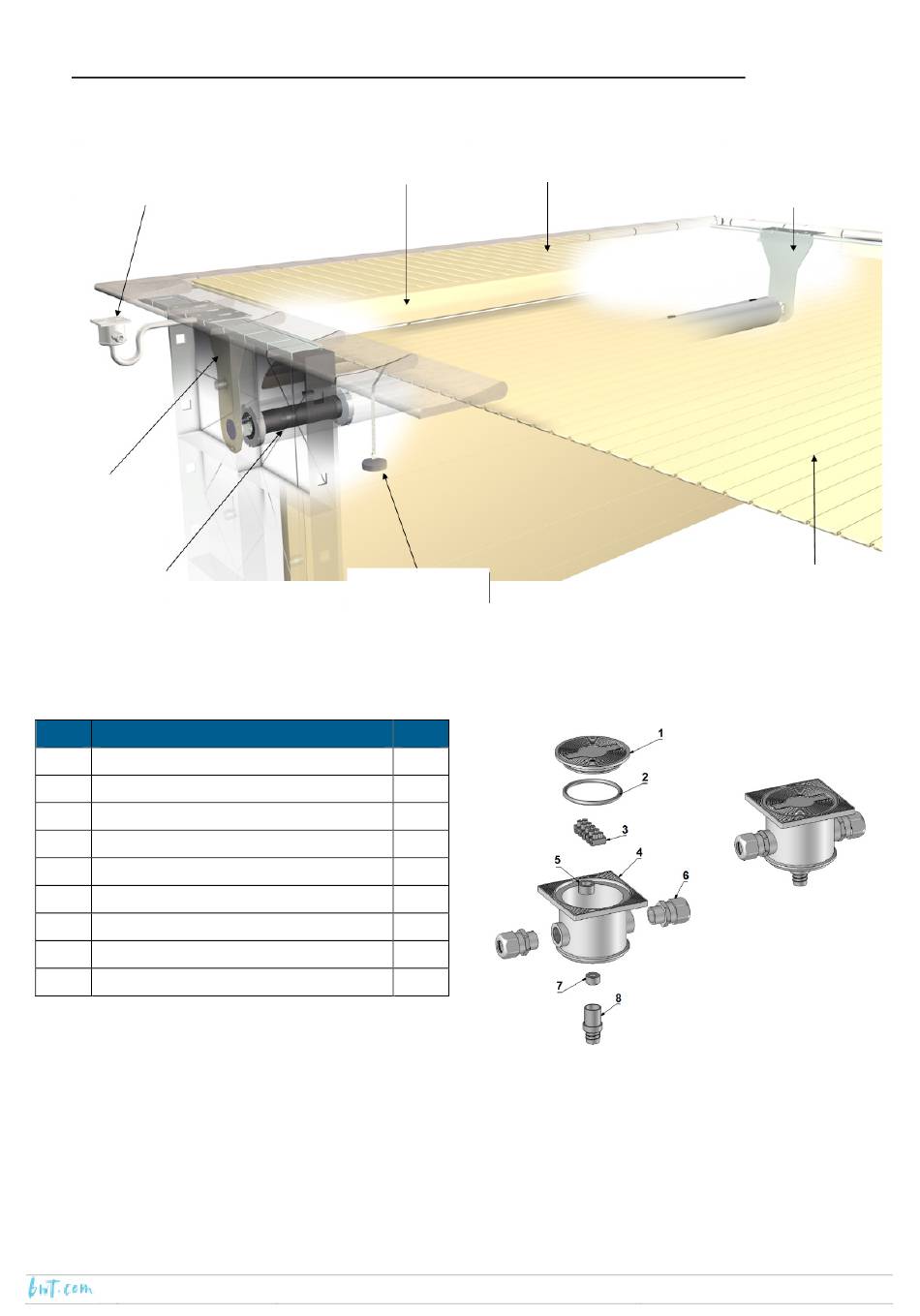

Preparation before installing the mechanical assembly

Coverdeck AX-IN standard water level

Deck box

Flange –
motor side
Motor
integrated into
the axle
4.1. Deck box
Ref Description
1 Deck box lid
2 O-ring Ø72.4x5.3
3 Terminal block 10 mm²
4 Deck box body
5 Cable gland seal (signal cable)
6 Cable gland
7 PARA seal Ø20x9 thickness 10mm
8 Hose tail
- Corrugated sheath, 1m
Glue the hose tail into the bottom of the connection deck, then push the sheath onto the hose tail.
PROTECTION & SAFETY
Duckboarding
Beam
Counterweight
Qty
1
1
1
1
1
2
1
1
1
10
Flange –
bearing side
Slat apron
2020/11 - Version: B - Code : 34561
