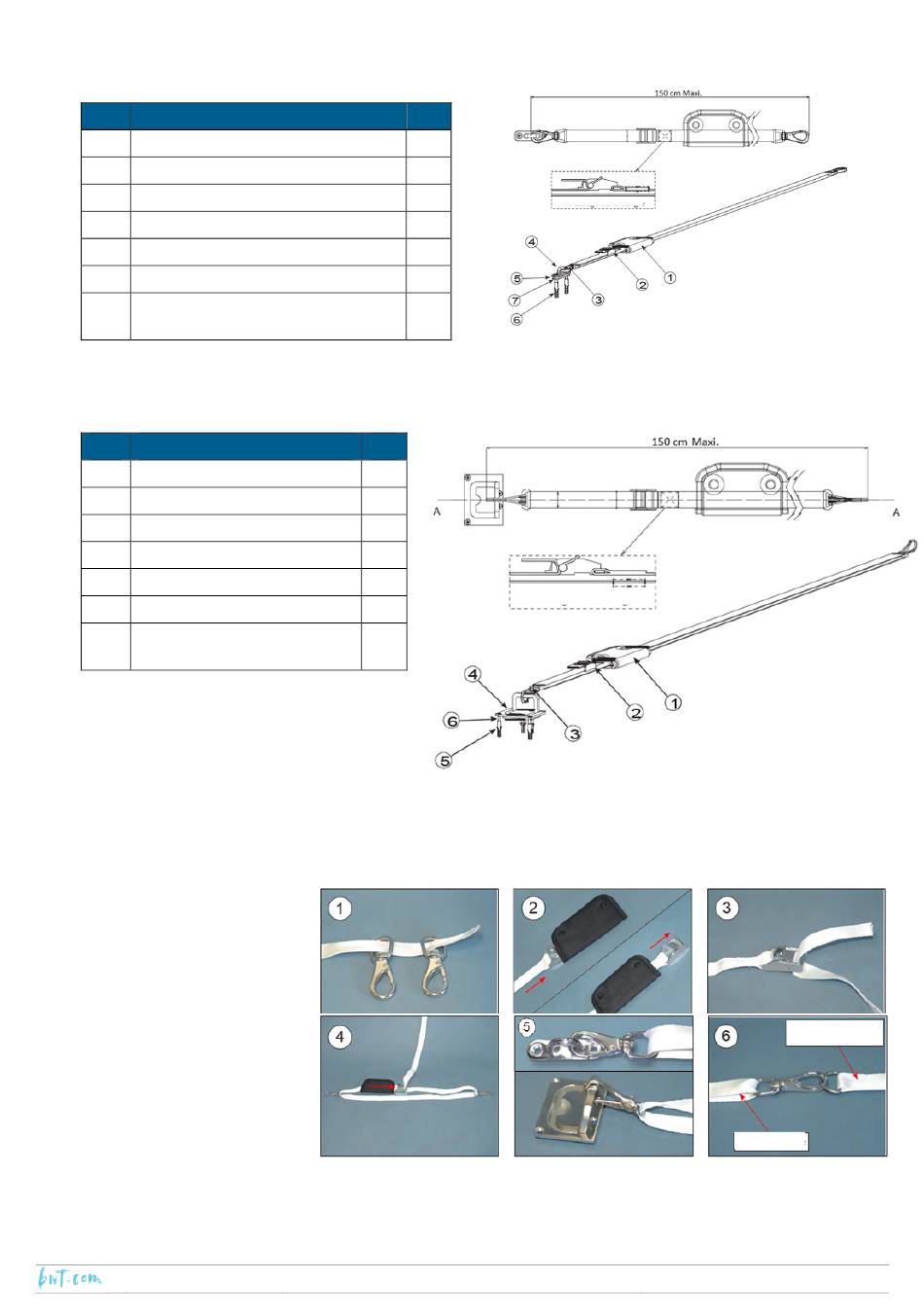

Stainless Steel, Fixed Hasp Fastener; Stainless Steel, Collapsible Hasp Fastener; Attaching The Strap To The Hasp - BWT COVERDECK AX-IN Installation And Maintenance Instructions Manual

2.8.2.
Ref
1 Protective sleeve
2 Strap and cam buckle
3 Hinged stainless steel carabiner
4 Fixed hasp
5 Fixed hasp gasket
6 Nylon S8 bushing
7 Pozidrive countersunk screw
ST 5.5x50 SS A4
2.8.3.
Ref Description
1 Protective sleeve
2 Strap and cam buckle
3 Hinged SS carabiner
4 Collapsible hasp
5 Hasp gasket
6 Nylon S 6x30 bushing
7 Pozidrive countersunk
screw 3.9x38 SS A4
2.8.4.
1-Thread the strap through the
carabiner loops.
2-Slide the cam buckle through the
sleeve and pull it out the other side.
3-Thread the end of the strap
through the cam buckle catch.
4-Arrange the assembly as shown
after it has been adjusted to the
correct length. Slide the black
sleeve over the cam buckle.
5-Attaching a carabiner to a fixed
or collapsible hasp.
6-Attaching a carabiner to the strap on the first slat of the cover apron.
PROTECTION & SAFETY

Stainless steel, fixed hasp fastener

Description

Stainless steel, collapsible hasp fastener

Qty
1
1
1
1
4
4
4

Attaching the strap to the hasp

Qty
1
1
1
Strap threading
1
4
4
4
Strap threading
33
Strap threading on the
first slat of the apron
Adjustable strap
