Mount the shoe on the flange (refer to the location of the shoe in relation to the height of the coping in the
paragraph describing the beam). The shoe must be fastened to the flange offset to the pool side and not the pit
side.
Mount the sub-coping support plate on the pit wall flange.
Fasten the sub-coping support plate/flange assembly in position using Upat M8 bushings.
Proceed with installation on the right-hand side in a symmetrical manner.
3.
Assembling the separating pit wall
Avoid assembling the pit wall on very windy days.
3.1.
Straight wall

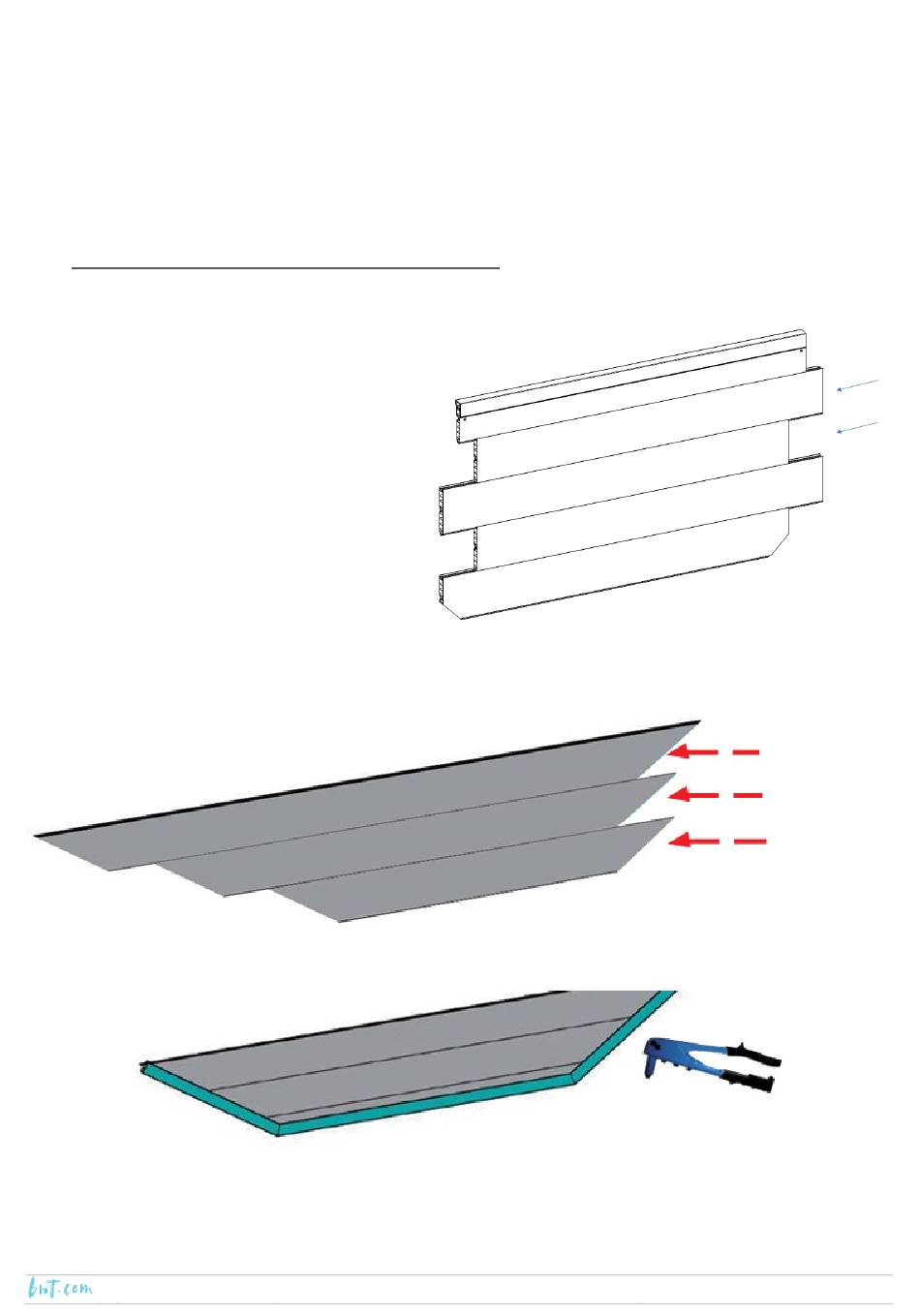

The various panels fit together by a tongue and
groove mechanism (sliding). Orient the panels
such that the notch faces the cover pit for aesthetic
purposes.
3.2.
Trapezoïdal
In the event that your pit wall includes a lower trapezoidal section, assemble it as follows:
Slide the various panels together.
Fasten the finishing trim to the pit wall using Aluminium rivets.
