1.
Product description
2.
Mounting the flanges - Coverdeck
Ref
1
Sub-coping support plate
2
Upat bushing M8 x 50 SS A4
3
Countersunk hex socket screw M8 x 20 SS
A4
4
Separating pit wall mounting flange, RH and
LH
5
Countersunk hex socket screw M8 x 16 SS
A4
6
Beam support shoe
7
Nut Q8 SS A4
8
Countersunk hex socket screw M8 x 20 SS
A4
9
Separating pit wall profile, LH and RH
Installation is identical to that of a Coverdeck beam and
mounting unit, except that separating pit wall mounting
flange is inserted between the sub-coping support plate
and beam support shoe instead of the beam mounting
plate.
PROTECTION & SAFETY

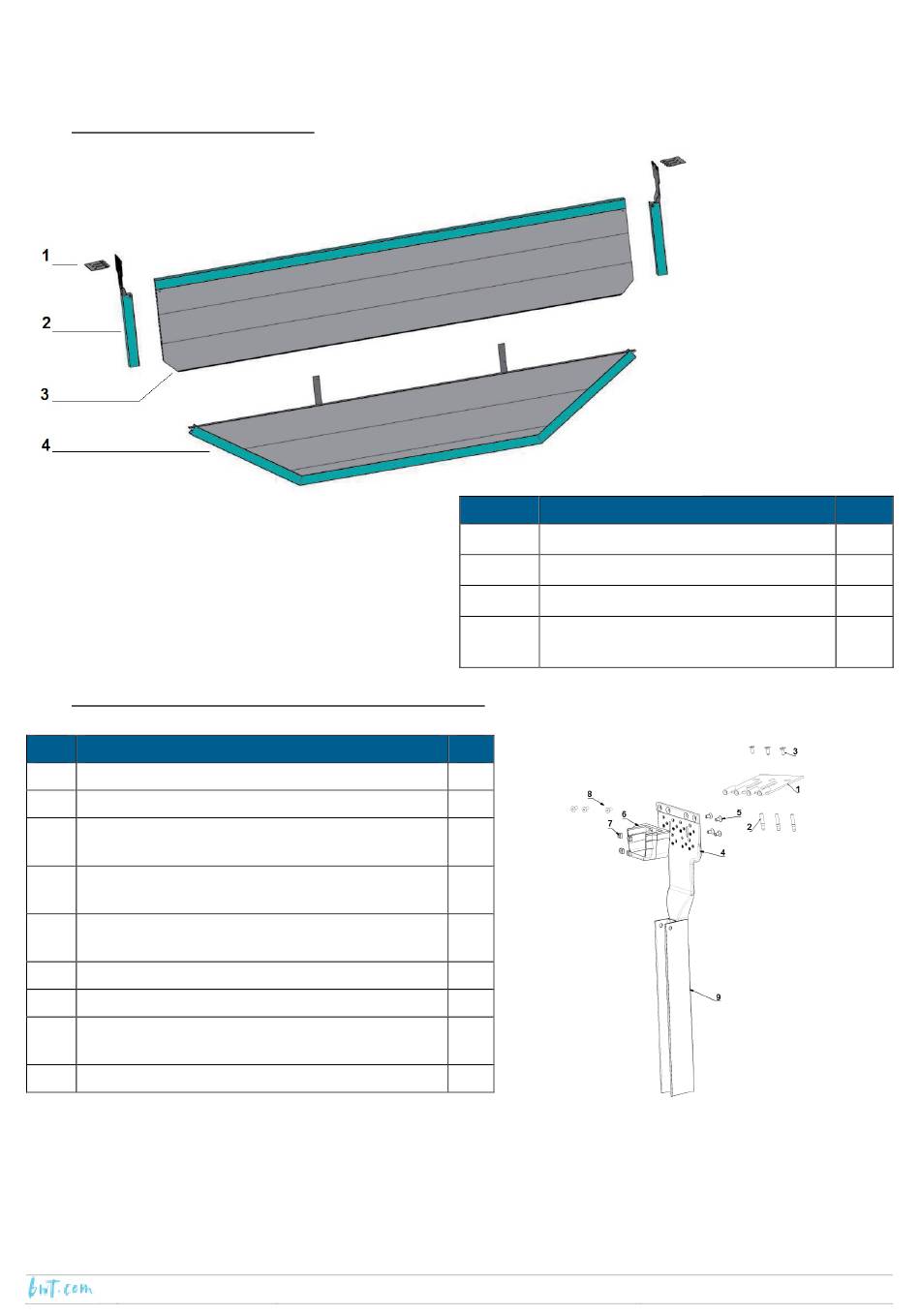

SEPARATING PIT WALL
Description
Ref
1
Sub-coping support plate
2
Pit wall mounting flange
3
Straight separating pit wall
4
Separating pit wall cut to fit shaped
walls (e.g. trapezoidal)
Qty
2
6
6
2
8
2
8
6
2
23
Description
2020/06 - Indice de révision : A - Code : 34560
Qty
2
2
1
1
