Beam; Beam And Counterweight; Coverdeck Beam Mounting Unit With Sub-Coping Sealing Plate - BWT COVERDECK AX-IN Installation And Maintenance Instructions Manual

Product function
Hold and support the duckboarding.
Bear the weight of a person.
Guide the slat apron during opening and closing.
Correct minor masonry flaws.
Compliance with standards
Complies with the standard NF P90-308
Restrictions of use
The pool must comply with the stipulations of the AFNOR AC P90-321 agreement in terms of position tolerance.
The beams and brackets are compatible with Coverdeck automatic covers.
The beams and brackets are intended to support standard duckboarding from Procopi:
Duckboarding 680x500
‐
‐ Duckboarding 830x500
Duckboarding 950x500
‐
Safety recommendations and advice
Respect the assembly instructions.
The beams and brackets are designed to bear the weight of a person.
The gaps between the wooden duckboarding modules should be evenly distributed and less than 8 mm, as
required by the standard NF P90-308: Safety covers and fastening mechanisms.
1.

Beam and counterweight

1.1.

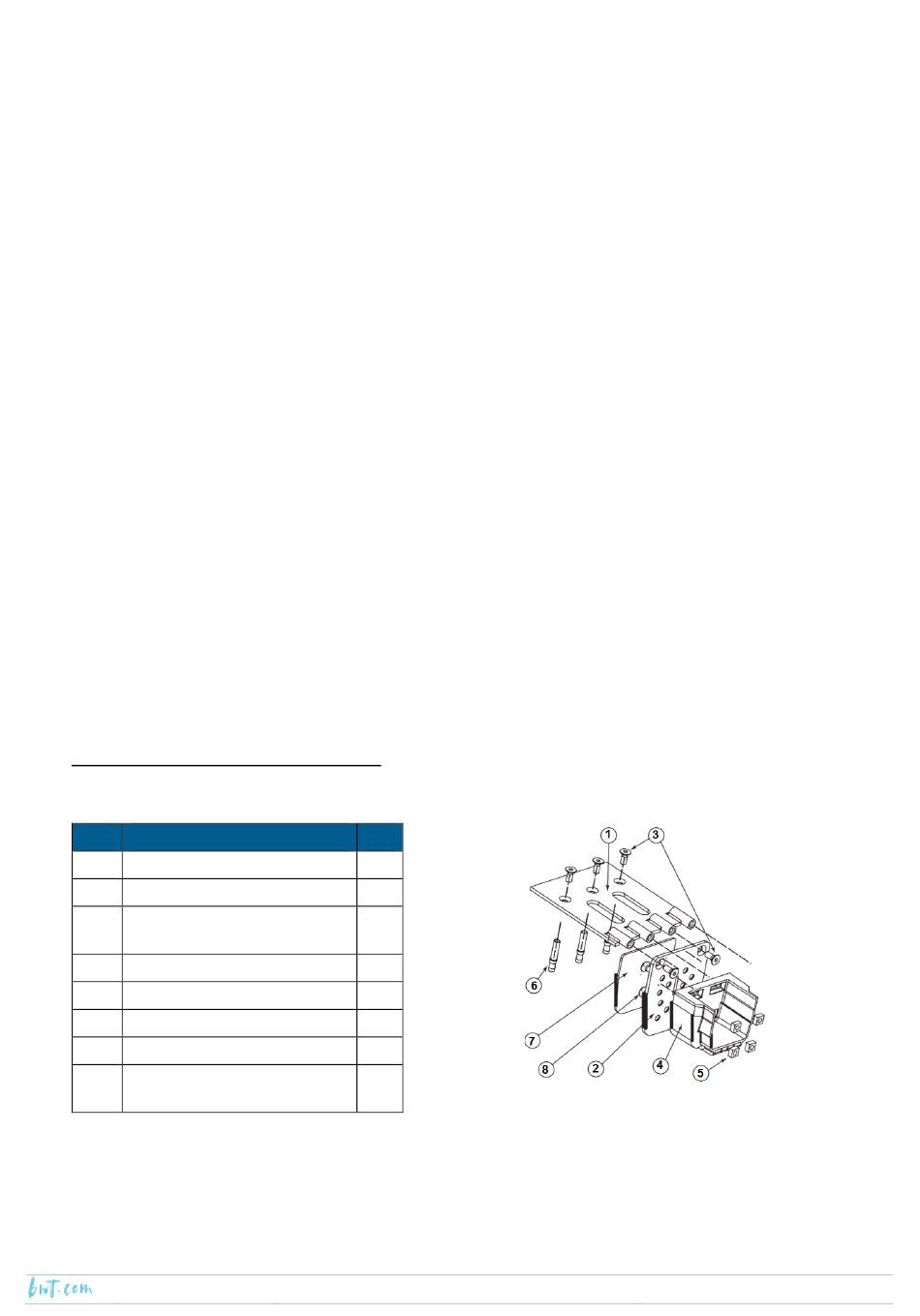

Coverdeck beam mounting unit with sub-coping sealing plate

Ref Description
1 Sub-coping support plate
2 Beam mounting plate
3 Countersunk hex socket
screw M 8x20 A4 SS
4 Beam support shoe
5 Nut Q 8 A4 SS
6 Nylon bushing S 6x30
7 Adhesive gasket
8 Countersunk hex socket
screw M 8x16 A4 SS
*2 extra screws per mounting unit if the
pit wall option is not selected
PROTECTION & SAFETY

BEAM

Qty
1
1
5
1
4
3
1
4*
