2.3.6.2

Supervised for open

When configured as supervised for open, the active state is 'closed' (short). Open

supervision uses a single 47K ohm resistor.

Note:

2.3.6.3

Supervised for short

When configured as supervised for short, the active state is either 'open' or

'short'. A single 47K ohm resistor is required for short supervision.

Note:

2.3.6.4

Supervise for open and short

When configured as supervise for both 'open' and 'short', the active state cannot

be open, therefore the active state is closed.

TX3-CX Card Access System Installation and Operation Manual

24 (56)

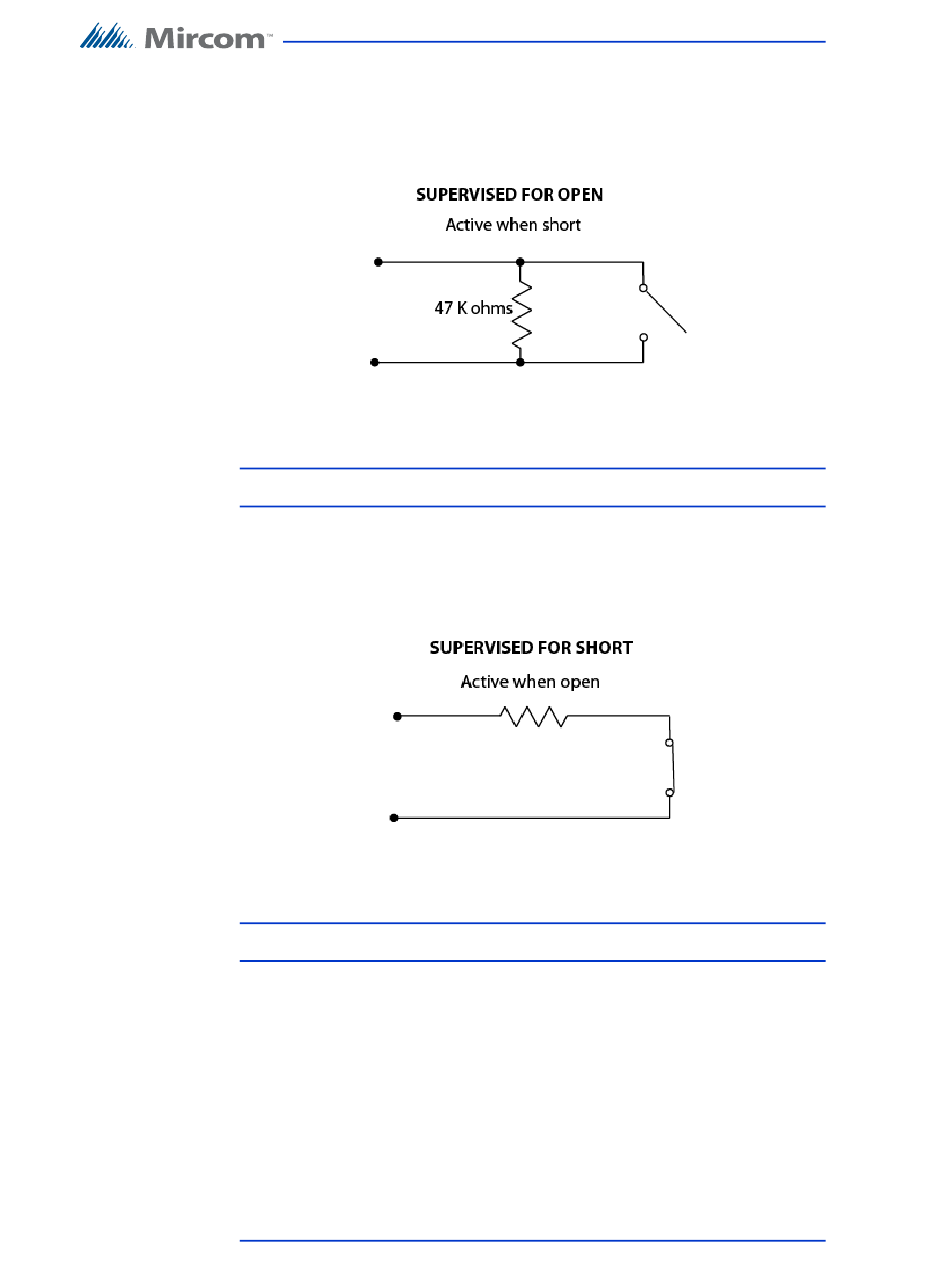

Figure 11. Input - Supervised for Open

The active state cannot be an open state.

The active state cannot be a short state.

Installation and Setup

Version 1.00.3
