Card Reader Connection; Figure 16. Card Reader Connections; Figure 17. Controller Board Card Reader Connectors - Mircom TX3 Series Installation And Operation Manual

•
2.5.2

Card Reader Connection

Connect the readers to the terminals on the bottom left side of the card access
board as shown in Figure 16 and Figure 17.
Beeper
Red LED
Green LED
Power +
Com(-)
Data 0
Data 1
Note:
RED GRN
BEEPER LED LED PWR+
Yel Brn
TX3-CX Card Access System Installation and Operation Manual
28 (56)
Copyright 2009
maximum 500 feet distance from the card reader and the controller use
20 AWG wire and for 250 feet use 22 AWG
Yel
N/A
Brn
Red
Blk
Grn
Wht

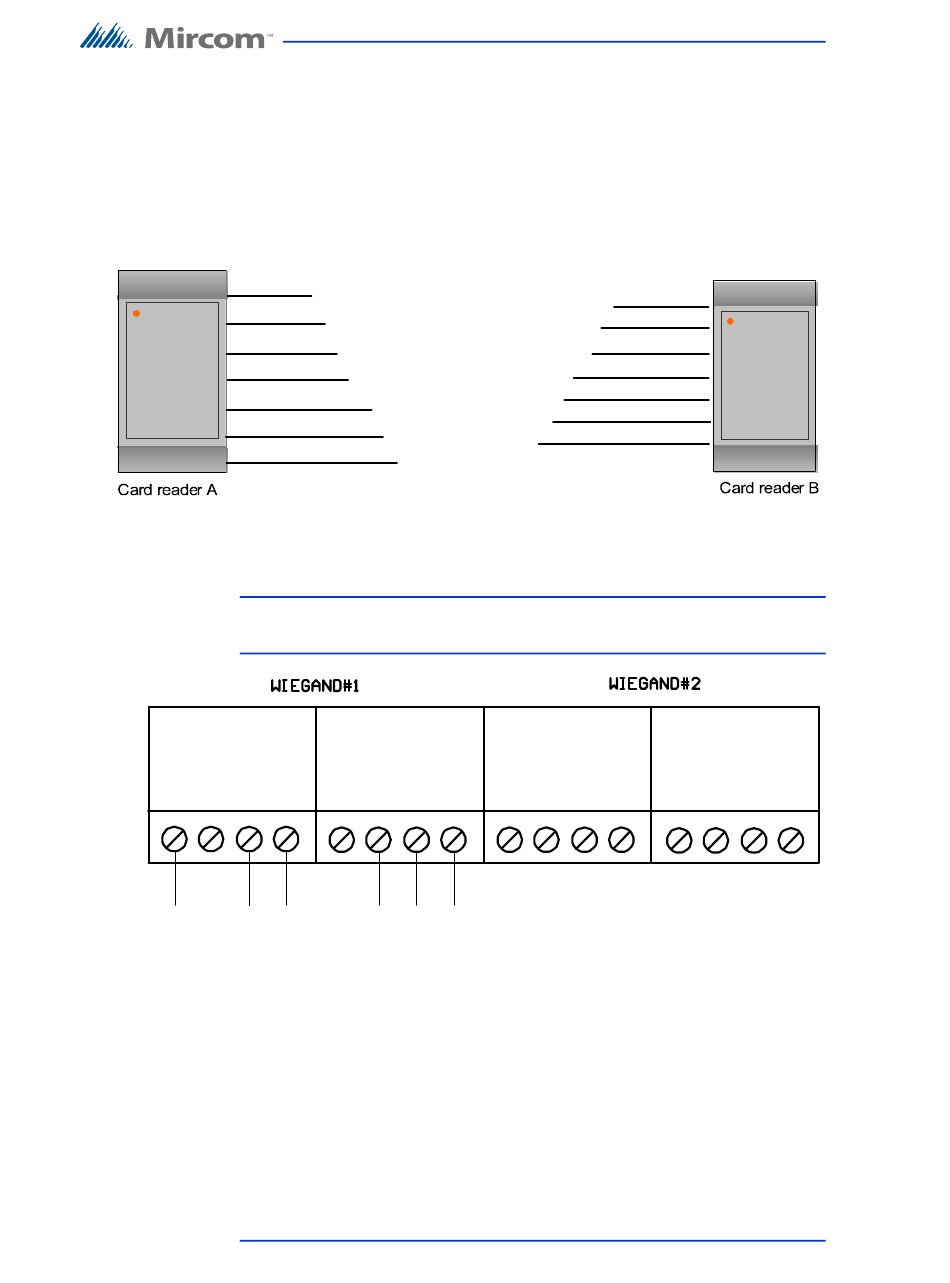

Figure 16. Card Reader Connections

The card reader COM (-) wire can be connected to either COM (-)
connector on the terminal block.
DATA 0
COM(-)
COM(-)
DATA 1
Red Grn Wht Blk

Figure 17. Controller Board Card Reader Connectors

Data 1
Wht
Data 0
Grn
Com(-)
Blk
Power +
Red
Green LED
Brn
Red LED
N/A
Beeper
Yel
RED GRN
COM(-)
BEEPER LED LED PWR+
Installation and Setup
DATA 0 COM(-)
DATA 1
