Handicap lock for reader A or B. This output controls the handicap access
door. Access is granted to cards with handicap privileges.
General purpose output. The general purpose output is for all other types of
outputs, such as turning on a light.
2.4.2

Active state

Outputs require active states. Each output is configured for the active state to one
of the following:
•
•
In the energized active state the normal state is de-energized and vice-versa.
2.4.3

Outputs 1 to 6

Outputs 1 to 6 are relay contact programmable outputs with the following
characteristics. Figure 14 shows a sample connection.
•
•
•
TX3-CX Card Access System Installation and Operation Manual
26 (56)
Copyright 2009
energized
de-energized
normally open (NO)
normally closed (NC) available
30 Vdc rated, 2 Amperes
Door Strike 1
Maglock 1
External
power
supply
NC C NO NC C NO NC C NO NC C NO NC C NO NC C NO
OUTPUT 1 OUTPUT 2 OUTPUT 3

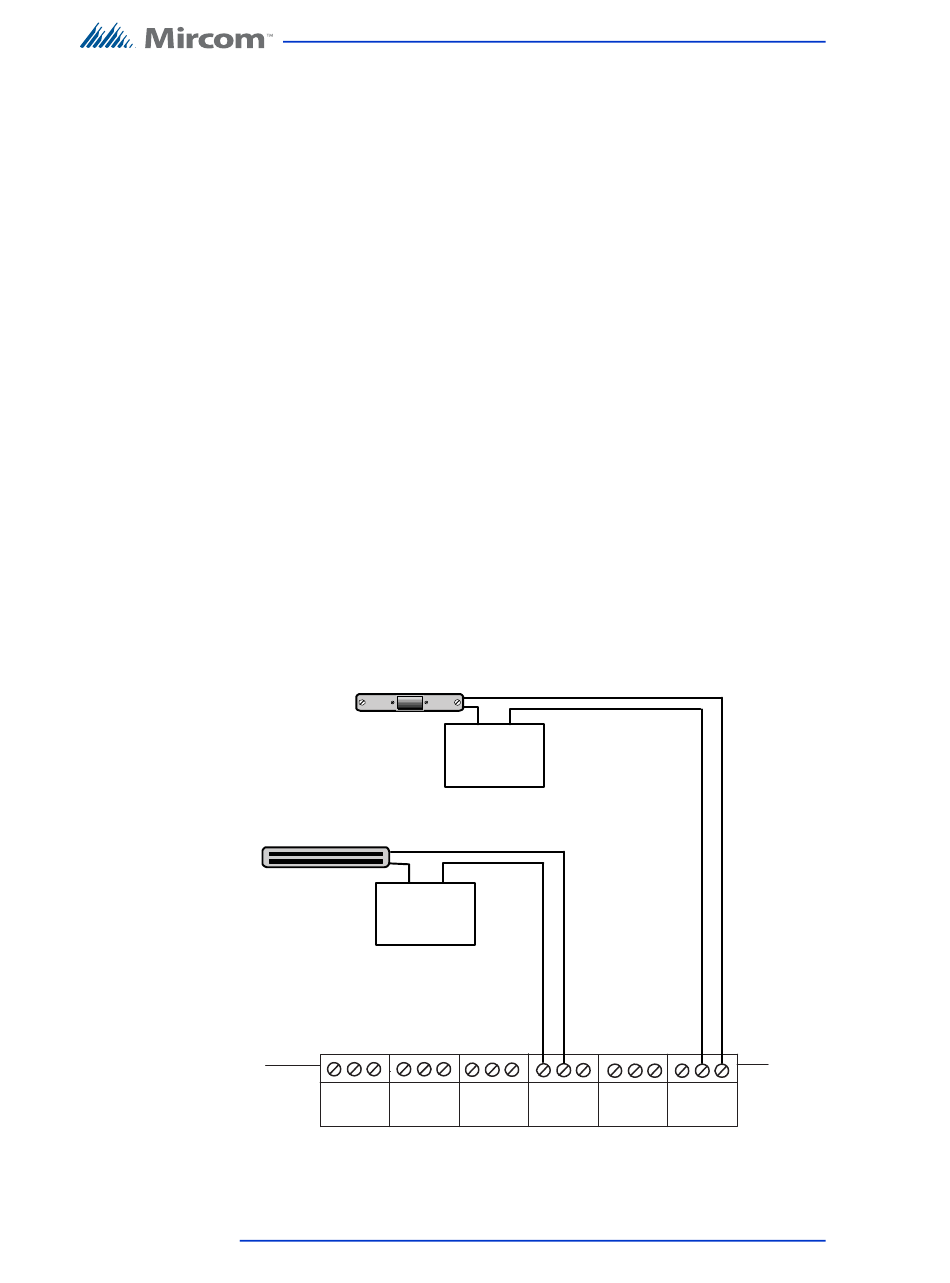

Figure 14. Controller Output Terminal Sample Connections

External
power
supply
Common
Normally Common
Closed
OUTPUT 4 OUTPUT 5
Installation and Setup
Normally
Open
OUTPUT 6
