1: Cycle-by-cycle Mode.

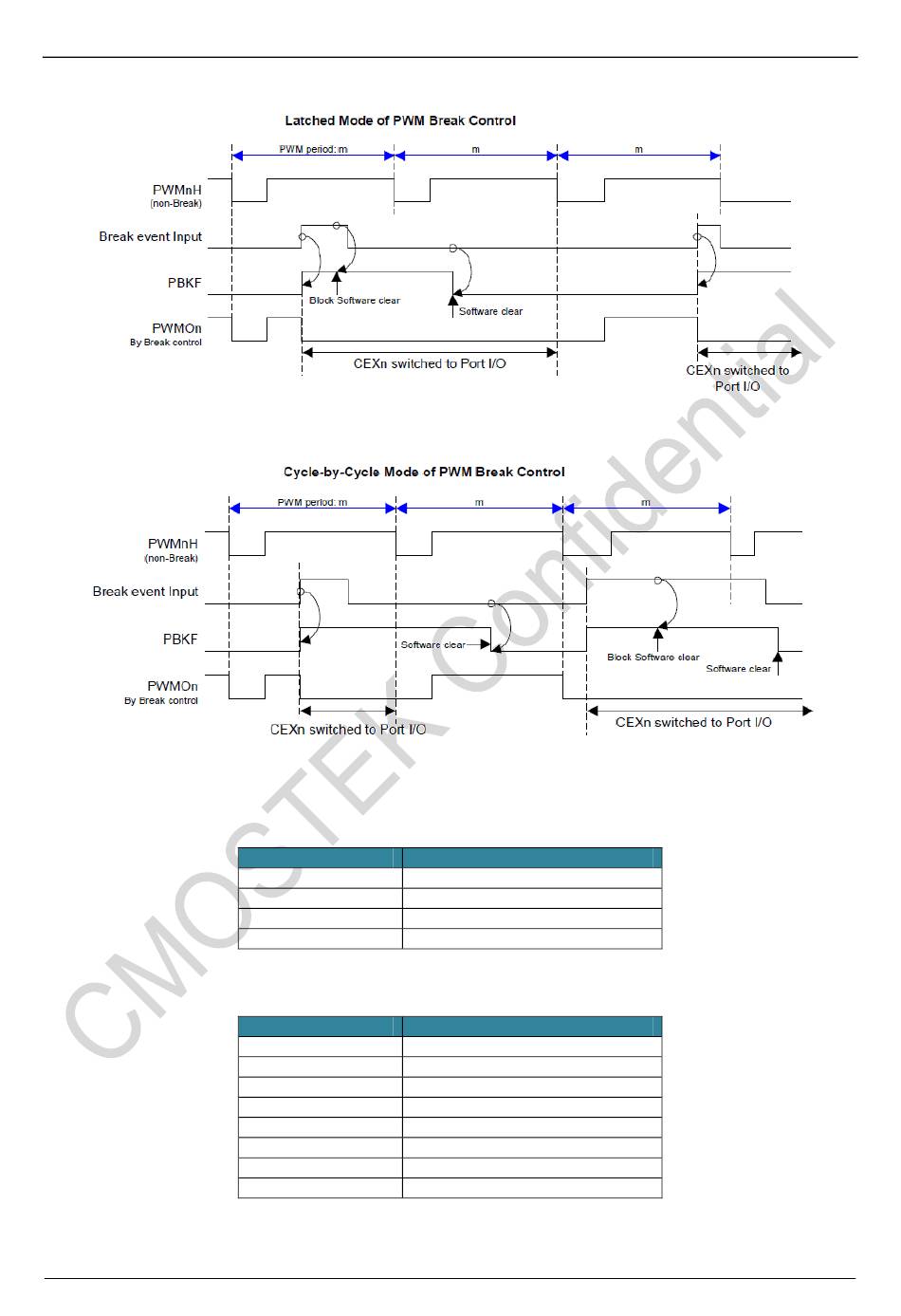

Figure 17-17. Latch Mode Waveform of PWM Break control
Figure 17-18. Cycle-by-Cycle Mode Waveform of PWM Break control
Bit 4~3: PBKE1.1~0, PWM Break Enable 1 selection. This function is only active on CEXn output mode
(n=0~5).
Bit 2~0: PBKE0.2~0, PWM Break Enable 0 selection. This function is only active on CEXn output mode
(n=0~5).
PBKE1[1:0]
Disable PWM break source 1
00
INT2ET, nINT2 active
01
Reserved
10
KBIET, KBI match active
11
PBKE0[2:0]
Disable PWM break source 0
000
Reserved
001
INT1ET, nINT1 active
010
T2EXI
011
KBIET, KBI match active
100
Reserved
101
Reserved
110
Reserved.
Other
