16.3.7 Split Timer 3 Mode 2 (Capture)
When T3SPL is set in this mode, Timer 3 is split to two 8-bit timers as shown in Figure 16–33. It is similar
function as Timer 3 Mode 2 and keeps the same interrupt scheme in Split Timer 3 Mode 0.

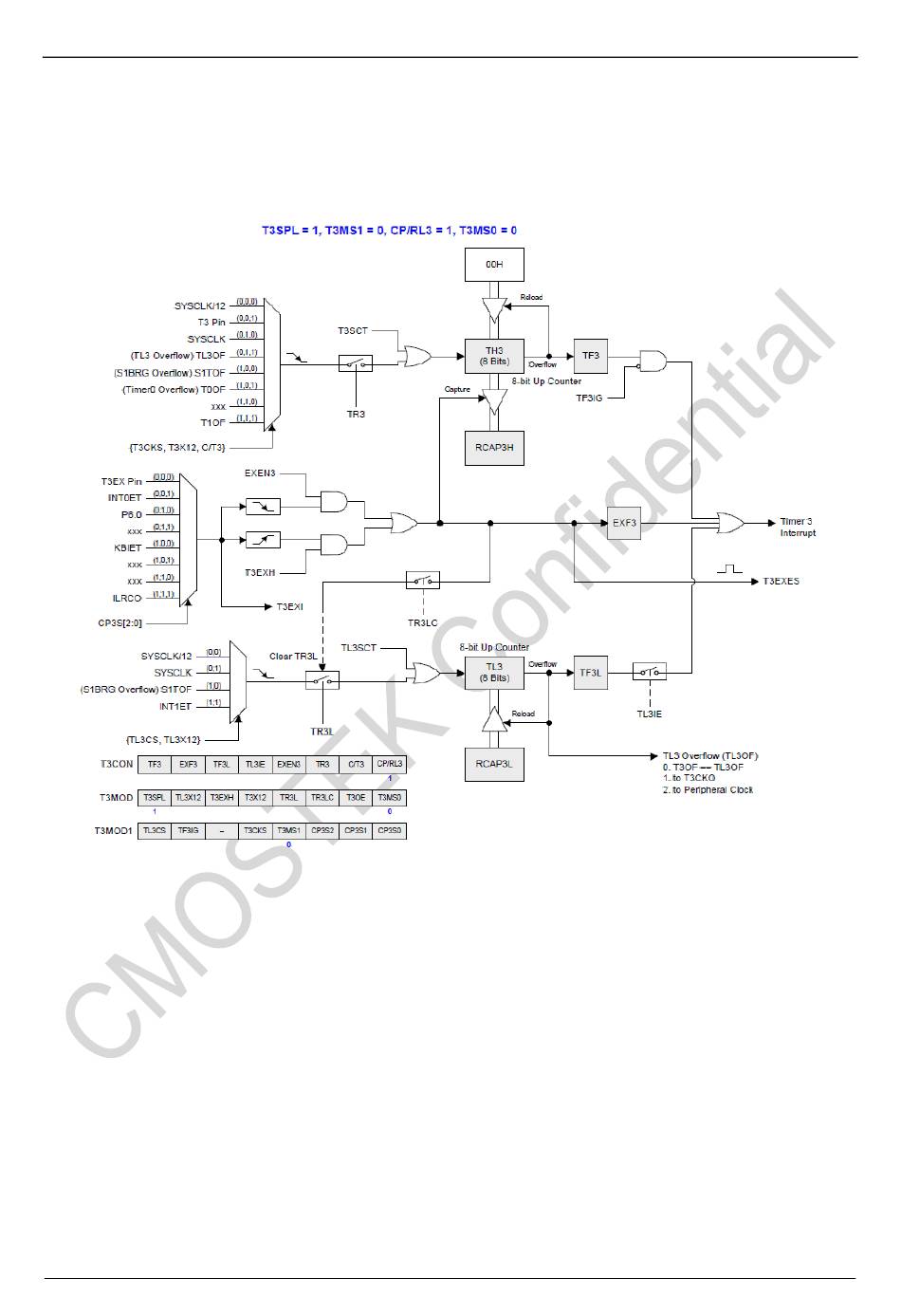

Figure 16-33. Split Timer 3 Mode 2 Structure (Capture)
