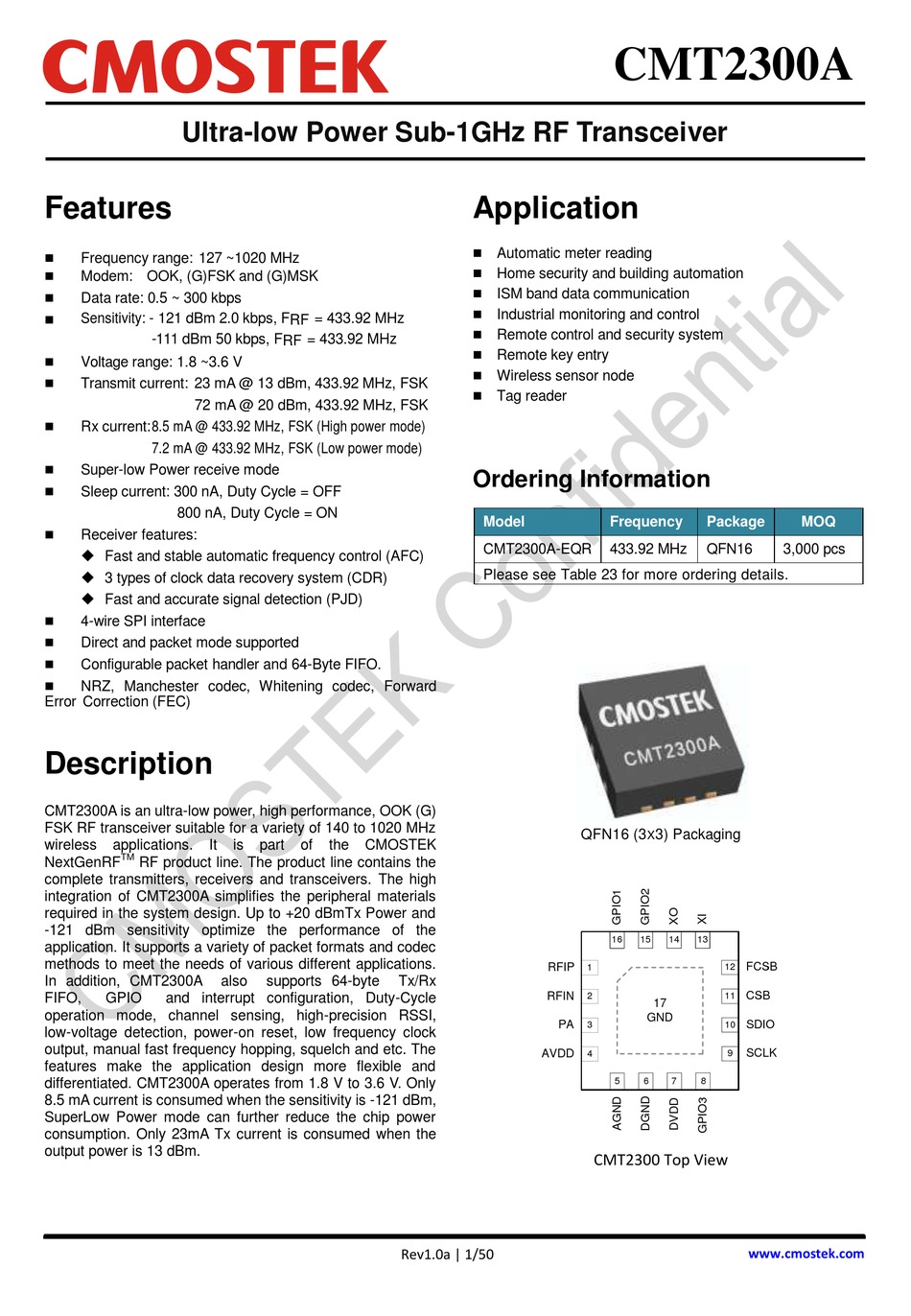

Ultra-low Power Sub-1GHz RF Transceiver
Features
Frequency range: 127 ~1020 MHz
Modem: OOK, (G)FSK and (G)MSK
Data rate: 0.5 ~ 300 kbps
Sensitivity: - 121 dBm 2.0 kbps, F RF = 433.92 MHz
-111 dBm 50 kbps, F RF = 433.92 MHz
Voltage range: 1.8 ~3.6 V
Transmit current: 23 mA @ 13 dBm, 433.92 MHz, FSK
72 mA @ 20 dBm, 433.92 MHz, FSK
Rx current: 8.5 mA @ 433.92 MHz, FSK (High power mode)
7.2 mA @ 433.92 MHz, FSK (Low power mode)
Super-low Power receive mode
Sleep current: 300 nA, Duty Cycle = OFF
800 nA, Duty Cycle = ON
Receiver features:
 Fast and stable automatic frequency control (AFC)
 3 types of clock data recovery system (CDR)
 Fast and accurate signal detection (PJD)
4-wire SPI interface
Direct and packet mode supported
Configurable packet handler and 64-Byte FIFO.
NRZ, Manchester codec, Whitening codec, Forward
Error Correction (FEC)
Description
CMT2300A is an ultra-low power, high performance, OOK (G)
FSK RF transceiver suitable for a variety of 140 to 1020 MHz
wireless
applications.
It
TM
NextGenRF
RF product line. The product line contains the
complete transmitters, receivers and transceivers. The high
integration of CMT2300A simplifies the peripheral materials
required in the system design. Up to +20 dBmTx Power and
-121 dBm sensitivity optimize the performance of the
application. It supports a variety of packet formats and codec
methods to meet the needs of various different applications.
In addition, CMT2300A
FIFO,
GPIO
and interrupt configuration, Duty-Cycle
operation mode, channel sensing, high-precision RSSI,
low-voltage detection, power-on reset, low frequency clock
output, manual fast frequency hopping, squelch and etc. The
features make the application design more flexible and
differentiated. CMT2300A operates from 1.8 V to 3.6 V. Only
8.5 mA current is consumed when the sensitivity is -121 dBm,
SuperLow Power mode can further reduce the chip power
consumption. Only 23mA Tx current is consumed when the
output power is 13 dBm.
is
part
of
the
CMOSTEK
also
supports 64-byte
Application
SoC
Automatic meter reading
Home security and building automation
ISM band data communication
Industrial monitoring and control
Remote control and security system
Remote key entry
Wireless sensor node
Tag reader
Ordering Information
Model
CMT2300A-EQR
Please see Table 23 for more ordering details.
Tx/Rx
Rev1.0a | 1/50
CMT2300A
CMT2300A
Frequency
Package
433.92 MHz
QFN16
QFN16 (3
3) Packaging
X
17
GND
CMT2300 Top View
www.cmostek.com
MOQ
3,000 pcs
