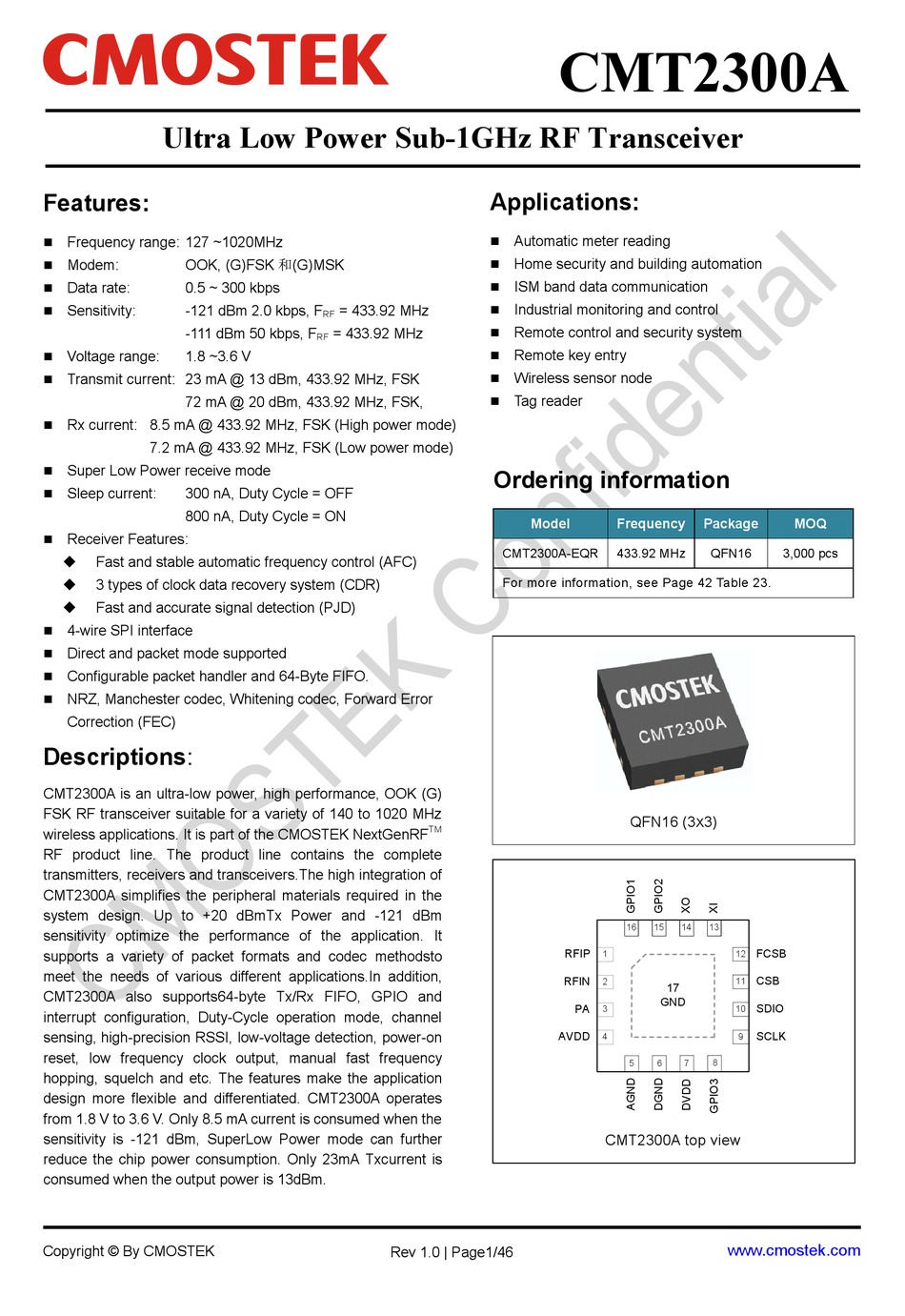

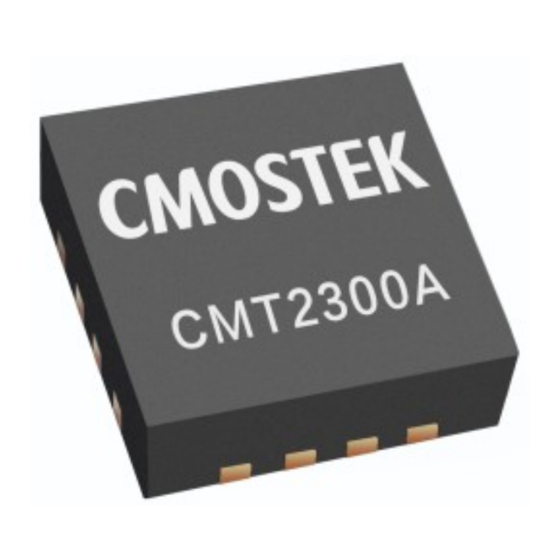

Ultra Low Power Sub-1GHz RF Transceiver
Features:
Frequency range: 127 ~1020MHz
Modem:
OOK, (G)FSK 和(G)MSK
Data rate:
0.5 ~ 300 kbps
Sensitivity:
-121 dBm 2.0 kbps, F
-111 dBm 50 kbps, F
Voltage range:
1.8 ~3.6 V
Transmit current: 23 mA @ 13 dBm, 433.92 MHz, FSK
72 mA @ 20 dBm, 433.92 MHz, FSK,
Rx current: 8.5 mA @ 433.92 MHz, FSK (High power mode)
7.2 mA @ 433.92 MHz, FSK (Low power mode)
Super Low Power receive mode
Sleep current:
300 nA, Duty Cycle = OFF
800 nA, Duty Cycle = ON
Receiver Features:
Fast and stable automatic frequency control (AFC)
3 types of clock data recovery system (CDR)
Fast and accurate signal detection (PJD)
4-wire SPI interface
Direct and packet mode supported
Configurable packet handler and 64-Byte FIFO.
NRZ, Manchester codec, Whitening codec, Forward Error
Correction (FEC)
Descriptions:
CMT2300A is an ultra-low power, high performance, OOK (G)
FSK RF transceiver suitable for a variety of 140 to 1020 MHz
wireless applications. It is part of the CMOSTEK NextGenRF
RF product line. The product line contains the complete
transmitters, receivers and transceivers.The high integration of
CMT2300A simplifies the peripheral materials required in the
system design. Up to +20 dBmTx Power and -121 dBm
sensitivity optimize the performance of the application. It
supports a variety of packet formats and codec methodsto
meet the needs of various different applications.In addition,
CMT2300A also supports64-byte Tx/Rx FIFO, GPIO and
interrupt configuration, Duty-Cycle operation mode, channel
sensing, high-precision RSSI, low-voltage detection, power-on
reset, low frequency clock output, manual fast frequency
hopping, squelch and etc. The features make the application
design more flexible and differentiated. CMT2300A operates
from 1.8 V to 3.6 V. Only 8.5 mA current is consumed when the
sensitivity is -121 dBm, SuperLow Power mode can further
reduce the chip power consumption. Only 23mA Txcurrent is
consumed when the output power is 13dBm.
Copyright © By CMOSTEK
= 433.92 MHz
RF
= 433.92 MHz
RF
TM
Rev 1.0 | Page1/46
CMT2300A
Applications:
Automatic meter reading
Home security and building automation
ISM band data communication
Industrial monitoring and control
Remote control and security system
Remote key entry
Wireless sensor node
Tag reader
Ordering information
Model
Frequency
CMT2300A-EQR
433.92 MHz
For more information, see Page 42 Table 23.
QFN16 (3
GND
CMT2300A top view
CMT2300A
Package
MOQ
QFN16
3,000 pcs
3)
X
17
www.cmostek.com
