Hardware Installation

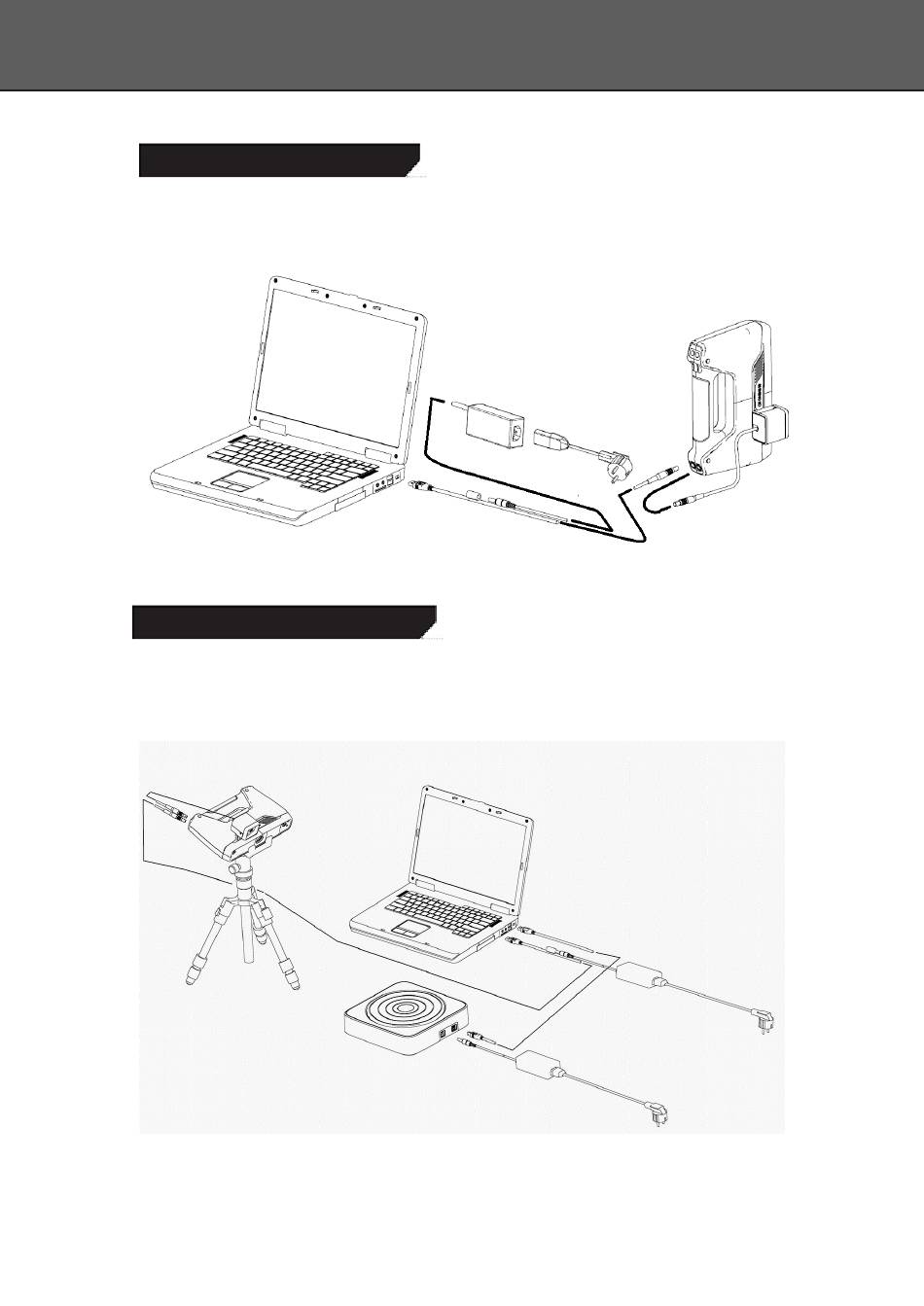

Basic Module
Connect one end of the line to the scanner, the other end to power line and USB on the
computer as shown in the picture. Connect to USB2.0 or USB3.0. (This installation mode is
suitable for Handheld Scan.)
Industrial module installation
Put the basic module on the tripod when the installation finishes. Connect the long-opening
end of USB line to the computer, the square-opening end to the turntable. Then connect the
power adapter to the turntable and adjust the position of scan head and turntable. (This
installation mode is suitable for Fixed Scan.)
