Camera Calibration

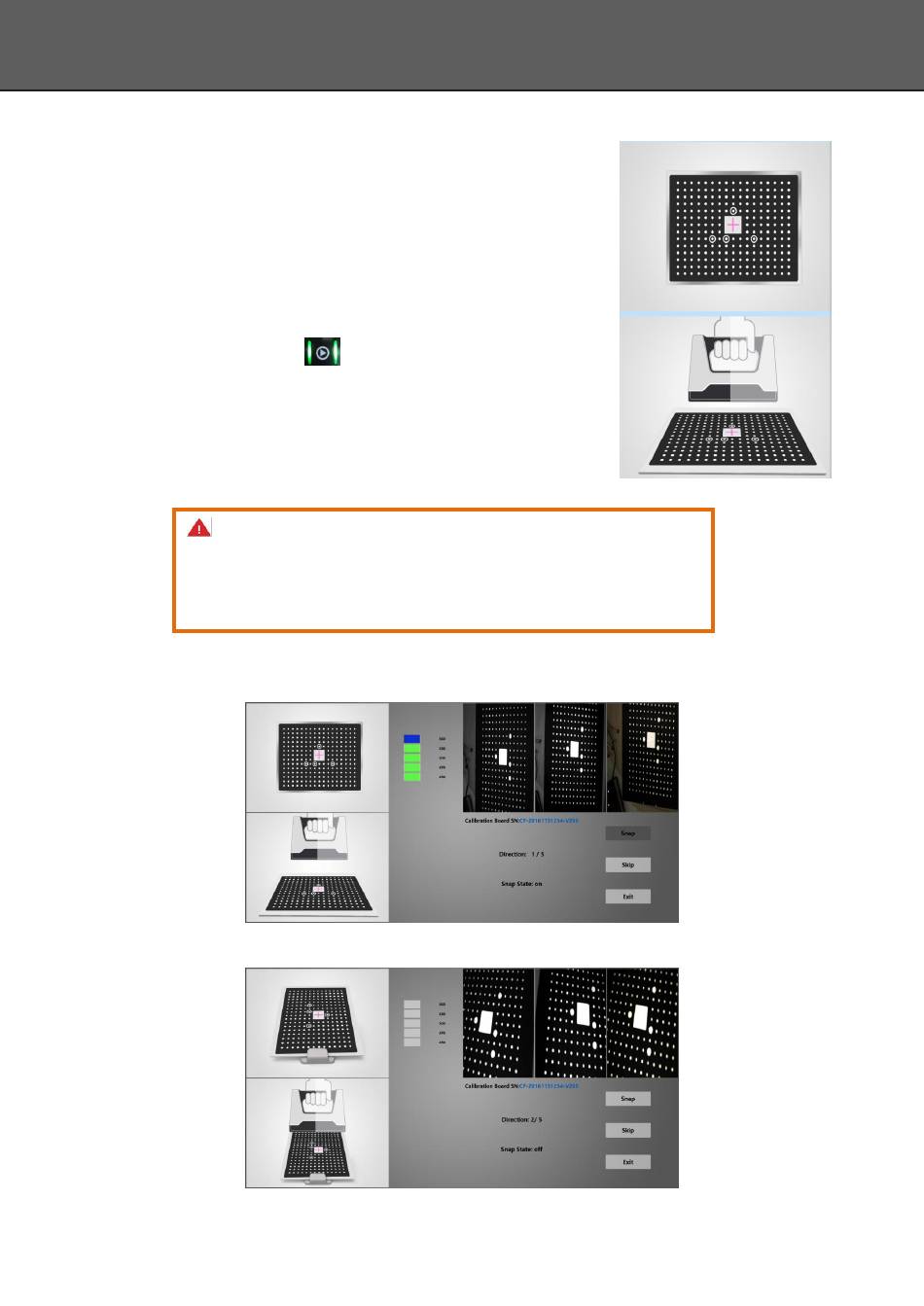

The calibration board should be placed in 5 different positions as
the software operation guide shown, and each position will be taken 5
photos.
Firstly, adjust the distance between the projector and calibration
board （
450mm-550mm
The first calibration board direction should be same as software
operation guide shown below, and the cross from scanner should
target at the blank position clearly.
Click "Snap" or
scanner from top to bottom or from bottom to top, until the distance
bar appears all green, so the photos are all captured in this position.
Note：
1. When the distance bar appears green, it means pictures of this position
are collected. Blue means the current position.
2. Keep the cross in the white square area when moving the calibration.
When pictures of one position are well collected, the software will turn to the next position as
below:
）.
, the photo will be captured. Move the
