Handheld Rapid Scan - Shining 3D EinScan-Pro+ User Manual

Handheld Rapid Scan

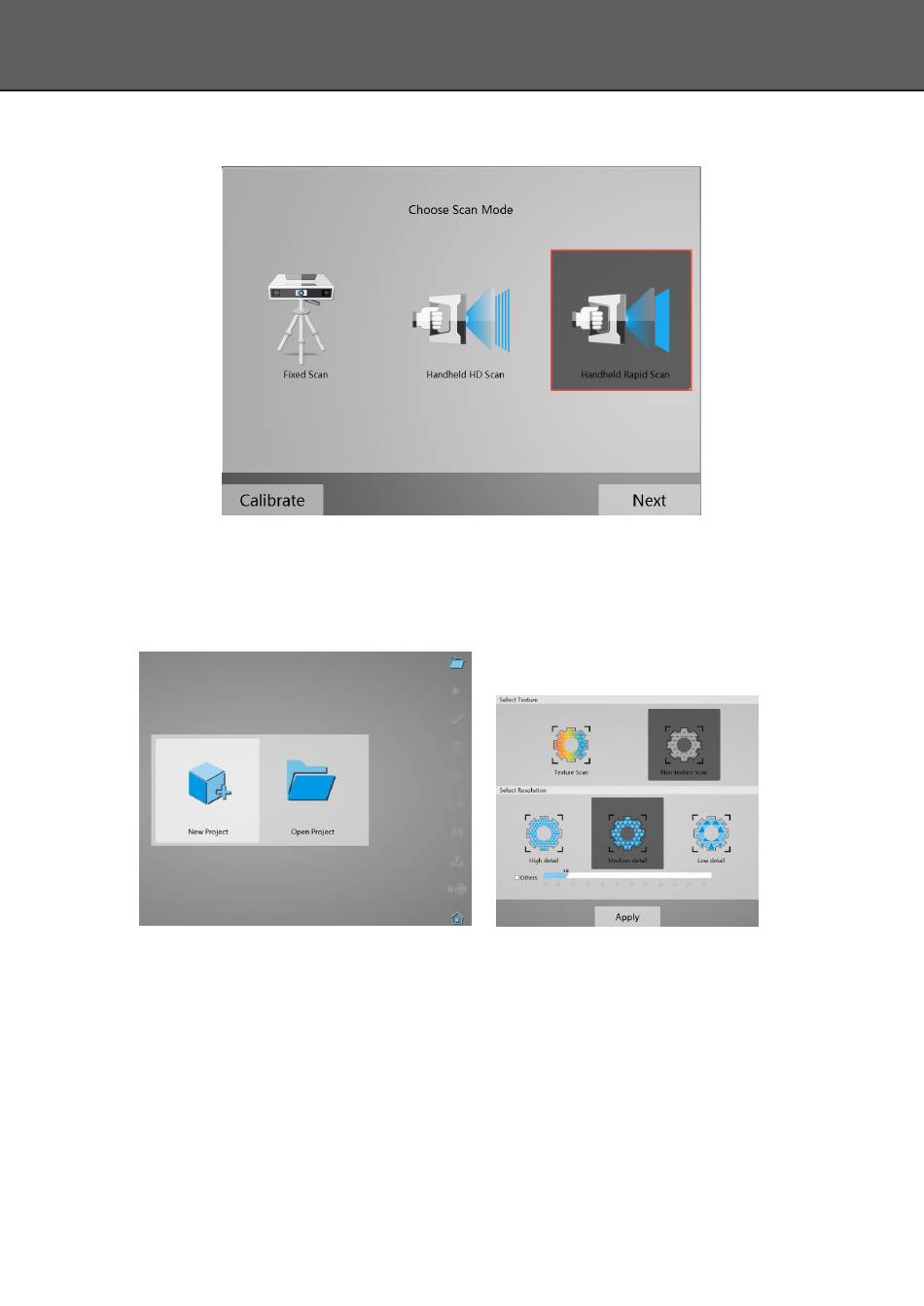

Choose Handheld Rapid Scan, click "Next", as shown below:
Enter the interface of new project, as shown below, click "New Project", type the project
name, then will pop-up the interface of texture scan and resolution selection. Texture scan is only
active when the scanner is with texture camera. The process of Non-texture Scan and Texture
Scan are same.
Select Resolution
The higher the resolution, the better the details. If select the "others", you can drag the
sliding block to other locations, flexible choice of point distance.
Handheld Rapid Scan point distance range: 0.7mm—3.0mm, high 0.7mm, medium 1.0mm,
low 1.5mm.
