Manipulation - LINET Multicare LE Instructions For Use And Technical Description

NOTE Each bed can transport only one patient at a time and cannot be used to transport other items (except bed accessories in
secured position).
NOTE For information concerning uses other than those outlined in the "Specifications of Use" section above, please contact
LINET ®.

13.6.4 Manipulation

CAUTION!
Damage to i-Drive Power main control panel cable due to wrong cable placement!
► Ensure that the main control panel connecting cable (13) is placed exactly as on the following picture.
CAUTION!
Material damage due to incorrect use!
► Do not hang anything on the main control panel and its cable!

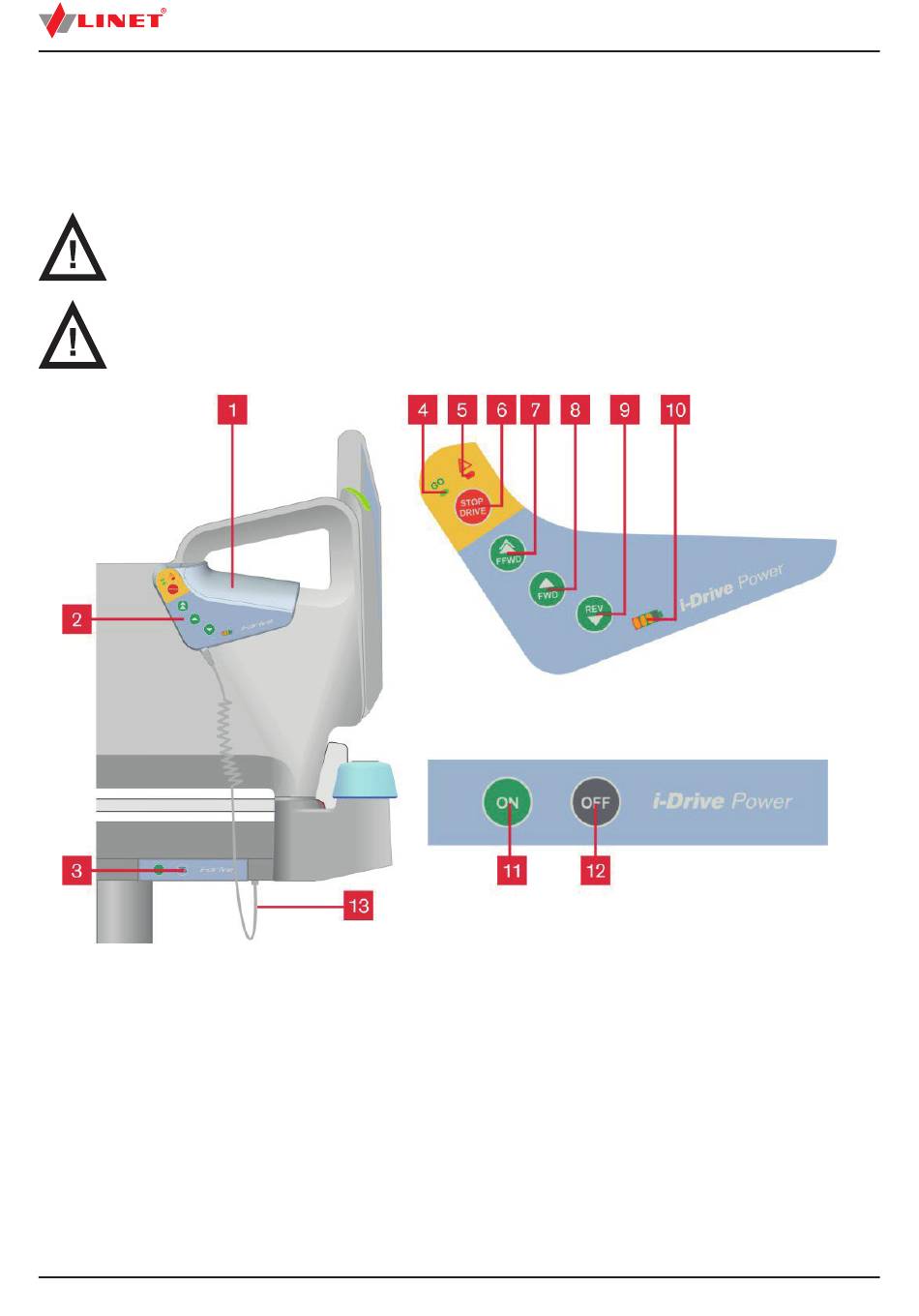

Fig. i-Drive Power controllers
1. Safety Sense (touch sensor)
2. Main control panel
3. Activation panel
4. GO indicator
5. Fault indicator
6. Stop drive button
7. Fast forward button
8. Forward button
9. Reverse button
10. Accumulator status and fault indicator
11. i-Drive wheel Activation button
12. i-Drive wheel Retraction and Deactivation button
13. Main control panel cable – correct cable placement
