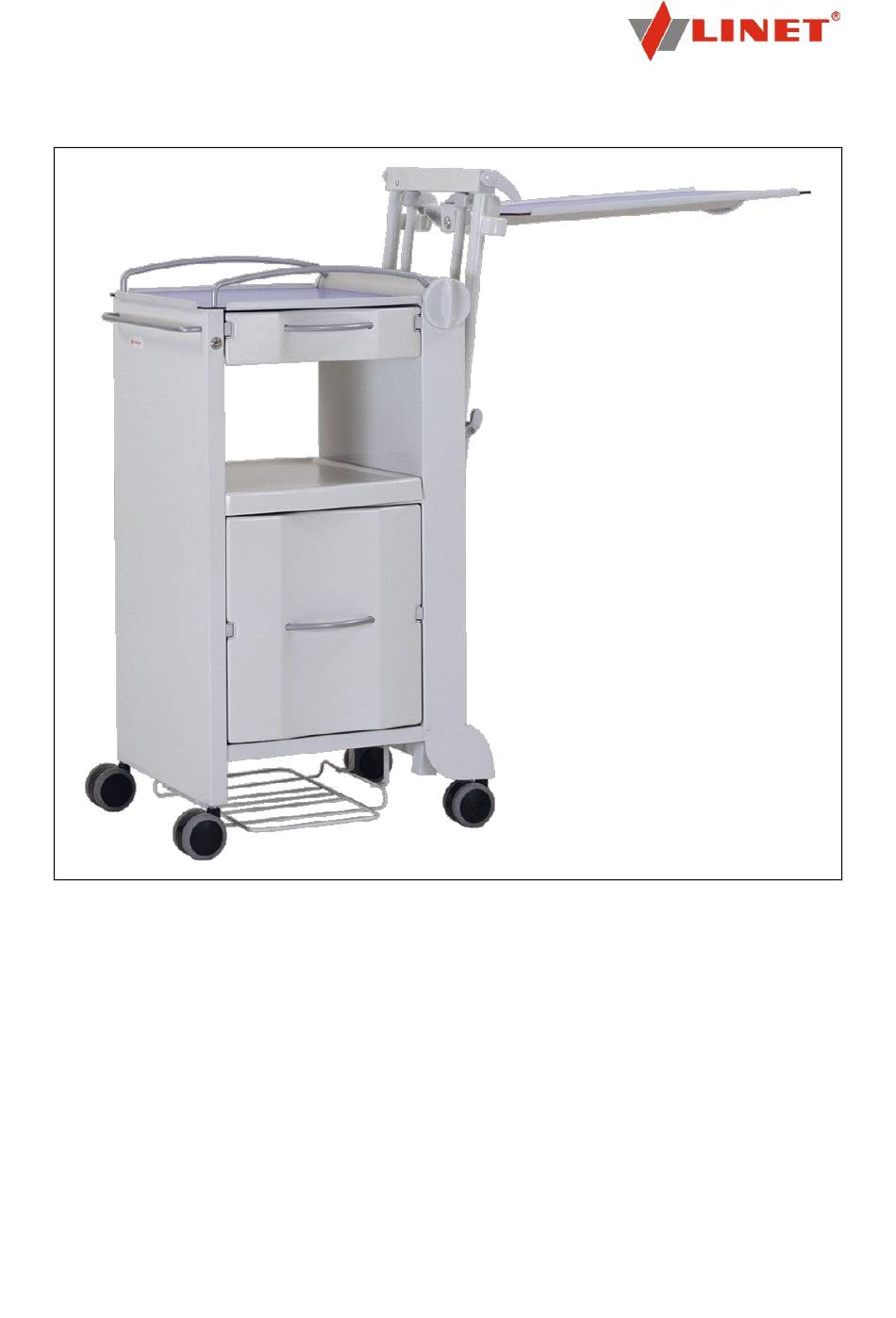

- Page 1 D9U004SE0-0101 Version: 01 2017-04 Cabinets ELEGANZA CLASSIC, ELEGANZA MANO Operation manual and technical description _________________________________________________________________________________...
- Page 2 Dear Customers, We would like to thank you for your decision to buy a LINET product. We believe that you will be satisfied with its performance during the whole period of use. Thanks to a very careful selection of materials, state-of-...
- Page 3 _________________________________________________________________________________ Introduction The table can be used in standard and specialised hospital units and even for patients confined to bed in social care institutions and senior or home care. Patient’s side tables are assigned for use in conjunction with many different types of adjustable beds. Before you start handling this side table, it is necessary to make yourselves familiar with these instructions.
-
Page 4: Safety Instruction
_________________________________________________________________________________ Safety instruction The table can be used on solid flat floors only. The eating board and drawers should not be overloaded over limit. The resting on tipped out eating board is dangerous; to use it as support for rising can lead to user’s accident or table damage or break of subjects located on. - Page 5 _________________________________________________________________________________ Versions specification The following chart shows basic versions of the table: CLASSIC Without eating With eating board board MANO With eating With eating board, Without eating board, Without eating board, board, upper upper shelf with upper shelf without lock upper shelf with lock shelf without lock lock...

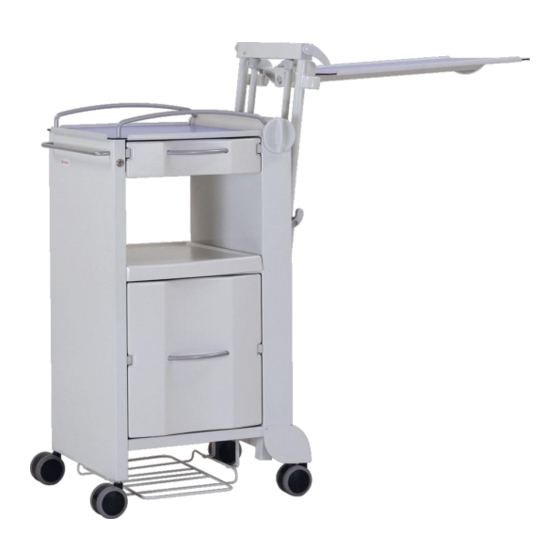

- Page 6 _________________________________________________________________________________ Description of the ELEGANZA CLASSIC Bedside cabinet without eating board Bedside cabinet with eating board 1. Eating board of high pressure laminate 2. Eating board adjustment mechanism 3. Upper desk of high pressure laminate with metallic handles 4. Upper smaller drawer 5.
- Page 7 _________________________________________________________________________________ Description of the ELEGANZA MANO 1. Upper desk of high pressure laminate 7. Bed pan or mufflers holder 2. Metal handle for keeping in ride 8. Double castor 75 mm with central brake 3. Towel holder with Universal holders for 9.
- Page 8 Both handle positions are marked by red and green label: 1 = brakes on 2 = brakes off Individual braking of castors (ELEGANZA CLASSIC bedside cabinet only) Bedside cabinet ELEGANZA CLASSIC is equipped with 4 castors, of whom 2 or 4 are individually braked (acc. to model number).
- Page 9 This drawer is fitted with 3 PET 1,5 litres bottles holder. The bedside cabinet ELEGANZA CLASSIC is equipped unlike the MANO with small upper drawer and with locker that are designed for both-sided use. The drawer´s maximum loading capacity is 5 kg and the locker can be furnished with the locks in the doors optionally.
- Page 10 The way of operation is the same for ELEGANZA CLASSIC and MANO bedside cabinets, too.
- Page 11 _________________________________________________________________________________ The desk height adjustment and tilting After pulling the desk out of the table body and setting it to the horizontal position it can be also adjusted in height. After taking up the lever of the lock in arrow 1 direction the desk is released and it can be set to required position pulling it up.
-
Page 12: Cleaning And Disinfections
_________________________________________________________________________________ Accessory – Telephone holder Swivel arm with support board for telephone device suitable various types telephones. It is attached to the Universal holders for accessories. This accessory has to be ordered separately, it is not part of standard bedside cabinet. Cleaning and disinfections The whole side table can be cleaned and disinfected by usual detergent and disinfectants in concentration set for medical care (0,5% PERSTERIL, 1% CHLORAMIN etc). -
Page 13: Faults And Troubleshooting
_________________________________________________________________________________ Faults and troubleshooting Fault Probable cause Troubleshooting 1. The upper drawer cannot 1. The drawer was locked extended 1. Unlock the drawer be fully pushed in 2. Upper or lower drawer 2. The drawer is blocked by some 2. Remove the object cannot be moved in or out object 3. -
Page 14: Environmental Protection
_________________________________________________________________________________ Environmental protection The company LINET, spol. s r.o. is aware of the necessity to protect the environment for future generations and therefore devotes great attention to the development, innovation – planning, production and use of such technology and materials that are environmentally friendly. -
Page 15: Warranty And Service
Warranty and after warranty service is granted by producer or authorised services on a base of written authorisation for such activity. The authorisation is issued by the producer. Manufacturer: Linet spol. s r. o. Želevčice 5 274 01 Slaný Czech Republic Tel.: +420 312 576 111...
