11.5 Attendant Control Panel

The Attendant Control Panel is a standard Control Element. The Attendant Control Panel can be hung on the foot board or on side-
rails if required. It is possible to hold the Attendant Control Panel in the hand while operating.
► Ensure that exclusively trained nursing staff operates the Attendant Control Panel.
1
7
9

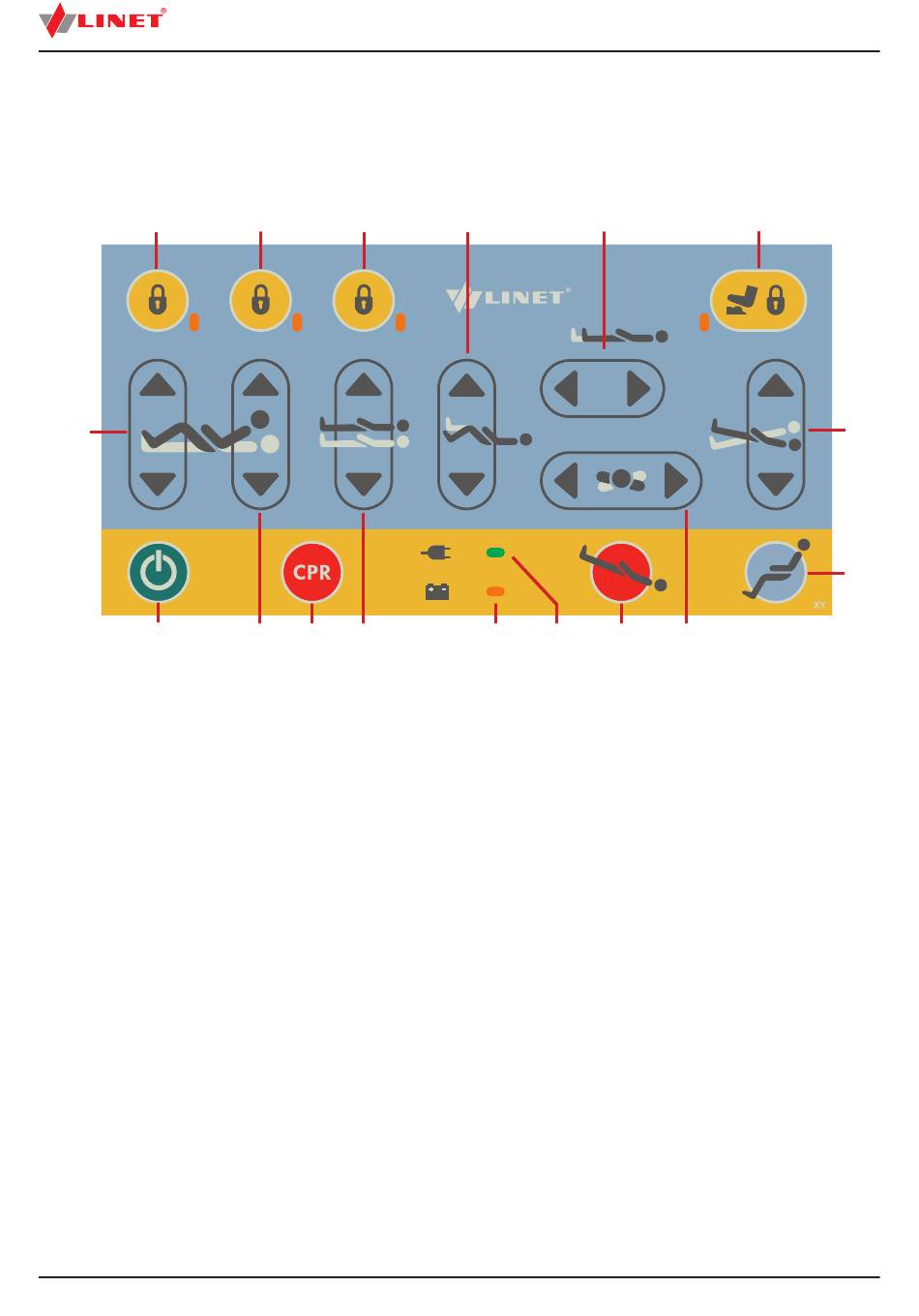

Fig. Attendant Control Panel
1. Thighrest, Calfrest and Bed Extension Adjustment Lock Button and LED
2. Backrest Lock Button and LED
3. Bed Height, Lateral Tilt, Trendelenburg Tilt and Antitrendelenburg Tilt Lock Button and LED
4. Calfrest Adjustment Button
5. Bed Extension Adjustment Button
6. Foot Control Lock Button and LED
7. Thighrest Adjustment Button
8. Tilt Button
9. GO Button
10. Backrest Adjustment Button
11. CPR Position Button
12. Bed Height Adjustment Button
13. Accumulator Charge Status LED
14. Mains Power LED
15. Trendelenburg Position Button
16. Lateral Tilt Button
17. Cardiac Chair Position Button
40
2
3
10 11 12
5
4
13 14 15
6
16
