13 Equipment

13.1 Accessory rails

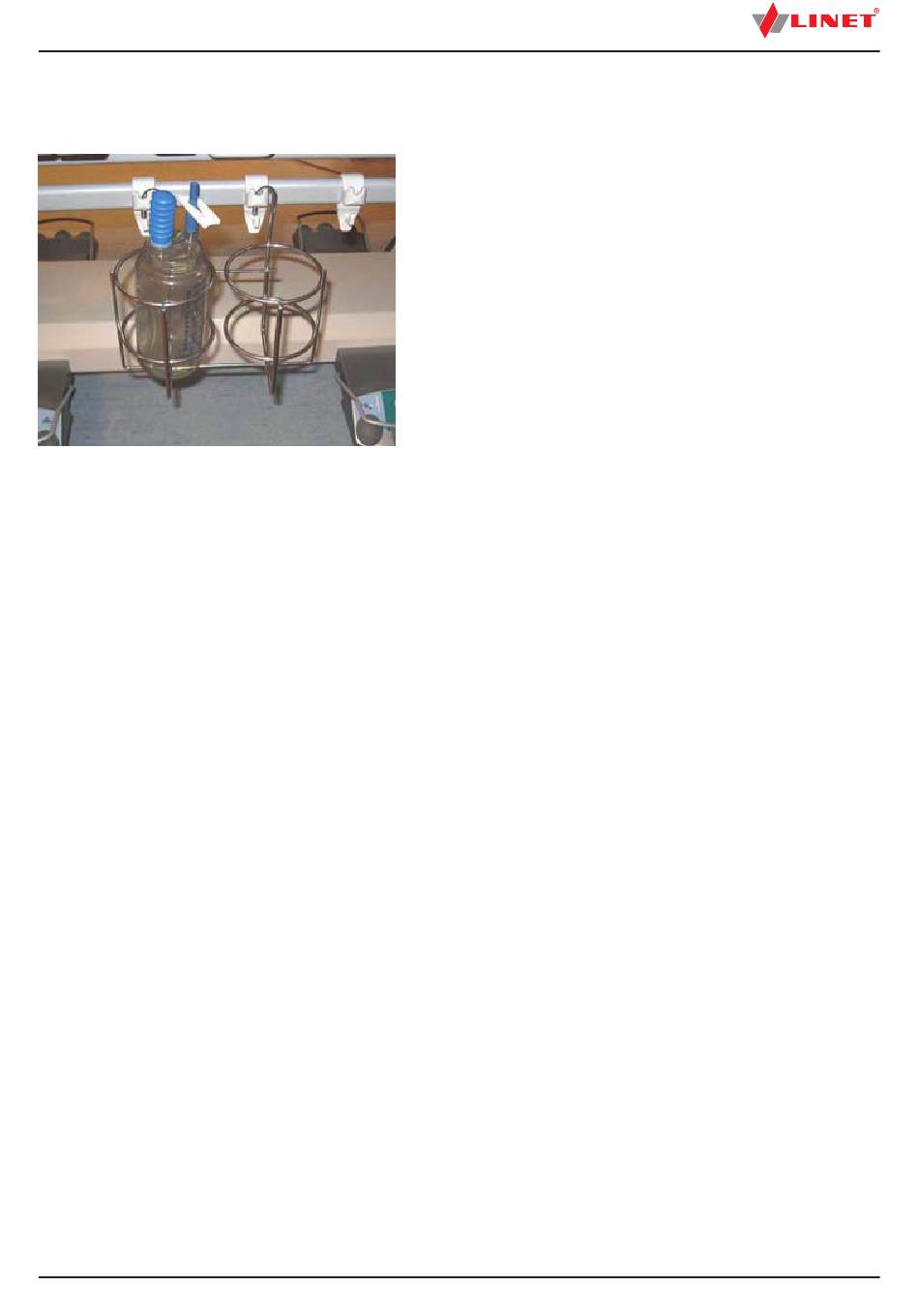

Fig. Accessory Rail
13.2 i-Brake® (optional)
It is possible to equip the bed with an automatic castor brake. The automatic castor brake prevents injuries of pati- ents and staff
due to an unbraked bed.
The brakes are activated automatically 60 seconds after the bed is plugged in, and 60 seconds after they have been released if the
bed is not being moved.
It is possible to activate the brakes manually as well.
13.3 Retractable 5th wheel i-Drive® (optional)
It is possible to equip the bed with a 5th wheel in the chassis centre. The 5th wheel helps to steer and manoeuvre the bed in long
corridors and small rooms.
If the bed is plugged in, the 5th wheel automatically retracts. In this position, the 5th wheel does not obstruct access to any devices
under the chassis.
To activate the 5th wheel i-Drive®:
► Disconnect the bed from the mains.
► Adjust the castor control so that the green lever points down
D9U001MC5-0101_08
Load capacity:
► Maximum load of 5 kg (11.02 lbs) without leverage
► Maximum load of hook pair 10 kg (22.05 lbs)
Accessories for hanging on the accessory rail:
► Urine bag holder
► Redon bottle basket
► Stainless steel rails
47
