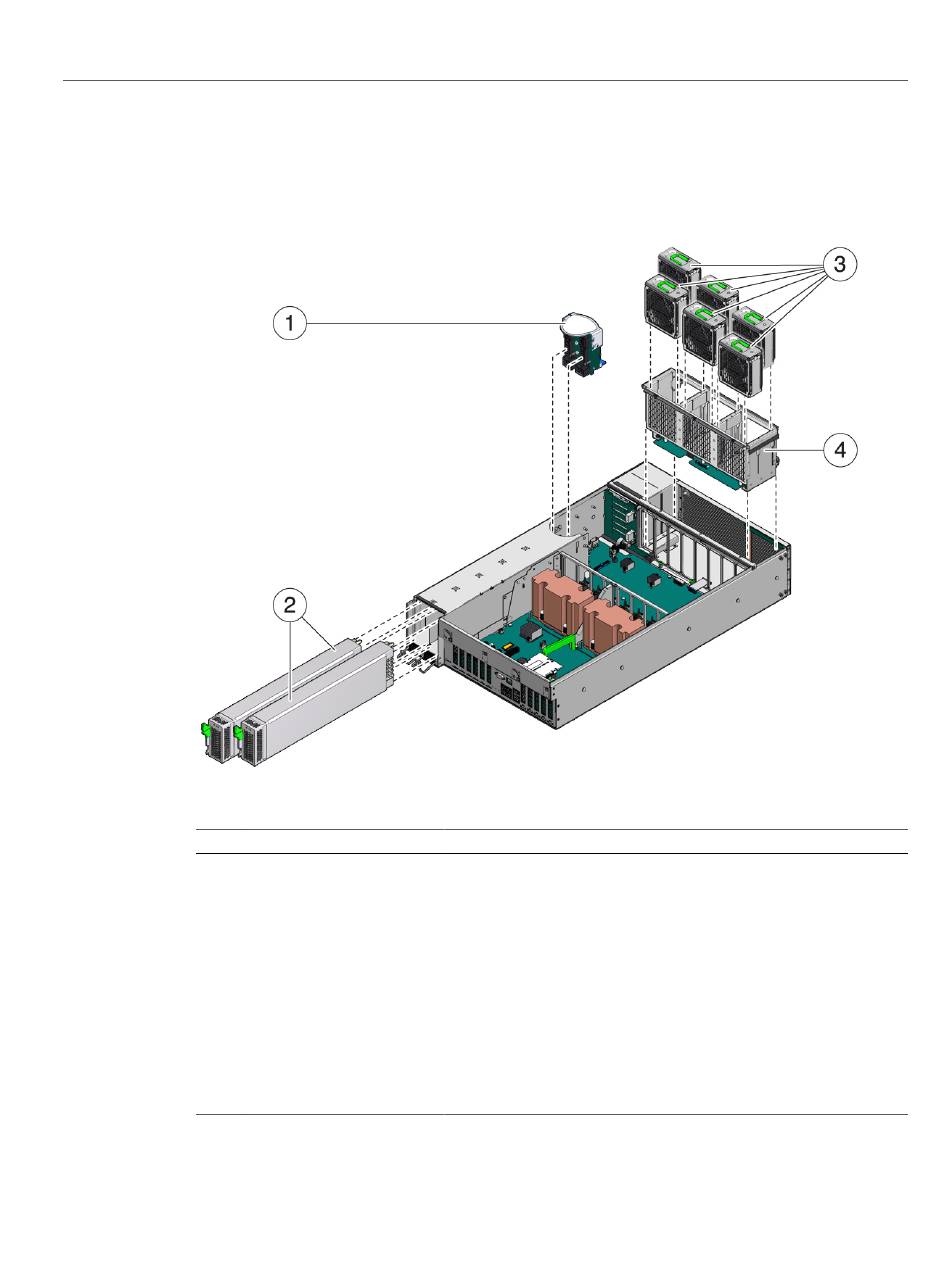

Power Distribution and Fan Module Component Locations
Power Distribution and Fan Module Component Locations
No.
1
2
3
24
SPARC T7-2 Server Service Manual • July 2019
Component
PS backplane and cover
Power supplies
Fan modules
Oracle ILOM Target
/SYS/PDB
/SYS/PS0 (outer)
/SYS/PS1 (inner)
/SYS/FANBD/F0
/SYS/FANBD/F1
/SYS/FANBD/F2
/SYS/FANBD/F3
/SYS/FANBD/F4
Links
"Servicing the PS
Backplane" on page 165
"Servicing Power
Supplies" on page 85
"Servicing Fan
Modules" on page 77
