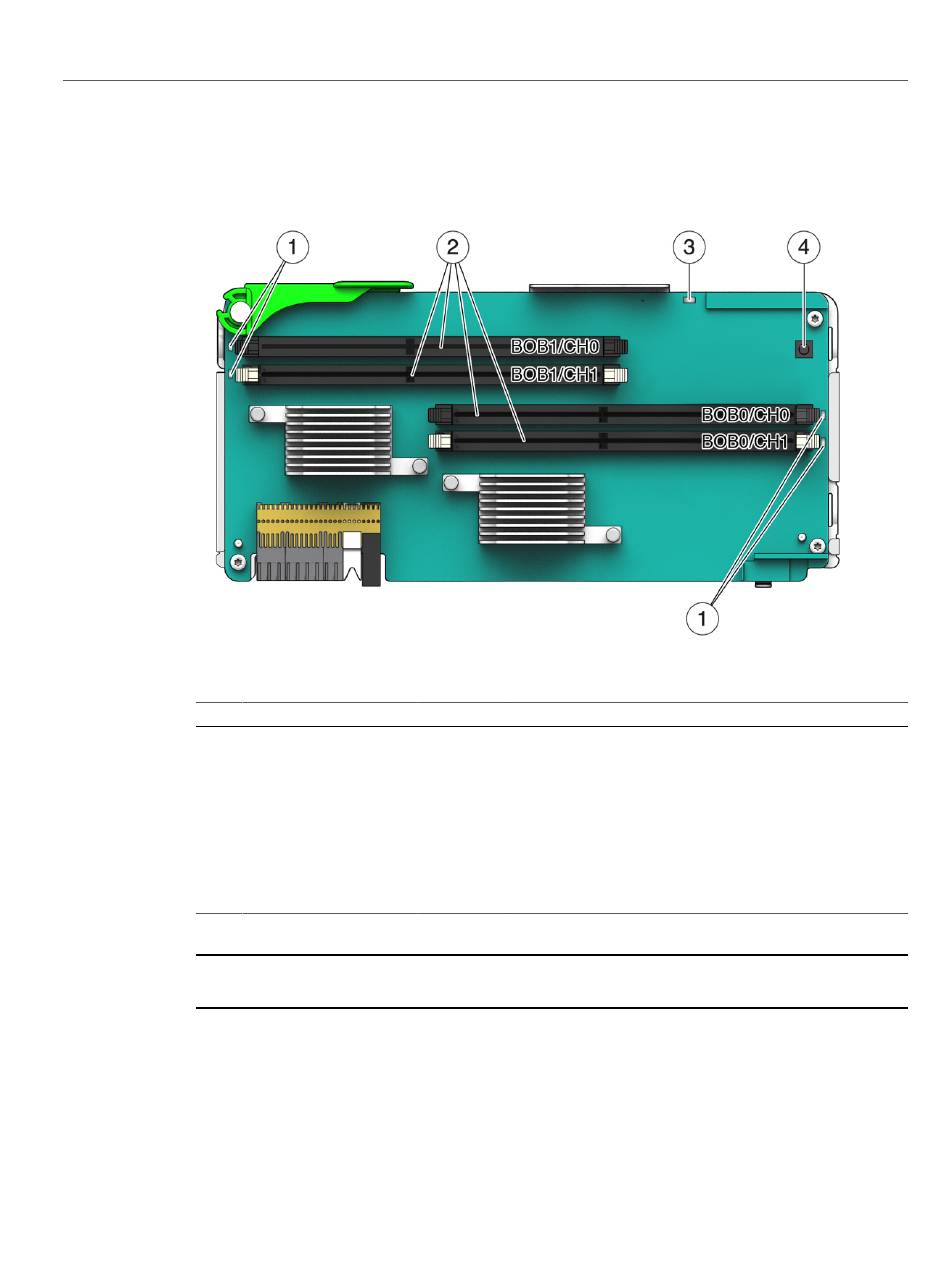

Locate a Faulty DIMM (LEDs)
Press the button briefly to avoid using up the stored power available to illuminate fault LEDs.
No.
1
2
3
4
Note -
DIMM fault.
Related Information
"Locate a Faulty DIMM (Oracle ILOM)" on page 96
■
98 SPARC T7-2 Server Service Manual • July 2019
LED Color
DIMM Fault LED Amber
DIMM slots
Memory Riser Power LED Green
Amber
Memory Riser Remind Blue
button
The front and rear panel Service Required LEDs are also lit when the server detects a
Description
Identifies each faulty or misconfigured DIMM when you press
the memory riser remind button.
A notch toward the middle of each slot ensures that the DIMM
is correctly oriented.
Indicates that the riser is operating normally.
Indicates that the riser has a fault.
Push this button to identify the faulty or misconfigured DIMMs.
