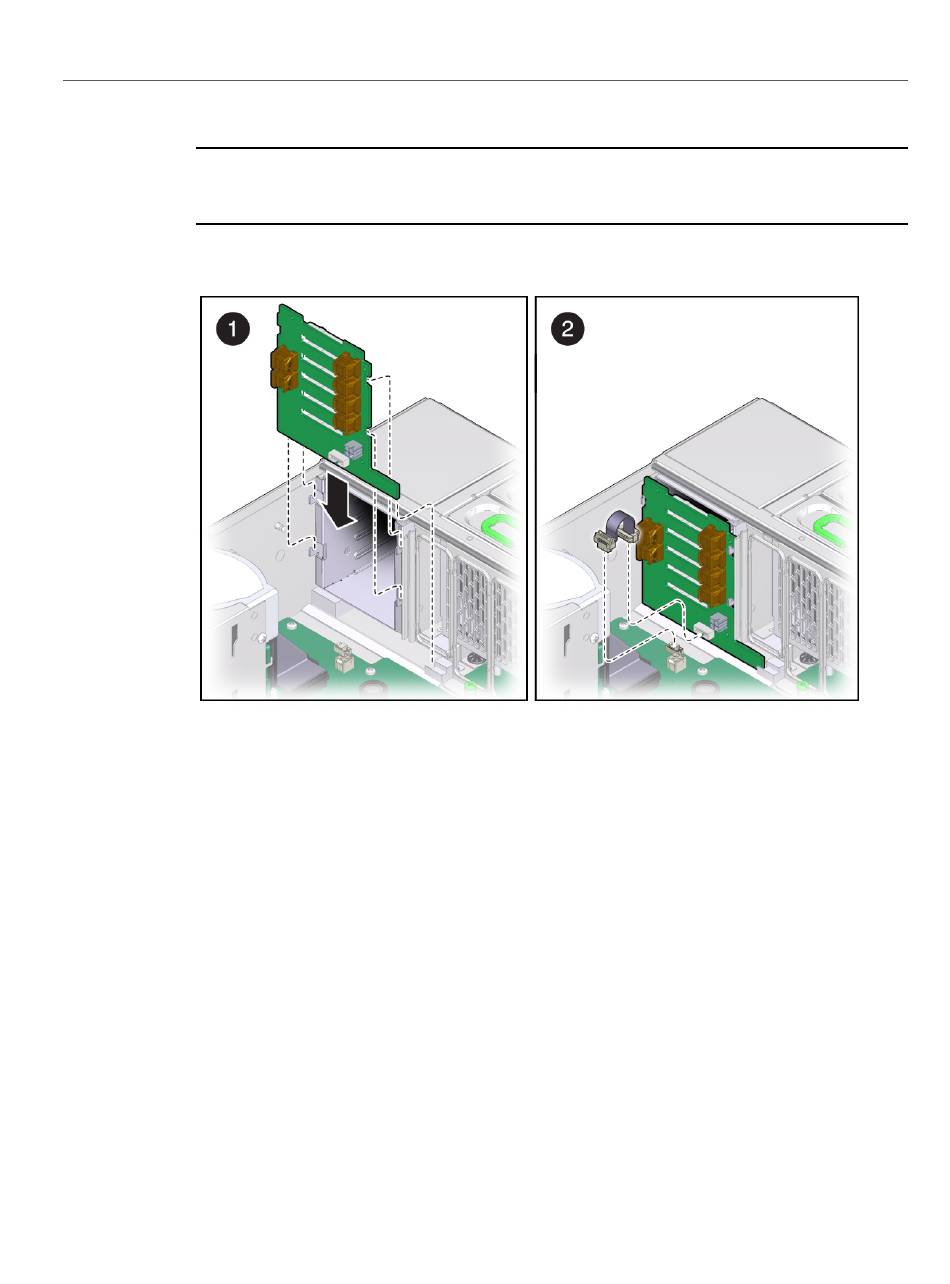

Install the Drive Backplane
Note -
both SAS cables into the drive backplane, then install the top SAS cable into the motherboard
connector labeled top. Install the other SAS cable into the bottom connector.
5. Replace the System Remind button assembly (air divider).
6. Replace all memory risers you removed.
See "Install a Memory Riser" on page
Replace the DVD drive.
7.
See "Install a DVD Drive" on page
8. Replace all drives and filler panels.
See "Install a Drive" on page
9. Return the server to operation.
See "Returning the Server to Operation" on page
162 SPARC T7-2 Server Service Manual • July 2019
