The graph usually displays all the data sets of a given recording, but you can use the
Data Map to remove one or more of the sets from the graph (see page 57).

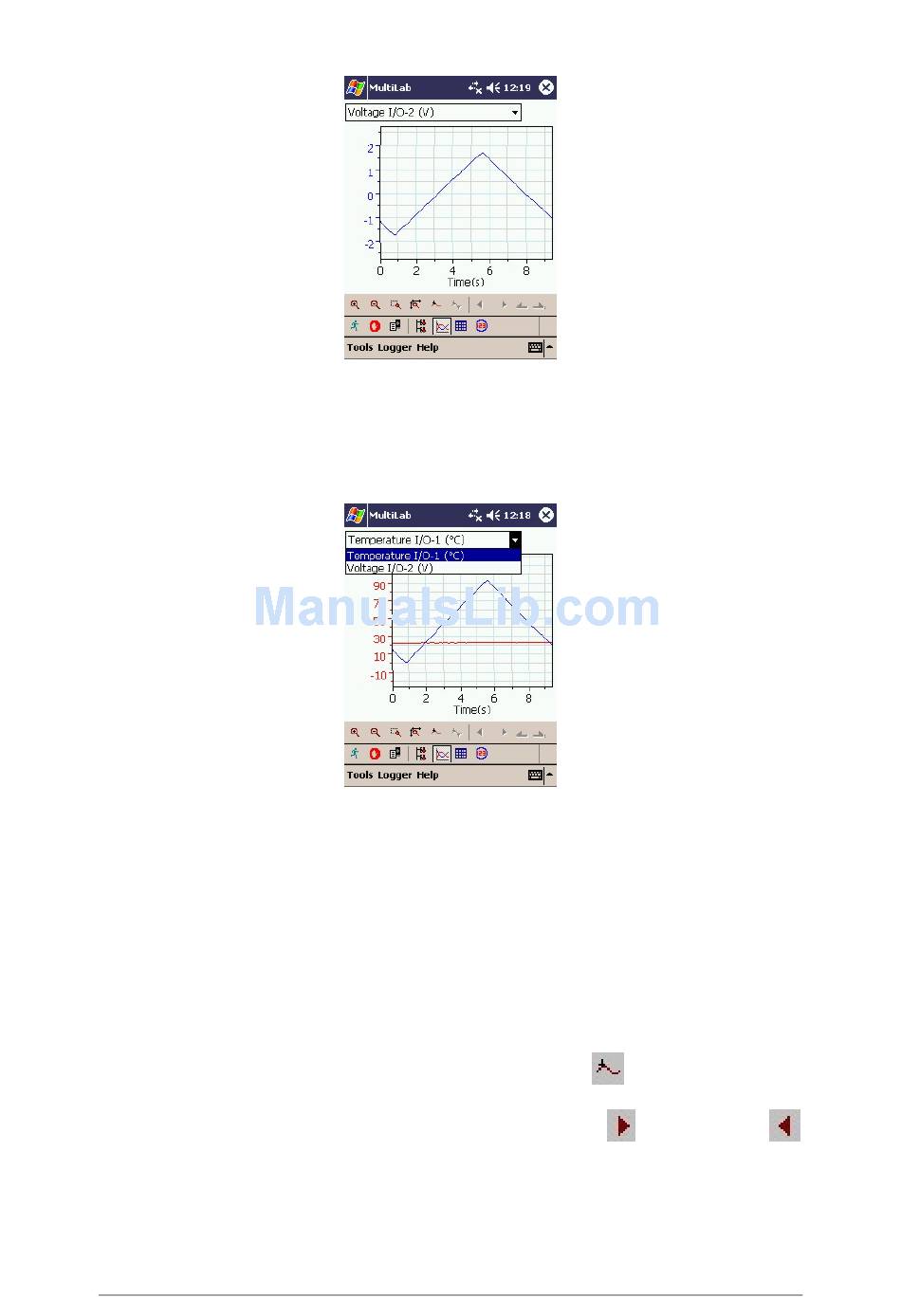

In order to keep the graph clear and simple, only one Y-axis is shown on the graph.
To change the Y-axis, pick the desired sensor from the pick list above the axis
You can identify the Y-axis by its color, which matches the plot color.
1.

The Cursor

You can display up to two cursors on the graph simultaneously.
Use the first cursor to display individual data recording values, to select a curve or to
reveal the hidden Y-axis.
Use two cursors to display the difference between two coordinate values or to select
a range of data points.
To display the first cursor:
st
Tap an individual data point on the graph or tap 1 Cursor on the graph toolbar.
You can drag the cursor with the stylus onto any other point on the plot, or onto a
different plot. For finer cursor movements use the forward and backward
tools on the graph tool bar.
The coordinate values of the selected point will appear at the bottom of the graph
window.
58 Chapter 3 Working with Pocket PC
