2. Click Analysis on the menu bar, then click Timing Wizard to open
step 1 of the Timing wizard dialog:
3. Click an option to select measurement: Time, Velocity or
Acceleration
4. Click Next to move to step 2:
5. Click an option to select the measuring method
6. If required enter the body's width, or the distance between the gates
in cm in the appropriate edit box (in velocity and acceleration
measurements only)
7. Click Finish to display the results
8. If you want to change the method or measurement, click Back to
return to the Timing wizard. To exit the Timing wizard click OK

3.Measuring methods

The Timing wizard offers you various methods of analyzing the different
measurements. In some measurements you will be asked to enter the dimension of
132 Chapter 4 Working with a desktop computer

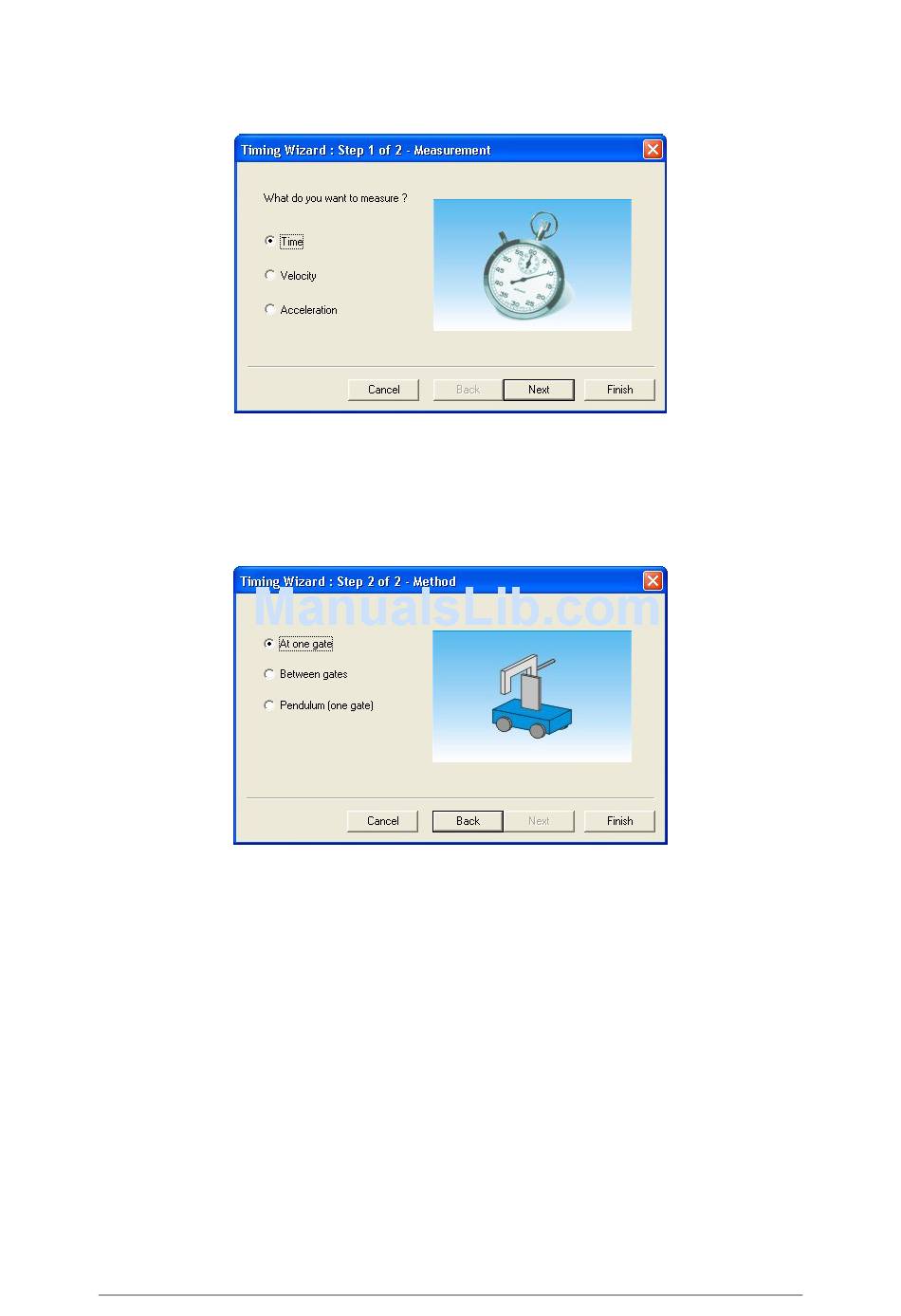

Figure 25: Timing Wizard – Measurement
Figure 26: Timing Wizard – Method
