3. Select the desired recording rate in the Select rate drop list
4. Select the Scroll option if you want the graph window to scroll as the
data recording progresses
5. Select the desired data recording mode in the Select recording
mode drop list
6. Click Next to move to the third step:
7. Select the desired length of the recording period in the Select
recording time drop list
The recording period is displayed as a unit of time by default. To
display the recording period as the number of recording samples,
select the By samples option. The number of samples is calculated
with the following formula:
Total recording samples
8. To start the data recording only when a specific time or
measurement condition has been met click Triggering to open the
triggering dialog box (see page 102)
9. Click Finish to complete the setup and to send the setup command
to the TriLink

2. Define sensor properties

Some of the sensors can produce more than one measurement. For example, the
distance sensor measures distance, but MultiLab also calculates the velocity and
acceleration of the measured body in real time. MultiLab automatically displays the
basic measurement of distance, but enables you to display any combination of
distance, velocity and acceleration. Other sensors may only give one measurement,
but can display the data in different units. For example, the acceleration sensor can
display the acceleration in multiples of the gravity acceleration, or in the standard unit
m
.
2
s
100 Chapter 4 Working with a desktop computer

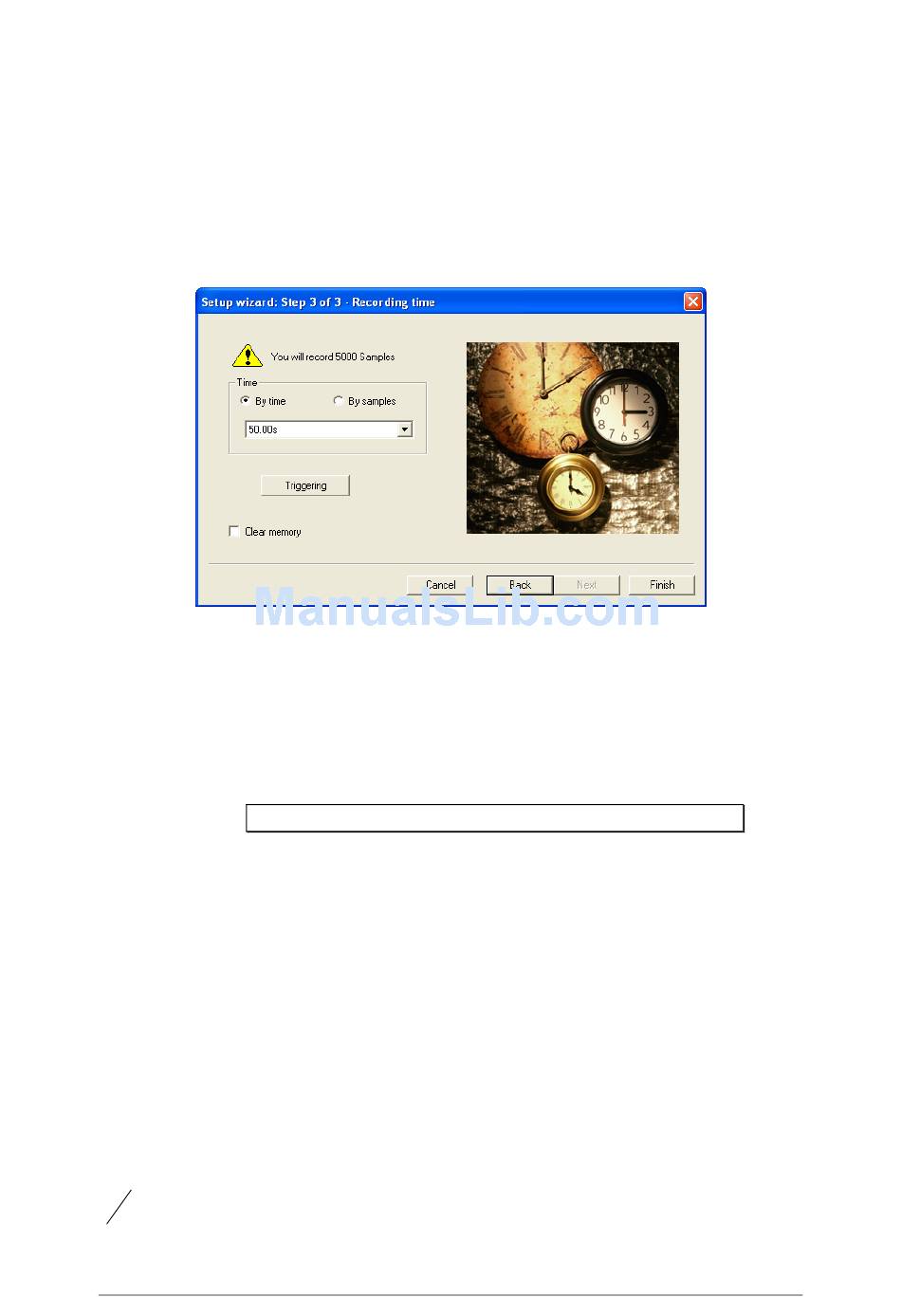

Figure 11: Setup wizard step 3 of 3
Recording rate
=
× Recording period
