3.6. Analyze the Data

3.6.1.

Reading Data Point Coordinates

Position the cursor (see page 58) on a point to display its coordinates at the bottom
of the graph window.
3.6.2.

Reading the Difference between Two Coordinate Values

Position one cursor on the first point and a second cursor on the second point to
display the difference between the two coordinate values at the bottom of the graph
window
3.6.3.

Working with the Analysis Tools

The analysis tools can only be applied to data sets that are displayed in the graph
window.
1. Use the cursors (see page 31) to select the graph and the data
range to which you want to apply the analysis.
2. Select the analysis function you wish to use.
The analysis function will be added onto the graph.
To apply an analysis function:

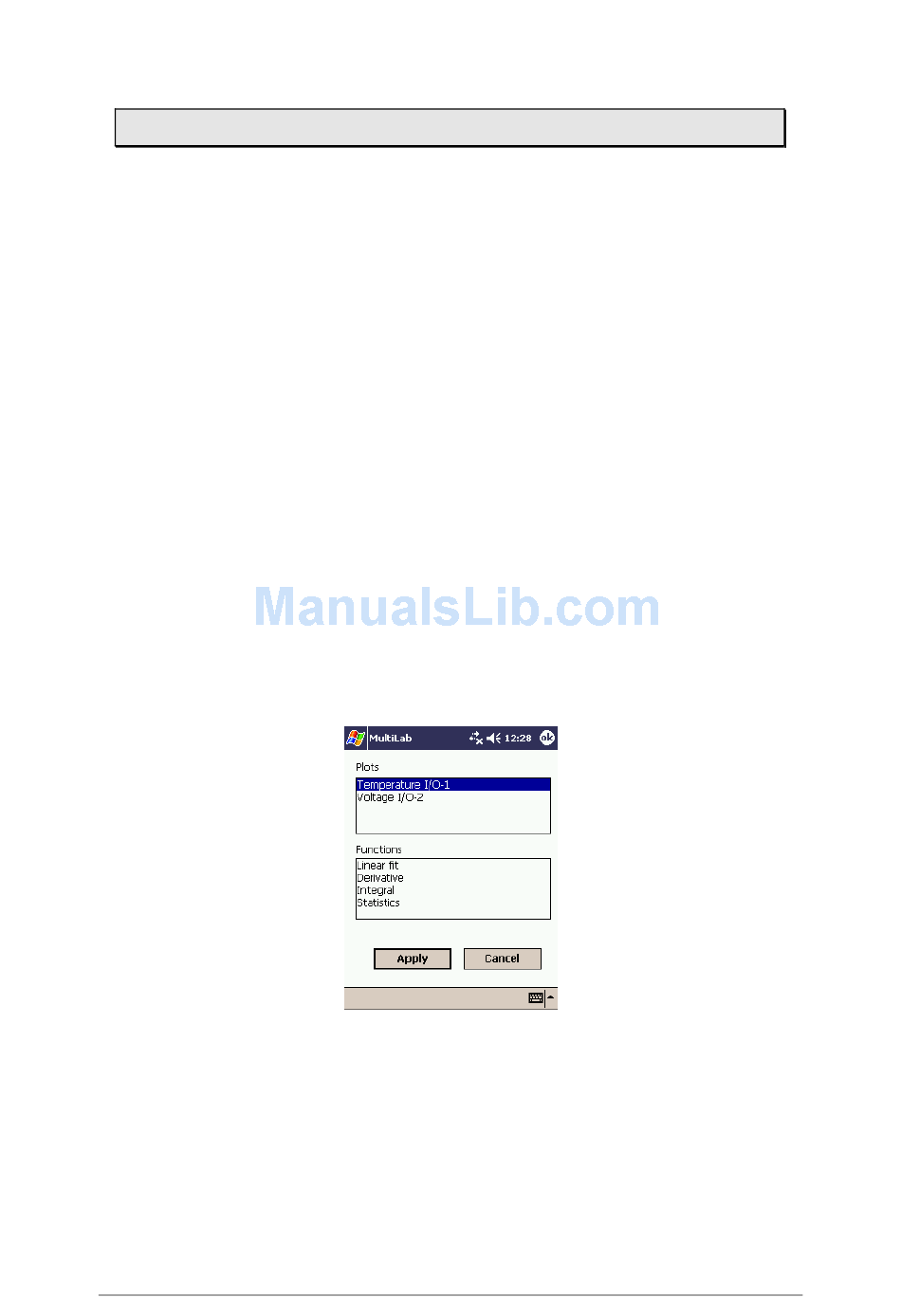

3. Tap Tools on the menu bar, then tap Analysis to display
the Analysis dialog:
4. If you have not selected a plot with the cursor tap the
desired plot in the Select plot list
5. Tap a function in the Function list
6. Tap Apply
MultiLab will add the analysis function onto the graph.
Chapter 3 Working with Pocket PC 65
