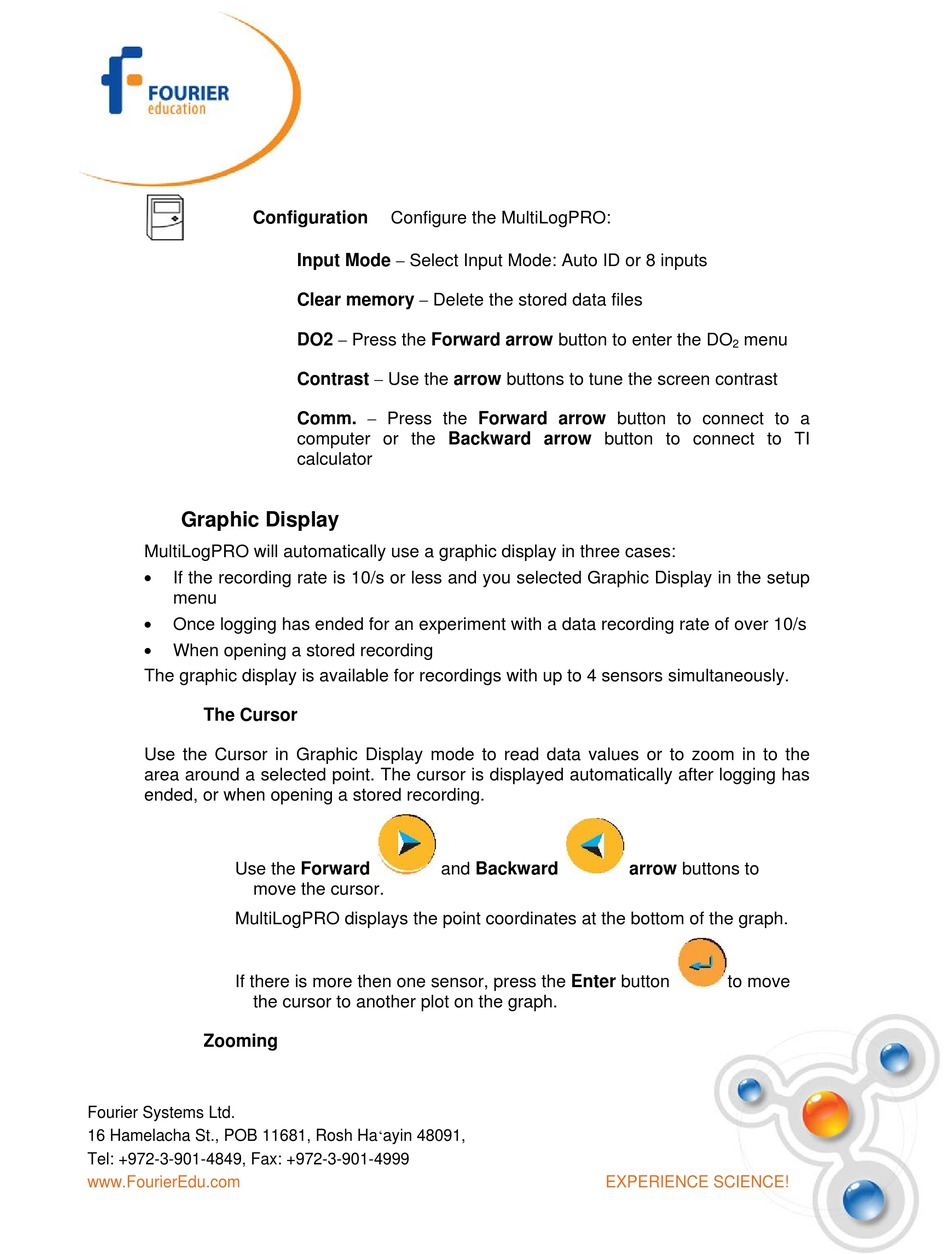

Graphic Display; The Cursor; Zooming - Fourier MultiLogPRO User Manual

Configuration

Graphic Display

MultiLogPRO will automatically use a graphic display in three cases:

If the recording rate is 10/s or less and you selected Graphic Display in the setup
menu

Once logging has ended for an experiment with a data recording rate of over 10/s

When opening a stored recording
The graphic display is available for recordings with up to 4 sensors simultaneously.

The Cursor

Use the Cursor in Graphic Display mode to read data values or to zoom in to the
area around a selected point. The cursor is displayed automatically after logging has
ended, or when opening a stored recording.
Use the Forward
move the cursor.
MultiLogPRO displays the point coordinates at the bottom of the graph.
If there is more then one sensor, press the Enter button
the cursor to another plot on the graph.

Zooming

Fourier Systems Ltd.
16 Hamelacha St., POB 11681, Rosh Ha'ayin 48091,
Tel: +972-3-901-4849, Fax: +972-3-901-4999
www.FourierEdu.com
Configure the MultiLogPRO:
Input Mode – Select Input Mode: Auto ID or 8 inputs
Clear memory – Delete the stored data files
DO2 – Press the Forward arrow button to enter the DO
Contrast – Use the arrow buttons to tune the screen contrast
Comm. – Press the Forward arrow button to connect to a
computer or the Backward arrow button to connect to TI
calculator
and Backward
menu
2
arrow buttons to
to move
