1.6
Exploded Diagram
Table 1.3: Part List
1
Heat sink
2
Chassis-U
3
I/O cover
4
Motherboard
ITA-3650E Series User Manual

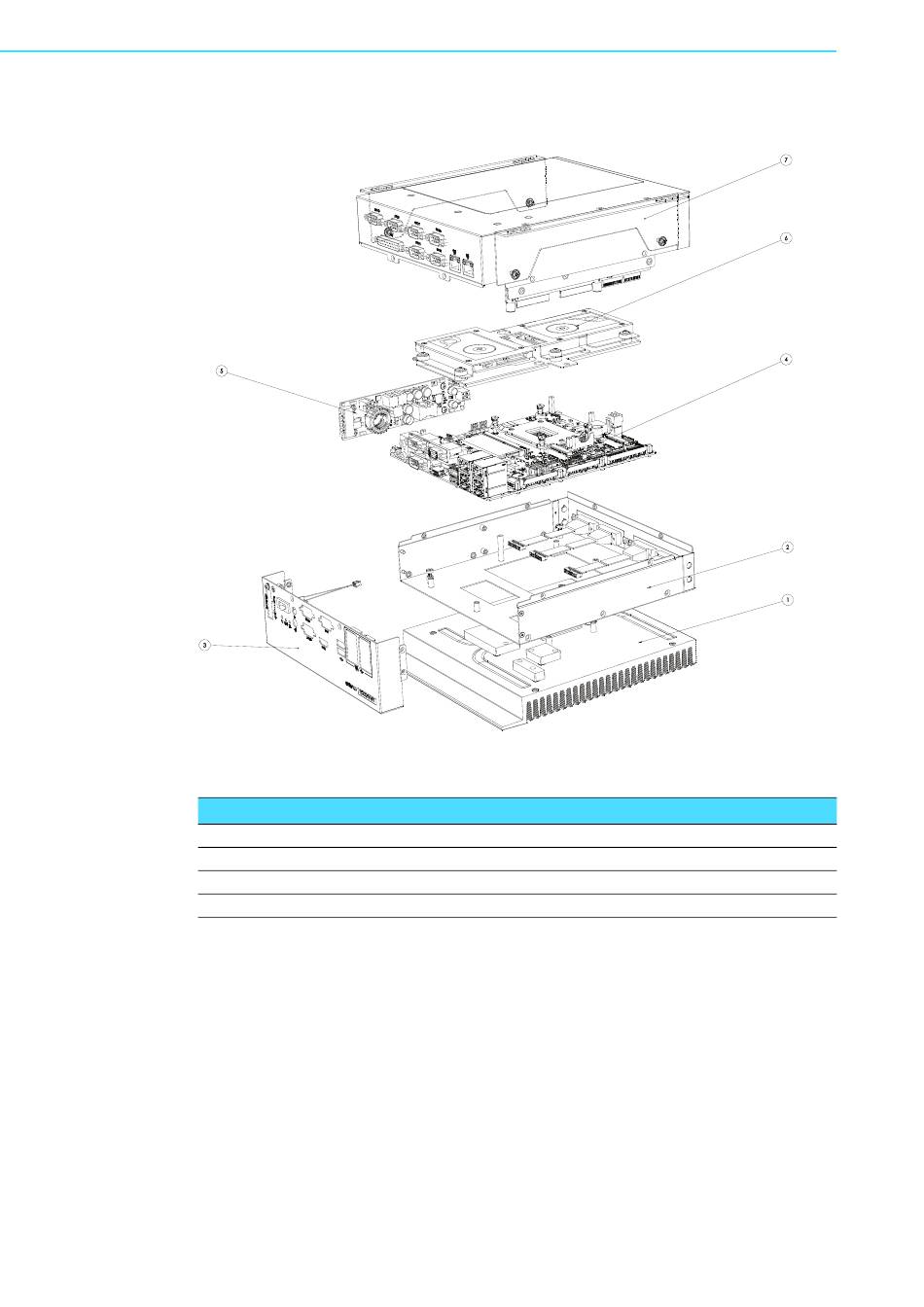

Figure 1.2 Exploded Diagram of ITA-3650E
5
6
7
4
Power board
HDD module
Expansion module
Table of
Contents
Previous
Page
Next
Page
