2.4.8

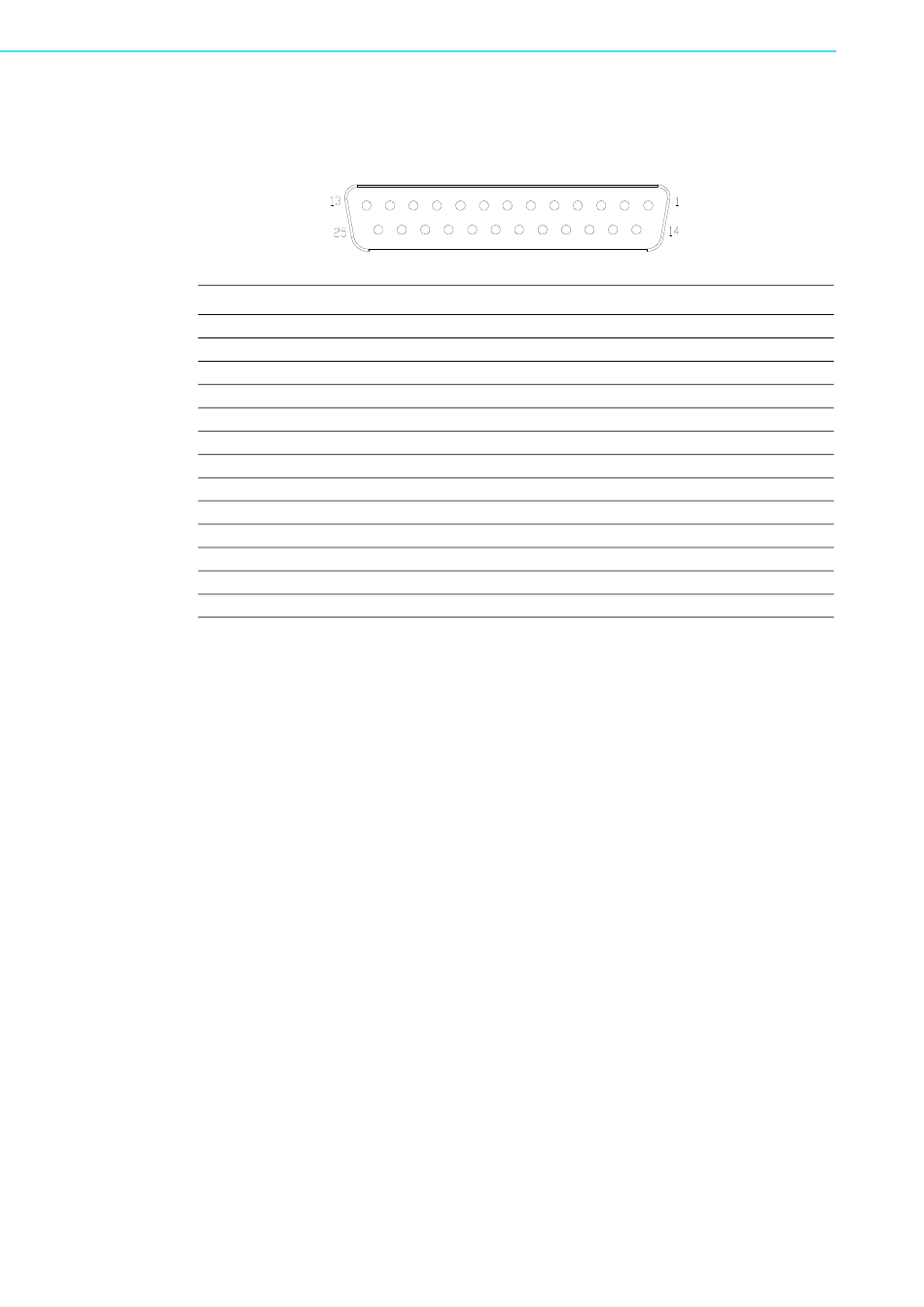

LPT Connector

ITA-3650E-00A1 provides an LPT connector, which could connect a printer through
cables.
Pin Signal Name
1 LPT_z_STB#
2 LPT_z_PD0
3 LPT_PD1
4 LPT_PD2
5 LPT_PD3
6 LPT_PD4
7 LPT_PD5
8 LPT_PD6
9 LPT_PD7
10 LPT_ACK#
11 LPT_BUSY
12 LPT_PE
13 LPT_SLCT
ITA-3650E Series User Manual
Pin Signal Name
14 LPT_AFD#
15 LPT_ERR#
16 LPT_INIT#
17 LPT_SLIN#
18 GND
19 GND
20 GND
21 GND
22 GND
23 GND
24 GND
25 GND
26 NC
