Exploded Diagram - Advantech ITA-3650T Series User Manual

1.6

Exploded Diagram

5
3
Table 1.3: Parts List
Item Description
1 Heatsink
2 Chassis-U
3 I/O cover
4 Motherboard

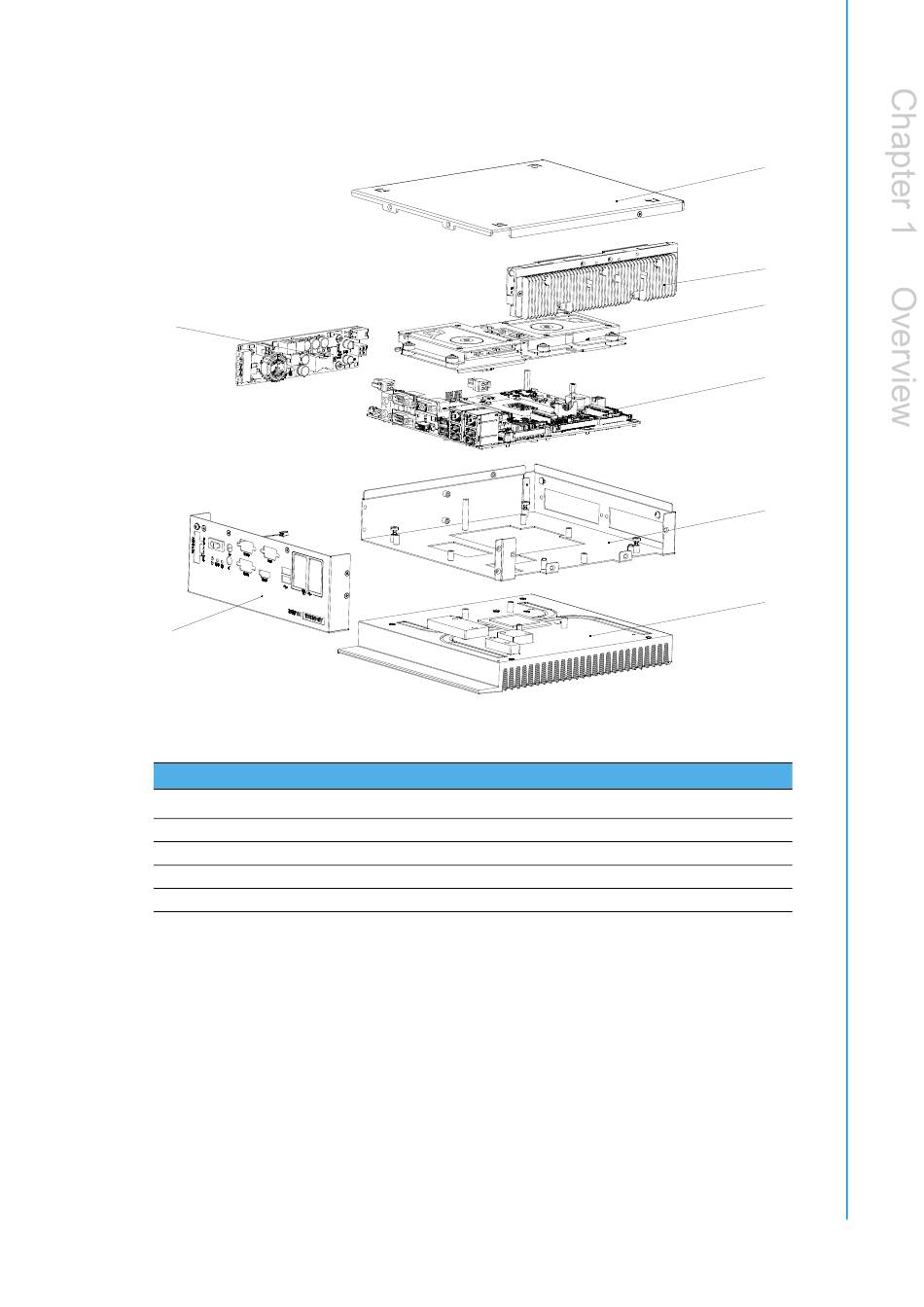

Figure 1.2 ITA-3650T Exploded Diagram
Item
5
6
7
8
5
Description
Power board
HDD module
M.2 and mini PCIe module
Top cover
ITA-3650T Series User Manual
8
7
6
4
2
1
