Appendix B Exploded Diagrams

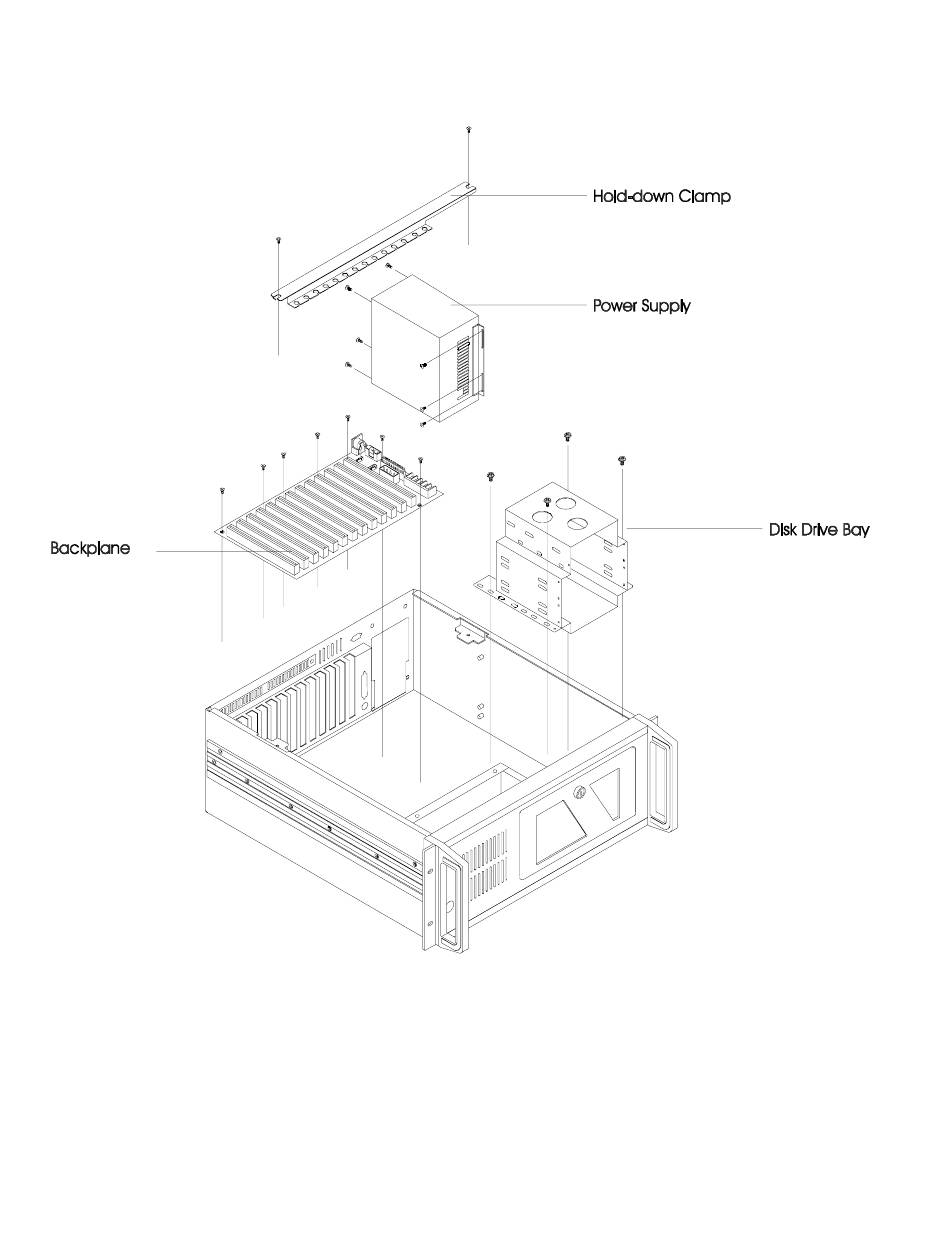

Figure B-1: IPC-610 exploded diagram (internal components)
10
IPC-610 User's Manual
