Advantech ITA-2111 Startup Manual

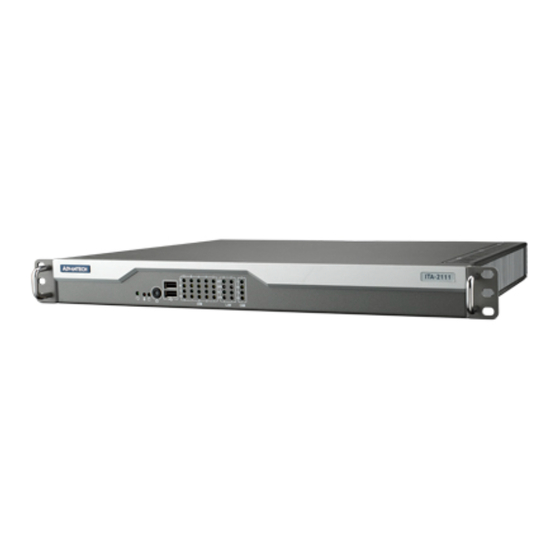

ITA-2111 Intel® Atom™ E3845 Fanless 1U Rackmount
Startup Manual
Packing List
Before installing the board, please ensure that the following
items have been shipped:
1. 1 x ITA-2111 IPC
2. 1 x ITA-2111 Accessory Box
3. 1 x ITA-2111 Warranty Card
If any of the above items are missing or damaged, please
contact your distributor or sales representative immediately.
Note: Adobe Acrobat Reader is required to view PDF
files. Adobe Acrobat Reader can be downloaded at www.
adobe.com/Prodindex/acrobat/readstep2.html (Acrobat is a
trademark of Adobe).
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://support.advantech.com.tw/support/default.
aspx
This manual is for the ITA-2111 Series.
Part No. 2001211110
Printed in China
Standard Function
• Chip & Chipset: Intel Atom™ E3845 processor
• BIOS: AMI SPI 64 Mb
• Memory: Onboard DDR3L 1333 up to 4GB
• Display:
• Dual display mode:
• Storage:
• Expansion slot:
System Specifications
• Ethernet: 4 x 10/100/1000M Ethernet
• USB: 1 USB 3.0, 6 USB 2.0
• DVI: 1 x VGA, 1 x DVI-D
• Serial port: 2 x DB9 ports, 8 x 20pin terminal block,
• CAN Port: 2 x CAN
• PS/2: 1 x PS/2
• Audio: 1 Speaker Out (supports 2x4W Amp),1 Mic-in
Mechanical and Environment
• Dimensions (W x H x D): 427 x 44 x 325 mm
• Voltage input: AC 100-240 or DC 110V
• Working temperature:
• Weight: 7.7 kg
1st Edition
February 2016
Specifications
Intel Gen 7, Frequency 542 MHz,
Shared system memory up to 256 MB SDRAM
Resolution of single display up to VGA 2560x1600, DVI
1920x1200, 1 x VGA, 1 x DVI-D
- 1 x 3.5"HDD or 2 x 2.5"HDD
- 1 x Full Size mSATA
- 1 x PCI104
- 1 x Mini PCIe slot
support RS-232/422/485
- 0 -40° C (32 ~ 104° F , with HDD)
- 25 - 60° C (-13 ~ 140° F, with SSD)
ITA-2111 Startup Manual 1
