3.1
簡介
以下步驟將指導使用者組裝 ITA-3650E 中的各個模組。
3.1.1
安裝主機板 M-SATA 卡
ITA-3650E 主機板端前部有一 M-SATA 卡槽，將 M-SATA 卡直接裝入即可。
ITA-3650E 系列用戶手冊

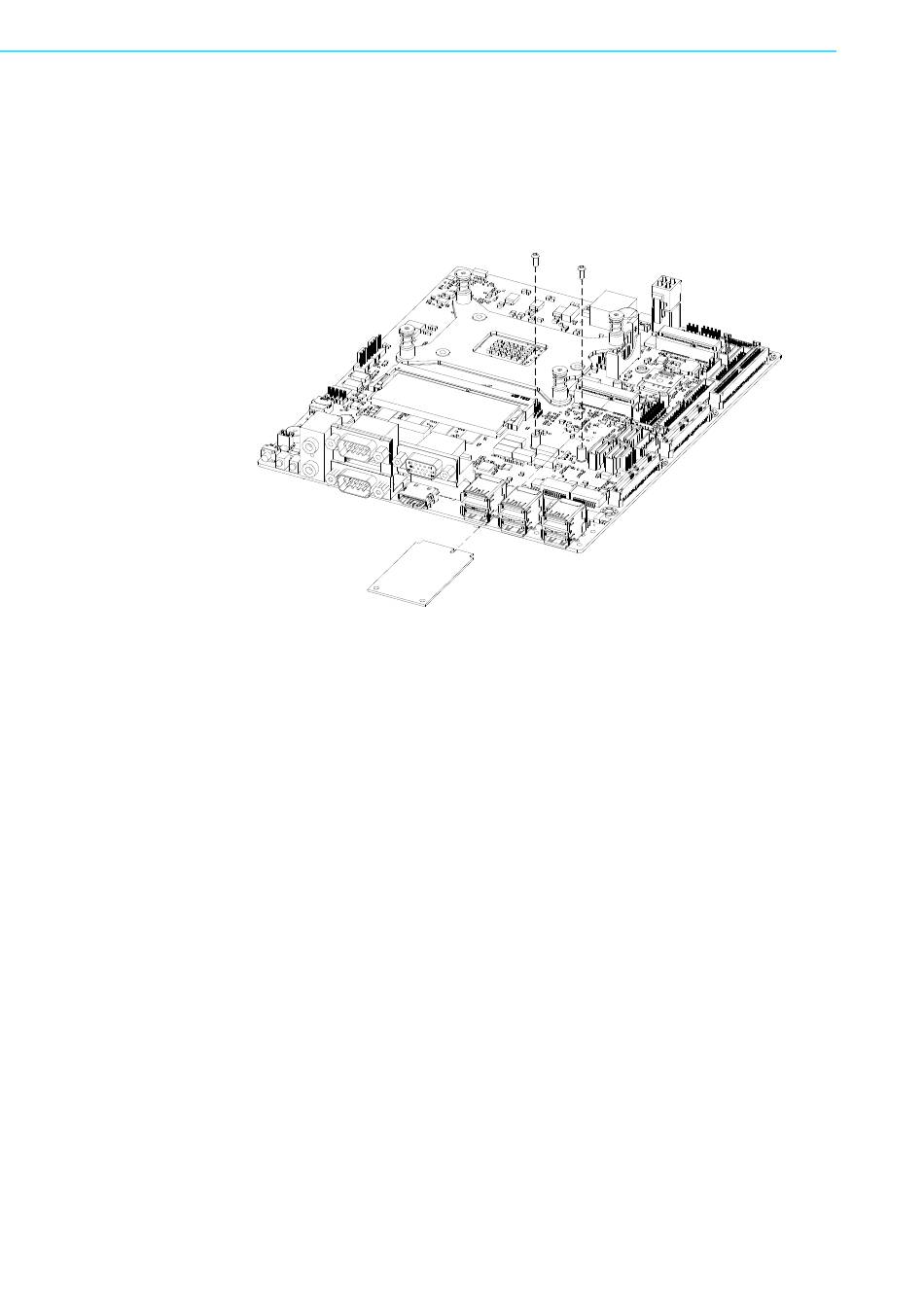

图 3.1： 安裝主機板 M-SATA 卡
