Jumper And Connector Location - Advantech ITA-3650E Series User Manual

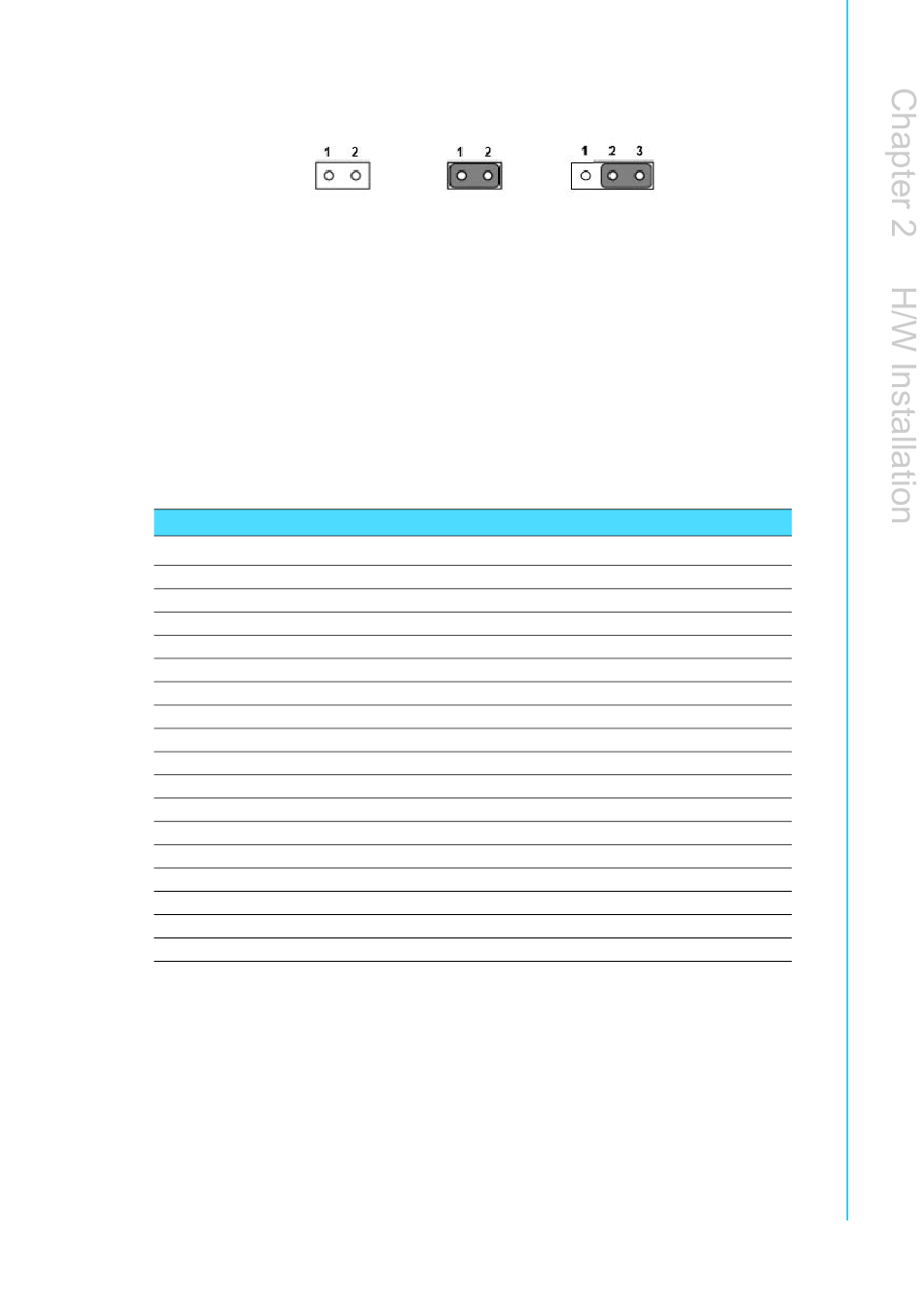

The jumpers settings are schematically depicted as follows.
A pair of needle-nose pliers may be helpful when working with jumpers. If you have
any doubts about the best hardware configuration for your application, contact your
local distributor or sales representative before you make any changes. Generally, you
simply need a standard cable to make most connections.
2.3.2

Jumper and Connector Location

The board has a number of connectors and jumpers that allow you to configure your
system to suit your application. The table below lists the function of each of the con-
nectors and jumpers.The locations of jumpers and connector on the board are shown
in Fig 2.3 and Fig 2.4.
Table 2.1: Jumpers and Connectors
Label
JCMOS1
AMPL1
AMPR1
PSON1
VCCGPIO1
SATA1
SATA2
SATA3
SATA_PWR1
SATA_PWR2
DP1
LPT1
USB1
COM3456
KBMS
M-SATA
MiniPCIe
Open Closed
断开 闭合
Function
Clear CMOS settings
L sound channel amplifier switch
R sound channel amplifier switch
AT/ATX mode selection
GPIO voltage selection
SATA data interface 1
SATA data interface 2
SATA data interface 3
SATA power interface 1
SATA power interface 2
DP digital display interface 1
LPT interface
USB interface 1
COM port interface
Keyboard/mouse
M-SATA storage card interface
MiniPCIe module interface
7
2-3 Closed
闭合 2-3
ITA-3650E Series User Manual
