3.1.4
Installing the Top Cover
Please follow the below procedures to install chassis top cover.
1.
Insert the top cover on the chassis front panel from the opening point and place
it as shown below. (See Figure 3.4)
2.
Fix the chassis top cover with four screws.
3.1.5
Installing the Mounting Bracket
Align the 2 mounting brackets with the screw holes on the chassis side panel, and
secure them with the screws supplied. Top and bottom installation are both sup-
ported. (See Fig 3.5)

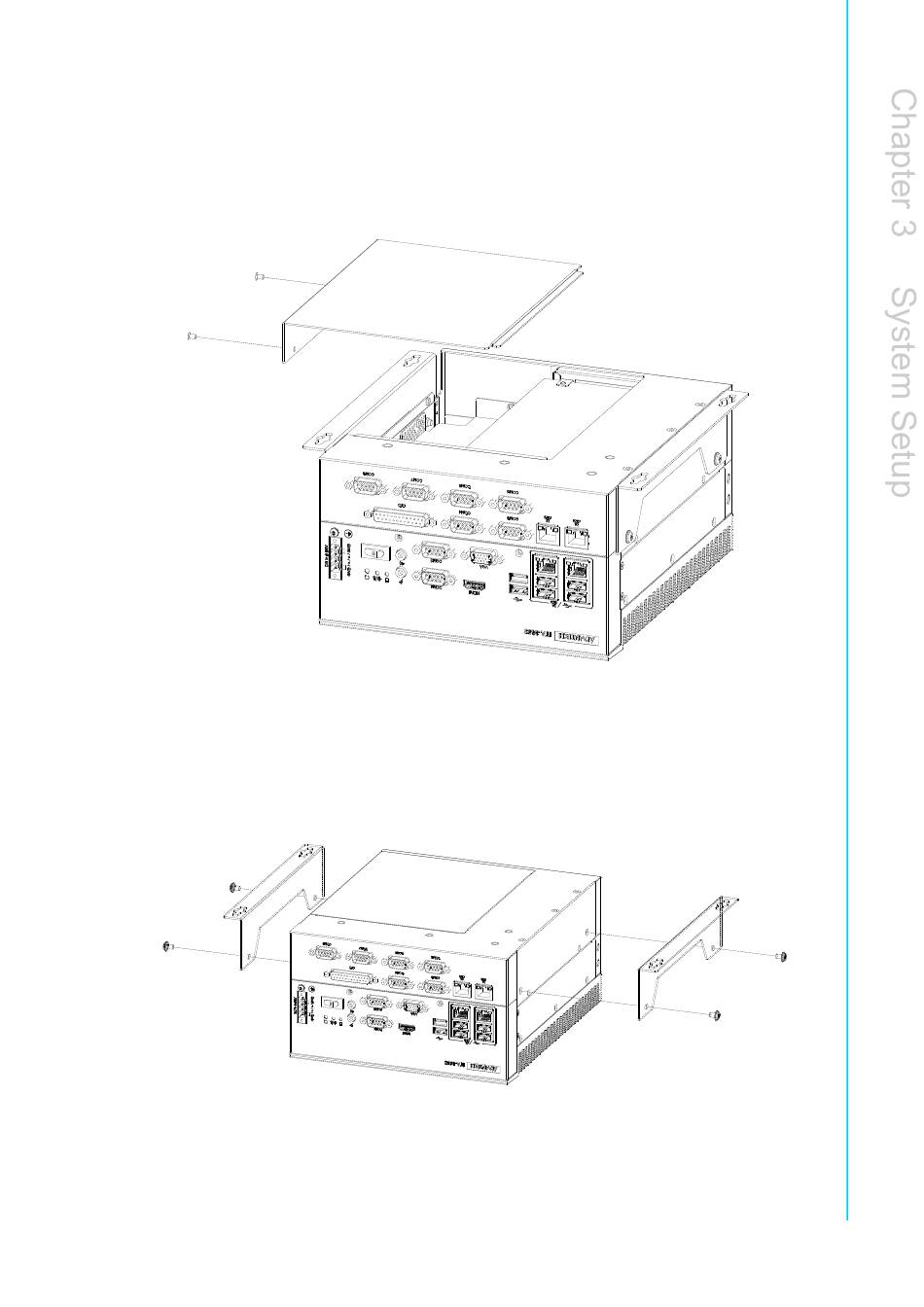

Figure 3.4 Installing the Top Cover
19
ITA-3650E Series User Manual
