3.1.6
安裝 I/O 擴展模組
請按照下面步驟安裝 I/O 擴展模組。
1.
將 I/O 擴展模組周邊 8 顆螺絲拆下，並往上拔出模組。
2.

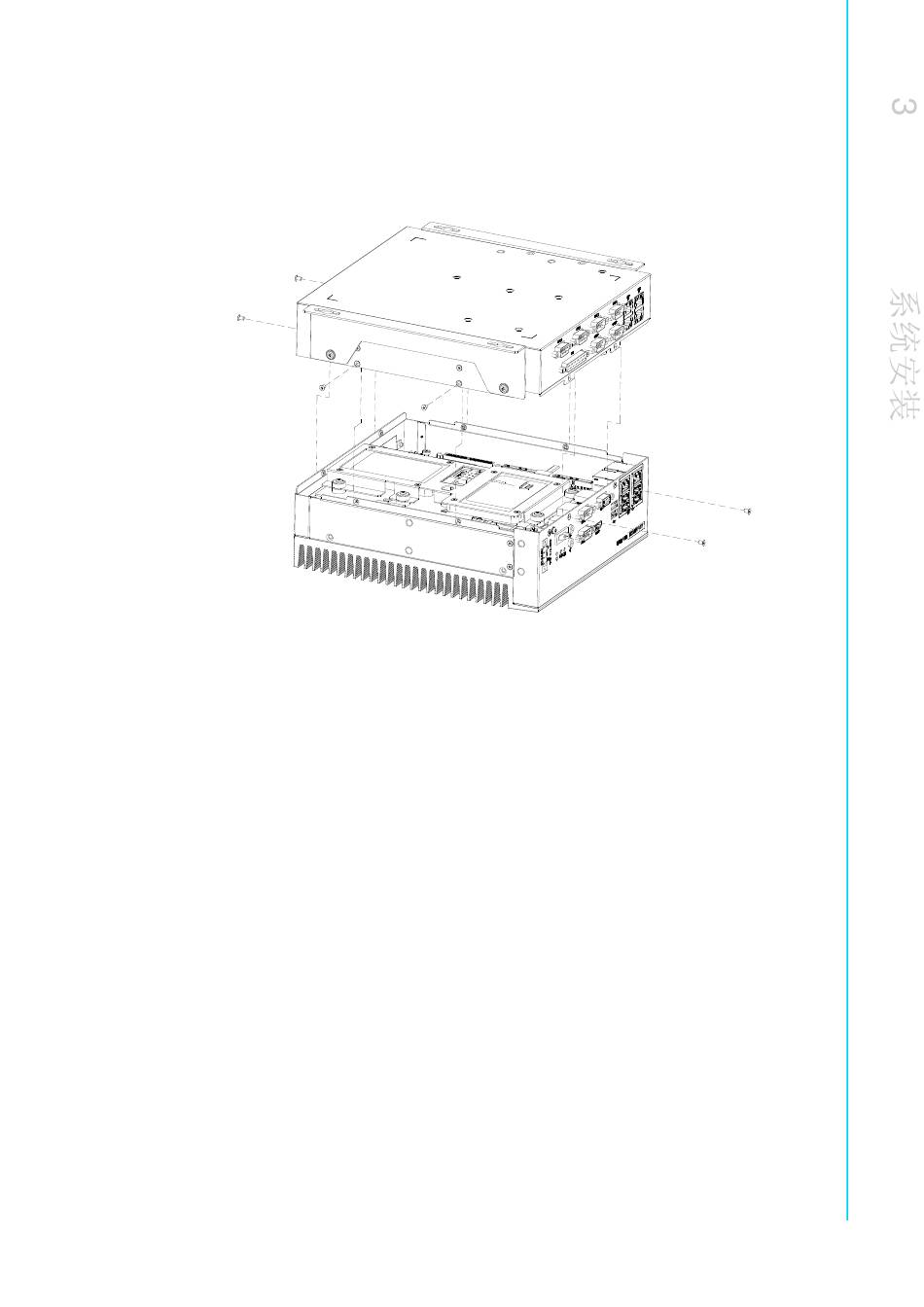

按照圖 3.6 所示方向將 I/O 擴展模組安裝回底座，再將螺絲擰緊。
图 3.6： 安裝模組
21
ITA-3650E 系列用戶手冊
