3.1.6

Installing Expansion Module

Please follow the below steps to install a CF card module.
1. Loosen the eight screws in the I/O expansion module.
2. Install the I/O expansion module on the base chassis according to Figure 3.6.

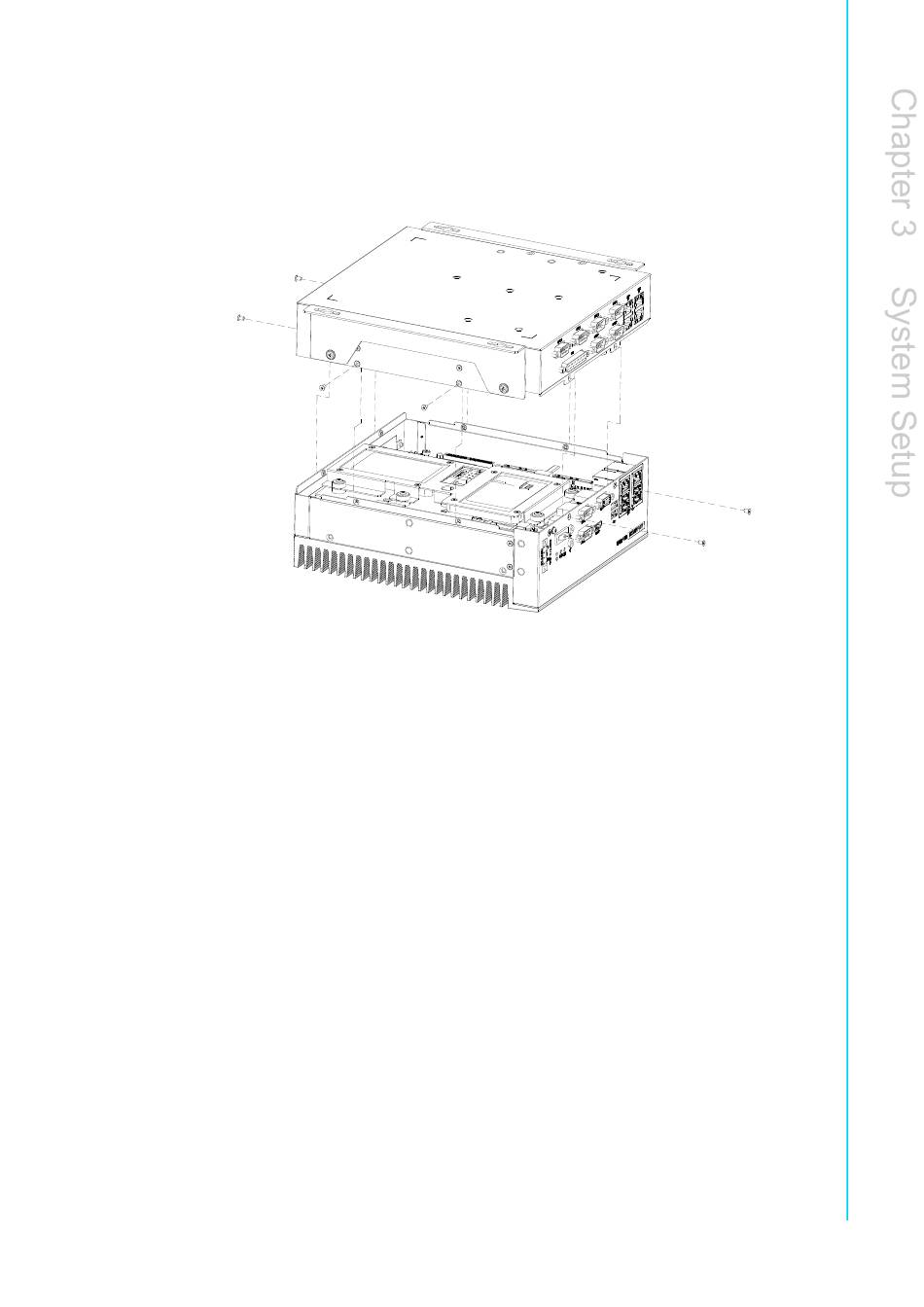

Figure 3.6 Installing an expansion Module
21 ITA-3650E Series User Manual
