Installing the HDD Module
ITA-3650E reserves the space for installing a 2.5" HDD module. Please refer to the
following instructions to install the HDD.
1.
Place the HDD into 2.5" HDD holder, and lock it with 4 screws.
2.
The HDD holder has seven semi-circles on both sides, which are used to place
rubber cushions.
3.
Place the HDD holder onto HDD bracket, and secure it with seven screws.
4.
Connect the complete HDD module to the chassis and fix it with six screws.
5.
Stick the cooling pad onto the PCB panel of HDD. Align the cooling pad with the
magnetic head to protect the head from being covered.
ITA-3650E Series User Manual

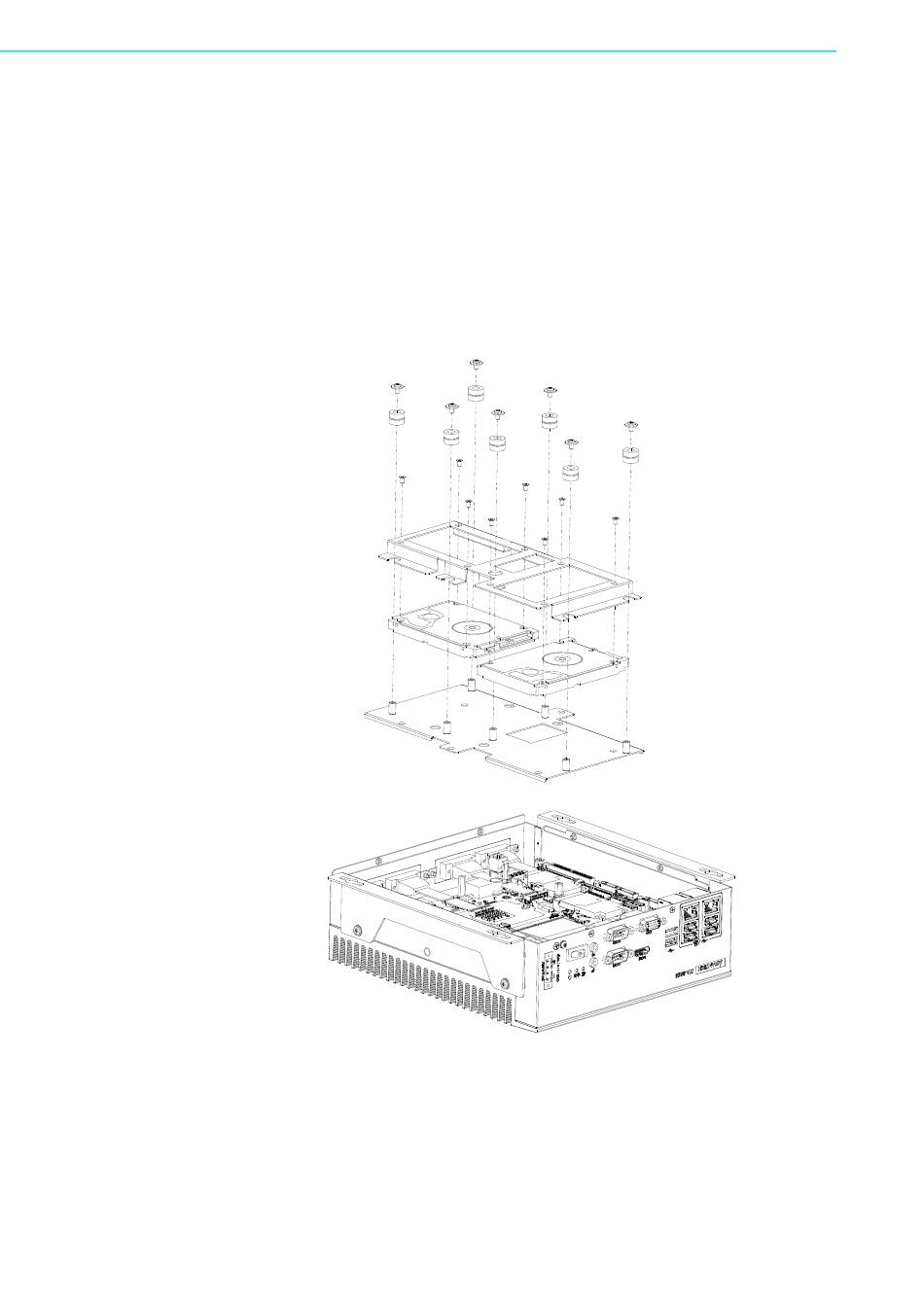

Figure 3.3 Installing the HDD Module
18
