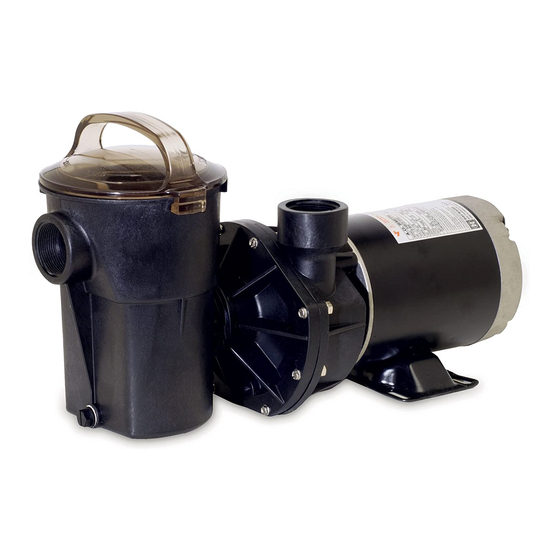

PowerFlo LX
Basic safety precautions should always be followed, including the following: Failure to follow instructions can
cause severe injury and/or death.
This is the safety-alert symbol. When you see this symbol on your equipment or in this manual, look for
one of the following signal words and be alert to the potential for personal injury.
WARNING warns about hazards that could cause serious personal injury, death or major property
damage and if ignored presents a potential hazard.
CAUTION warns about hazards that will or can cause minor or moderate personal injury and/or property
damage and if ignored presents a potential hazard. It can also make consumers aware of actions that are
unpredictable and unsafe.
The NOTICE label indicates special instructions that are important but not related to hazards.
/ PowerFlo II
™
Pump Series
Owner's Manual
INSTALLATION, OPERATION, & PARTS
IMPORTANT SAFETY INSTRUCTIONS
Hayward Pool Products
620 Division Street, Elizabeth, NJ 07207
Phone: (908) 355-7995
www.haywardnet.com
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
/ EP
™
Contents
Product Warnings...................2
Installation..............................4
Start-Up & Operation..............6
Shaft Seal Replacement..........7
Troubleshooting.......................8
Replacement Parts..................10
Warranty ...................................11
Registration...............................12
ISPFSERIES Rev G
1
Advertisement
Table of Contents
Related Manuals for Hayward SP1580
Summary of Contents for Hayward SP1580
-
Page 1: Table Of Contents
It can also make consumers aware of actions that are unpredictable and unsafe. The NOTICE label indicates special instructions that are important but not related to hazards. Hayward Pool Products 620 Division Street, Elizabeth, NJ 07207 Phone: (908) 355-7995 www.haywardnet.com USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... -
Page 2: Product Warnings
RNING ad and follo ow all instr ructions in t this owner’s manual and o on the equip ment. Failure to follow instructions can cause se evere injury a nd/or death. RNING – Suc ction Entrapm ment Hazard. Suction in s suction outlets and/or suction n outlet covers w... - Page 3 Do not use with storable pools. A permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity. SAVE THESE INSTRUCTIONS USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
-
Page 4: Installation
AWAY from pump. NEVER use suction pipe SMALLER than pump suction connections. Suction pipe inlet must be lower than pump inlet port. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... - Page 5 In case of a power outage, check GFCI for tripping, which will prevent normal pump operation. Reset if necessary. NOTE: If you do not use conduit when wiring motor, be sure to seal wire opening on end of motor to prevent dirt, bugs, etc., from entering. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
-
Page 6: Start-Up & Operation
2. Remove drain plug from bottom of strainer body. 3. Disconnect pump from base. 4. Once the pump is removed of water, re-install the strainer lid and strainer plug. 5. Store pump in a dry enclosure. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... -
Page 7: Shaft Seal Replacement
– A. Disconnect all electrical power service to pump before beginning shaft seal replacement. B. Only qualified personnel should attempt rotary seal replacement. Contact your local authorized Hayward Dealer or service center if you have any questions. C. The National Electrical Code requires either a three (3) foot maximum twist-lock cord set with a GFCI protected receptacle or hard wire (conduit) connection for swimming pool pump installation. -
Page 8: Troubleshooting
3. Mechanical binding and electrical overload. NOTE: Your Hayward pump motor is equipped with an “automatic thermal overload protector.” The motor will automatically shut off if power supply drops before heat damage can build up causing windings to burn out. The “thermal overload protector”... - Page 9 Clean strainer basket regularly. Do NOT strike basket to clean. Inspect strainer cover gasket regularly and replace as necessary. Hayward pumps have self-lubricating motor bearings and shaft seals. No lubrication is necessary. Keep motor clean. Insure air vents are free from obstruction.
-
Page 10: Replacement Parts
Motor (for SP1775) - 3/4 HP ---- ---- SPX1510Z1E* Motor (for SP1780) - 1 HP ---- ---- SPX1510Z1XE* Motor (for SP1580) - 1 HP ---- SPX1510Z1XE ---- Motor (for SP1580X15) - 1-1/2 HP ---- SPX1515Z1E ---- Motor (for SW1585X20) - 2 HP... -
Page 11: Warranty
The express limited warranty above constitutes the entire warranty of Hayward Pool Products with respect to its’ pool products and is in lieu of all other warranties expressed or implied, including warranties of merchantability or fitness for a particular purpose. In no event shall Hayward Pool products be responsible for any consequential, special or incidental damages of any nature. -
Page 12: Registration
® ® ease include me o on all e-mail com mmunications reg arding Hayward Equipment or pr romotions. il to: Hayward d Pool Produc ts, 620 Divisio on Street, Eliz zabeth, NJ 07 Inst tallation for: Attn n: Warranty De...
