Note: Accel tests can also be defined when in the
Secondary Accel Screen
by double tapping on an existing test
range header or result.

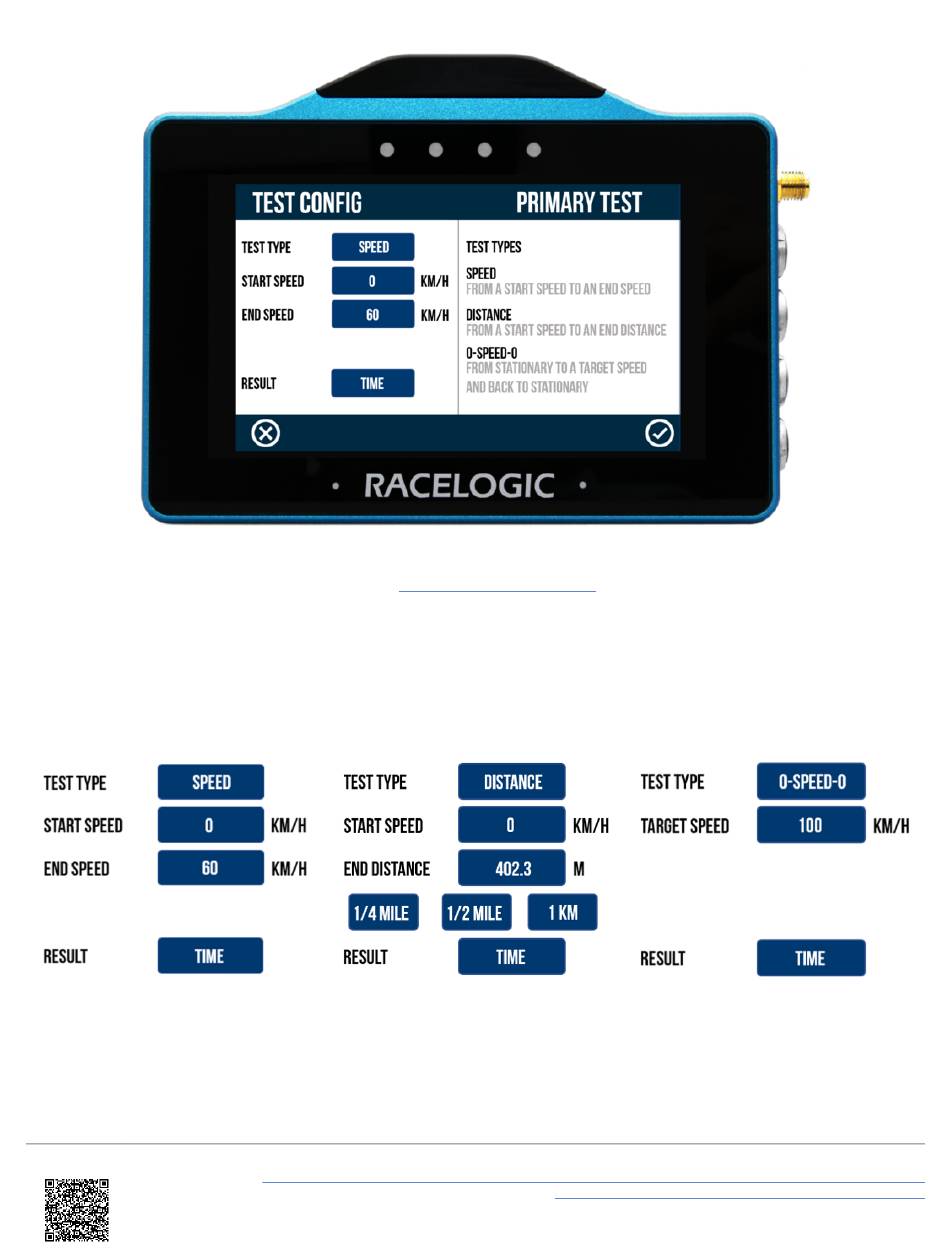

Test Type
Select the Test Type button to choose between Speed, Distance or 0-Speed-0 (e.g. 0–100–0). Parameters displayed
will depend on the test chosen.
Speed Test Parameters
Distance Test Parameters
0-Speed-0 Test Parameters
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_User_Guide/04_-
_VBOX_Touch_Display_Modes/VBOX_Touch_-_Accel_Mode
29
