Selecting Accel Tests

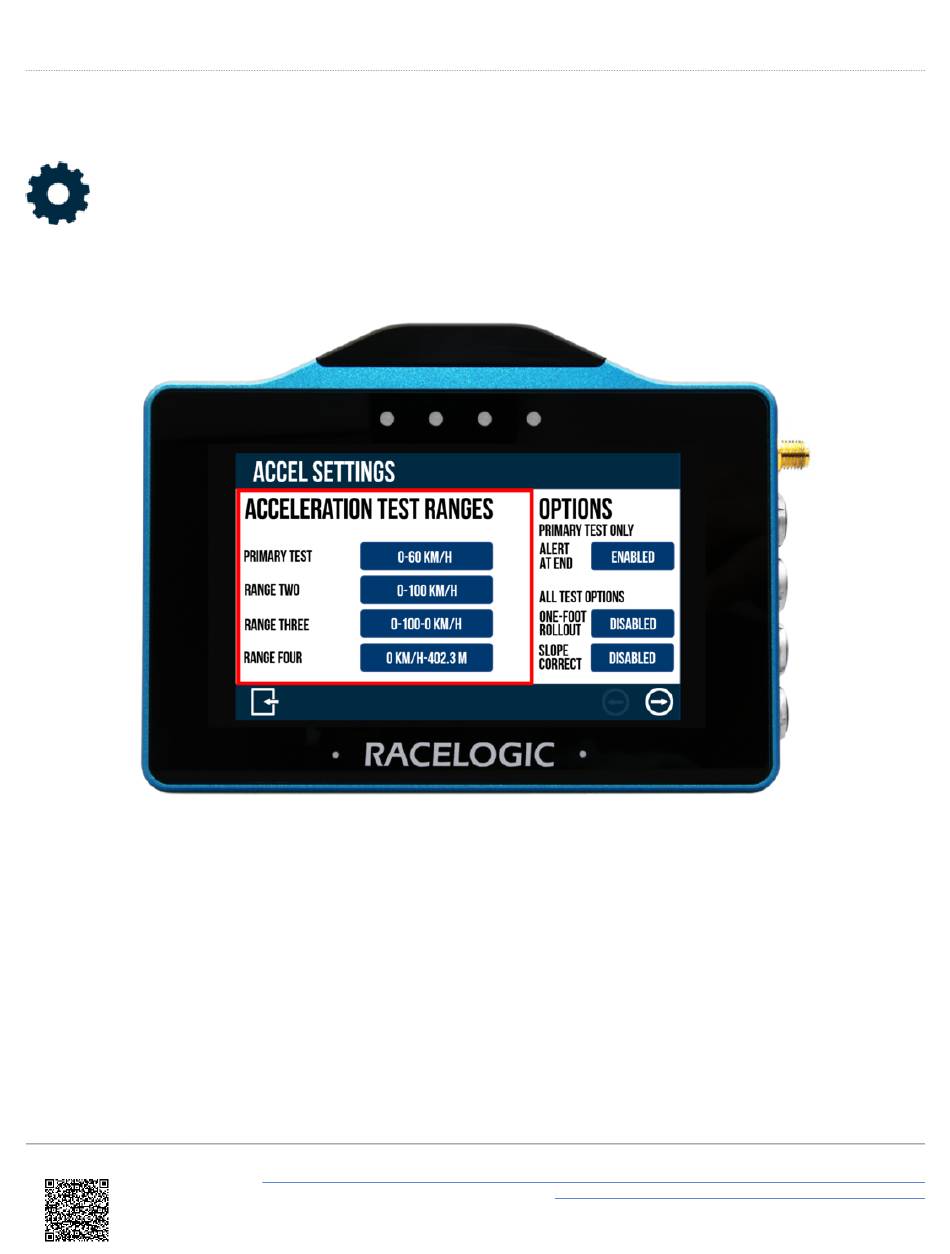

Accel Tests can be defined by pressing the Settings Button
on the bottom left of the screen and then selecting the Accel option. 4 concurrent tests can be defined, which by default
are 0–60, 0–100, 0–100–0 and 0–¼ mile.
The currently selected test ranges are presented on the left hand side of the screen and will be remembered for future
use, even if another mode is chosen.
To define a range, press on the existing parameters.
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_User_Guide/04_-
_VBOX_Touch_Display_Modes/VBOX_Touch_-_Accel_Mode
28
