Remote Box Number(s)
Number of switches (in addition to this one) in the stack. Display only.
Stack Time-out
If a switch goes off line, the length of time (in seconds) during which the stack tries
to reestablish communication with the switch. The default is 16 seconds.
Stack State
Whether the SmartStack Switch Stacker is operational (SmartStack STS-LM or
SmartStack STS-5SU). Information in this field cannot be changed.
Stack Connection
Whether the SmartStack STS-8SU Stacker Unit is connected. Information in this
field cannot be changed.

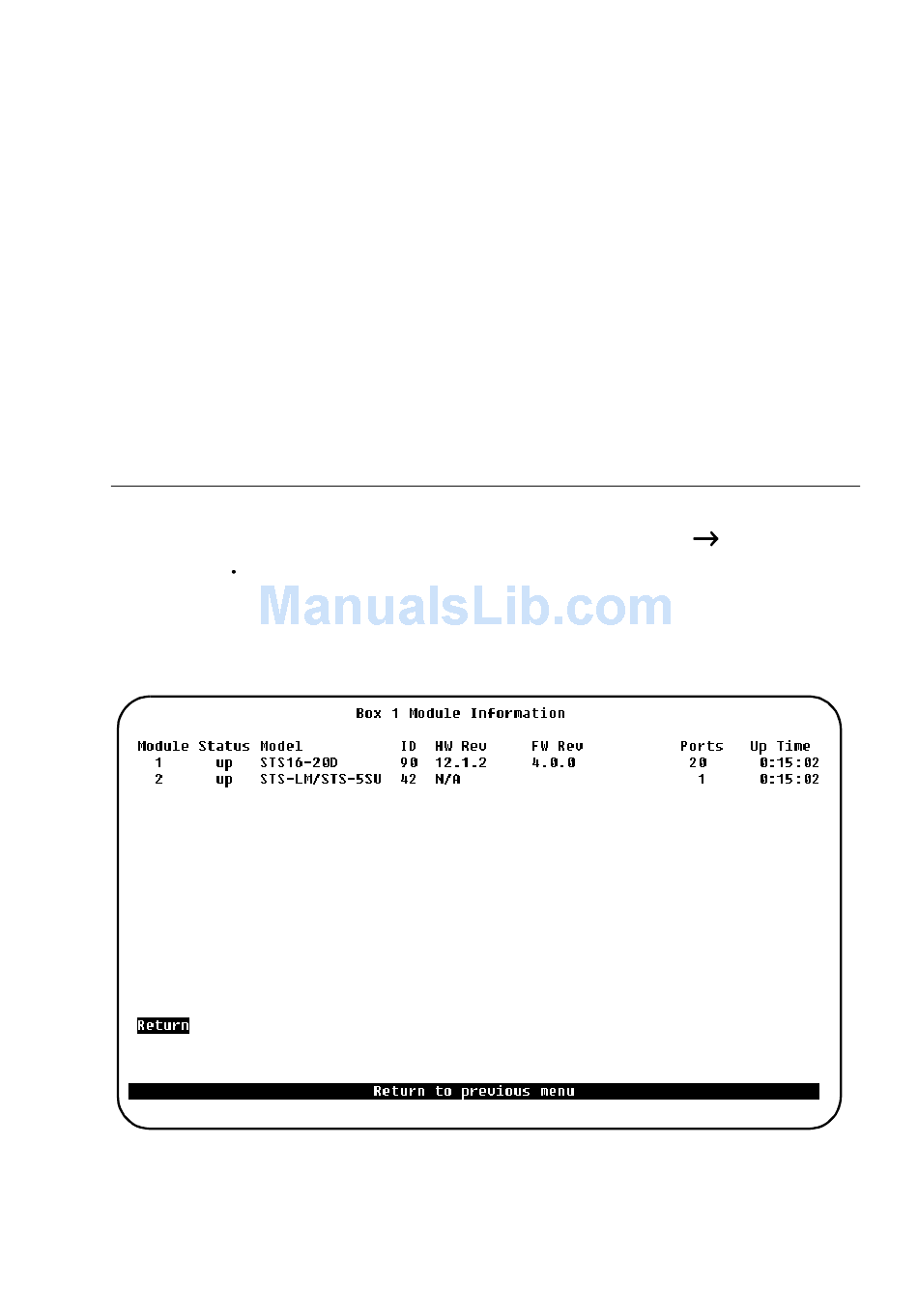

Module Information Screen

To open this screen from the main menu, select Configuration
Information
If expansion modules have been installed in the switch, this menu provides
information on them. The switch is listed as the first module.
The following information is displayed on this screen:
Module
Module number. The switch is listed as module 1. The factory installed stacker link
SmartStack STS16-20D/STS16-20R Token Ring Switches Installation and User Guide
Module
Switch Configuration
