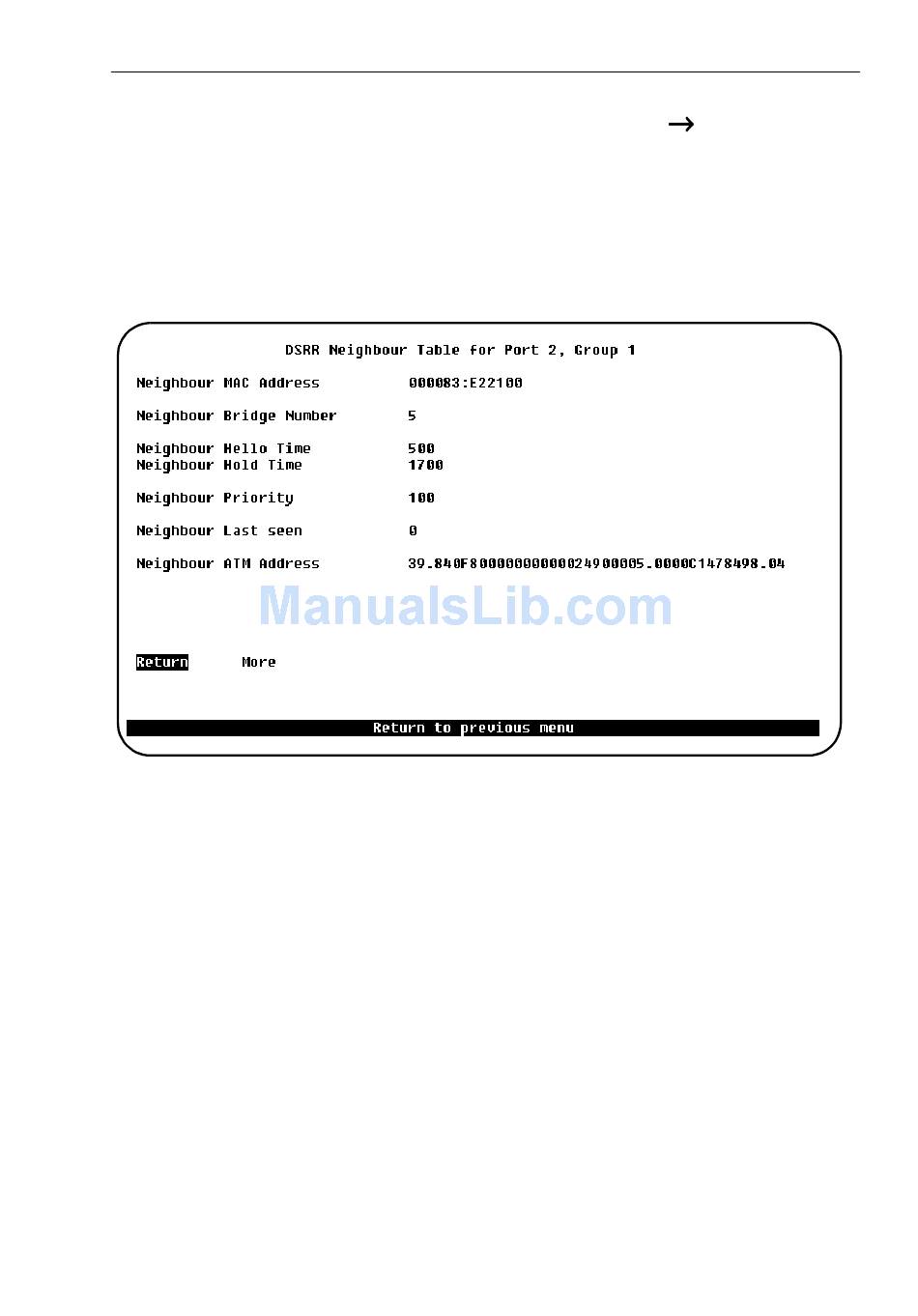

DSRR Neighbor Table Screen

Open this screen from the main menu by selecting Statistics
Then select View Neighbor. You will be prompted for the Index (Ix) value of the
group, then the screen will appear.
This screen contains a one-page entry for each switch currently participating in the
Redundancy Group, including the one on the console of which the values are
displayed.
Neighbor Last Seen
Displays the time in milliseconds since a Hello Message was last received from the
corresponding switch for the DSRR group in question. For the local switch, this
value is always displayed a zero.
More
Displays the next entry (sorted by MAC Address).
Return
Closes the screen and returns to the DSRR Status Tables screen.
SmartStack STS16-20D/STS16-20R Token Ring Switches Installation and User Guide
DSRR Status.
Monitoring the Network from the Console Statistics Menu
